HTR Hydraulic Rotary Actuators •Standard pressure: up to 210 bar •Standard rotational range of 90º, 180º and 360º •Custom rotations up to 1800° •Torque outputs to 68,000 Nm •Single and double rack models for continuous high torque •High capacity tapered roller bearings to support external loads •Options include port positions, cushioning, different seal types and mounting styles •Special designs to customer specification

Can be combined with HLE and HPLA linear actuators in a modular system Resistant aluminium telescope profile Backlash-free guidance by means of adjustable, plastic rollers mounted on roller bearings Maintenance-free, low-noise rollers Non-wearing and non-slip toothed belt drive Simple, non-critical installation and start up Long stroke (maximum 2500mm) with minimum overall height High working load up to 50kg Withstands high side loads and moments - even when extended

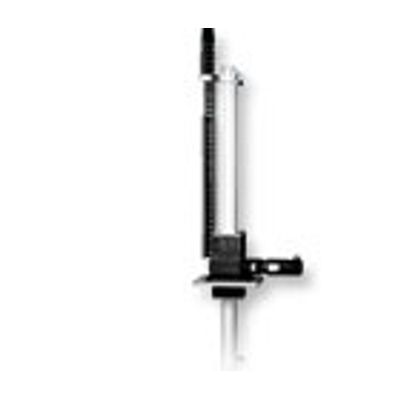

Can be combined with HLE and HPLA linear actuators in a modular system resistant aluminium telescope profile. Backlash-free guidance by means of adjustable, plastic rollers mounted on roller bearings. Maintenance-free, low-noise rollers Non-wearing and non-slip toothed belt drive. Simple, non-critical installation and start up. High vertical forces up to 1500 N can be accommodated
