Peida Machinery Group Co. Ltd. products

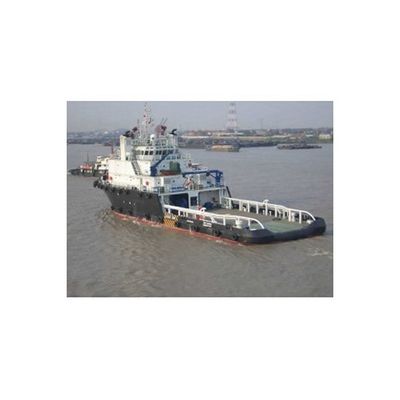

59m Series PSV Tug. Gross tonnage : 1690 tonnes GPS : fitted. Free Deck Space : 370 m2 Speed Log : fitted. Speed max : 13 knots Machinery & Auxiliary Machineries. Tank Capacity Main Engines : 2 x 2575 Bhp. Fresh Water : 480 m3 Make & model : CAT 3516C. Fuel Oil : 590 m3 Propulsion : 2 x CPP. R.O. : 750 m3 Generating sets : 2 x 350Kw. MUD : 530 m3 Shaft generator : 2 x 800Kw. Drill Water/W.B. : 400 m3 Emergency Generator : 1 x 65 Kw. Communication Bowthruster : 1 x 8 Tonnes motor of 515kw.

This twin screw azimuth fixed pitch propellers tugboat designed by our company to carry out general service for harbor duties, towing, pushing, fire fighting and offshore activities. It equipped with after towing winch and hook for towing, stem nose for pushing. Type of vessel: Azimuth harbor tug.

3500 DWT self propelled deck barge ; New building Class ï¼›CCS, Actual Load up to 3500t fixed CO2 side all and ramp has beel fixed thickless: Deck: 11 mm Side, bottom. ramp: 12mm. Sidewall : 10mm.

Length overall : 42.00 m. Beam (mld) : 9.00 m. Depth (mld) : 2.50 m. Design draft : 1.2 m. Power : 2x550 hp KTA19M550. Service speed : 8.5 knots calculated.. Fuel : 120 Tons. Fresh Water : 50 Tons. DWT : 500 Tons. Water Tight doors : Steel. Hatches : Steel. Bollards : Fabricated steel. Stairs / Ladders : Steel.

CCS class Coastal navigation areas L:107 W:16.1 D:8 Draft:6.

Principal dimensions: Length overall abt. 52.00m. Length between perpendiculars 47.32m. Breadth, moulded 20.00m. Depth, moulded 3.86m. Design draft, moulded 2.30m. Dredging depth below light waterline ~40.00m. Lifting capacity of crane: 100T. Gross Tonnage 1500 abt. GRT. Class :BV.

12418DWT  bulk cargo ship; L：135m. W： 22.6m. D： 8.6m. Draft：6.3m. DWT：12418T. Speed：11.3KN. Oil consume : 13T/DAY. Class：CCS

500TEU container vessel; L:117m, W:19.7m, D:8m, Draft:6.4m,  DWT 7600T, Speed:14kn, R:4000NM, Vg:9700m3, Crew:19, M/E:8DKM-28L*2, Generator:250kw*3.
