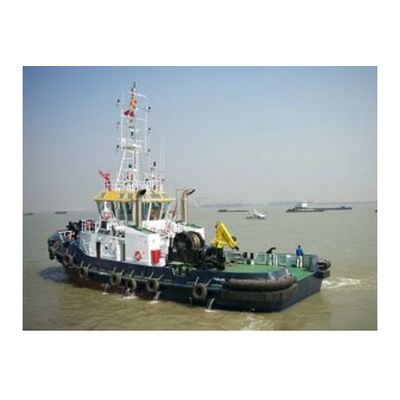

26.5M Zdrive Tug
This twin screw azimuth fixed pitch propellers tugboat designed by our company to carry out general service for harbor duties, towing, pushing, fire fighting and offshore activities. It equipped with after towing winch and hook for towing, stem nose for pushing. Type of vessel: Azimuth harbor tug.
Most popular related searches
- A. Principal Particulars
- Length overall: 26.50M
- Length B.P.: 25.40M
- Beam moulded: 9.80M
- Depth moulded: 4.50M
- Draft designed: 3.50M
- Crew: 8 men
- Fresh water: ~20 M3
- Fuel oil: ~90 M3
- Lub. oil: ~ 8 M3 (for Main Engines & Generators)
- Dirty oil tank: 3M3
- Ballast tank: 3 M3
- Foam tank: 6 M3
- Dispersant tank: 4 m3
- Maine engine : 2 x Cummins QSK60 2,200 bhp @1,800 rpm
- Speed: 12 knots at trial condition
- Bollard pull ahead: 55 mt Ahead with main engines at 100% MCR
- Bollard pull aft: 45 mt Astern with main engines at 100% MCR
- Classification: ABS+A1 (E), Towing Vessel, +AMSC
- B. DECK MACHINERY & EQUIPMENT
- 1) One (1) MacGREGOR hydraulic windlass with winch.
- 2) One (1) 60 tons S.W.L. disc type towing hook
- 3) After Towing Winch. MacGREGOR Single drum, capacity: 700 m x 52 mm dia.
- 4) Deck Crane, One Palfinger 1 Tons @ 9 M c. MACHINERY
- 1) Main Engines. Two (2) QSK60 2,200 BHP @1,800 RPM .
- 2) Generating Sets. Two (2) Cummins 100KW, One (1) Cummins 38MXDGBA Port Generator
- 3) Azimuth Unit .Two (2) HRP 7111 fixed pitch propeller.
- 4) Bilge & Ballast Pumps GS & Fire Pump. 36m3/hr at 30M Maker: Ituer
- 5) Fuel Transfer Pump. One (1) 20m3/hr at 30M gear type, Maker: Itur.
- 6) Freshwater Pressure Set. Two (2) pressure set
- 7) F.O. purifier Alfa-Laval, model: MAB103
- 8) Air-Condition Model: DAJIN USP10HR
