5 products found

phil-vision GmbH products

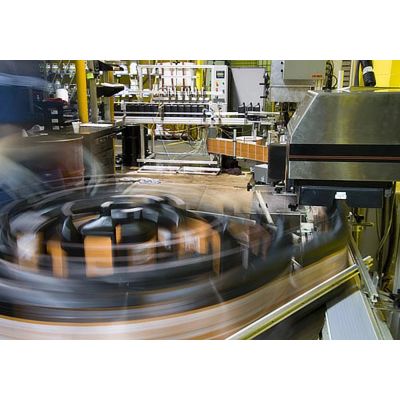

Process Monitoring Solution

To increase the efficiency of production processes, machine and plant safety and to improve the quality of products are the key criteria for the use of machine vision in industrial processes. For monitoring and playback we provide you with suitable systems to monitor processes live, as well as for archiving of recordings.

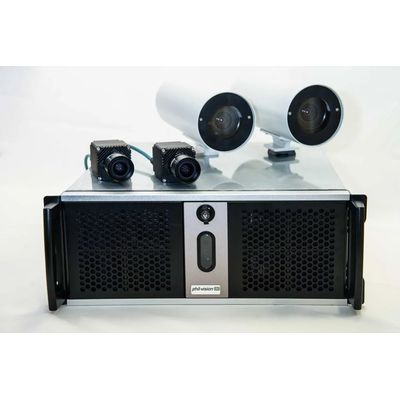

Flexible Recording Systems

When high framerates and high resolution must be combined with long recording times, pvRecord is the ideal solution for sequence recording and trouble shooting. From single camera solutions to individual, synchronised multi-camera video arrays, phil-vision provides scalable, easy to use 2D and 3D recording solutions for various applications. The modular, operator friendly systems allow compressed or uncompressed recording of extremely fast processes and are characterised in particular by the possiblity to use high-quality RAW images directly for automated processing, while at the same time compressing individual images or complete videos for archiving. Up to 16 monochrome or colour cameras, high-resolution cameras or 3D cameras with a variety of interfaces can be used as image sources.

Robust LED Panels

The robust LED panels of the pvLight series impress with extremely homogeneous light distribution, a long service life, as well as an excellent price/performance ratio. The large emitting surface produces a very homogeneous, diffuse highly intensive light. Optionally, the light panels are available with an integrated camera window, important for applications, where the beam path of the light source must be on the same optical axis as the beam path of the camera. The camera aperture has a default inner diameter of 36 or 56 mm (other sizes on request). Thanks to special temperature management, the LEDs have a low power consumption and generate little heat, resulting in a service life of >100.000 hours and can be used for demanding applications. The light panels are available in different standard sizes.The T-slot profile facilitates mounting, a 4-pin M12-connector enables easy wiring.

Calibration Plates

Machine vision and image processing applications often require high accuracy alignment or measurement and calibration of the image produced by the camera in relation to the physical world. This requires a conversion based on a geometric model and the use of a calibration target. The use of calibration plates is also an excellent way to create MSA verifications.

Machine Vision System For Special Custom Printing of Coins

You are printing coins, medals or flat opbjects and the print has to fit exactly? Don`t waste your time positioning the individual objects! With the pvPhotobox you print exactly where you want! The pvPhotobox system for special coin printing, first records the position and rotation of coins on a tray and then a generates a print image from the measurement data (position and rotation) in combination with a template created by the user, which is then sent to a selected printer or print server via the local network.
