PI (Physik Instrumente) L.P.
5 products found
PI (Physik Instrumente) L.P. products
Nanopositioning Stages and Ultra-High Precision Positioning Systems
PIHera - Model P-620.1 • P-629.1 - Linear Precision Positioner
Variable Travel Ranges and Axis Configuration: Travel ranges 50 to 1800 µm; Resolution to 0.1 nm; Linearity error 0.02 %; X, XY, Z versions; XYZ combination possible

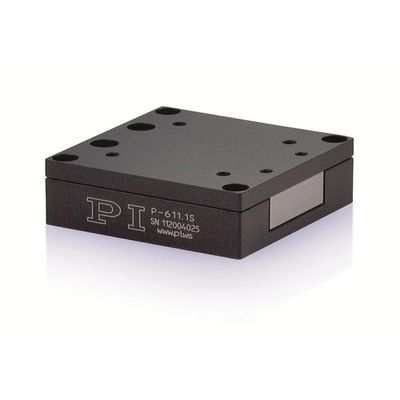

PI - Model P-611.1 - Linear Piezo Positioner
Compact design: Surface 44 mm × 44 mm; Travel range 120 µm; Resolution to 0.2 nm; Particularly inexpensive systems (mechanics and controller); Outstanding lifetime thanks to PICMA® piezo actuators; Also available as Z stage, and as XY, XZ, and XYZ version.
PI - Model P-752 - High-Precision Nanopositioning Stage
Resolution 0.1 nm; Fast response behavior; Travel range up to 35 µm; Highest linearity due to capacitive sensors; Friction-free flexure guides for very high travel accuracy; Outstanding lifetime thanks to PICMA® piezo actuators.

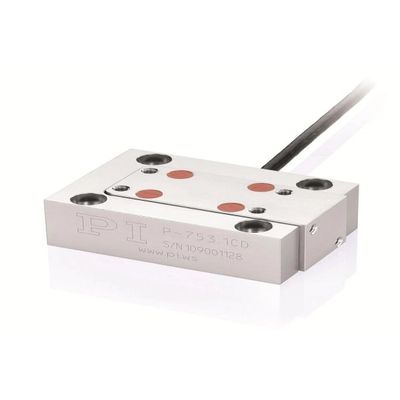

PI - Model P-753 - LISA Linear Actuator and Positioning Stage
Guided stage and actuator at the same time; Travel range up to 38 µm; Resolution 0.1 nm; Particularly fast response behavior due to direct drive; Highest linearity due to capacitive sensors.
PI - Model P-750 - Piezo Nanopositioner
1 nm lateral guiding accuracy; Frictionless, high-precision flexure guiding system; Load capacity to 10 kg; Resolution; Direct metrology with capacitive sensors for highest precision; Direct drive for Fast response; Travel range 75 µm; Outstanding lifetime due to PICMA® piezo actuators.
