Planar Motor Incorporated products

The M3 XBot system from Planar Motor represents an advanced development in magnetic levitation technology, designed to enhance precision movement applications. These XBots leverage strong directional permanent magnets, providing magnetic levitation above the Flyways surface, which is essential for maintaining a secure environment for product and accessory transportation. Available in sizes starting from 120mm x 120mm, they support a wide range of payloads from 0.6 kg to 20.0 kg, providing versatile applications across different industrial settings. With multiple threaded mountings and dowel pin locations, these XBots offer flexible fixturing capabilities, essential for adapting to the specific requirements of various processes. The system includes ten different sizes in both standard and hygienic variants, suitable for diverse operational needs without compromising safety or efficiency.

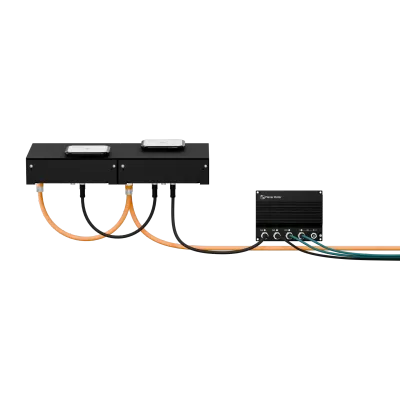

Flyway S3 serves as the core component of the Planar Motor System, acting as a reliable and efficient stator solution. Its primary role involves managing the position, orientation, and unique identification of each XBot unit. Leveraging advanced magnetic field generation, Flyway S3 provides levitation capabilities, which are enhanced by its superior on-board controllers. The system is designed to be fully solid-state, eliminating the need for any moving parts and reducing maintenance requirements. Its modular architecture ensures that it can be configured into a variety of layout designs to meet diverse application needs, thereby providing versatile solutions for complex motion requirements across various industries.

The Flyway S4 stator is a crucial component in Planar Motor Systems, designed for precision and efficiency in dynamic applications. Operating without moving parts, these stators exhibit a solid-state design that ensures longevity and eliminates the need for routine maintenance. Utilizing advanced magnetic fields, Flyway stators sense the position, orientation, and unique identifiers of XBot units, maintaining their levitation through sophisticated onboard control systems. The modular construction of Flyway stators allows for customizable assembly, capable of adapting into various configurations to meet diverse operational demands. The Flyway S4 is part of the Planar Motor's 4-Series, reflecting a 40mm pitch which optimizes spatial dynamics and ensures smooth, uninterrupted performance. Planned for release in October 2025, this future-ready model is engineered for seamless integration into automated systems, enhancing efficiency and reducing downtime.
