Plasto Pumps & Valves products

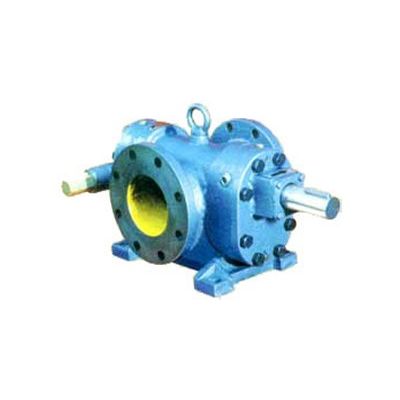

Double helical gear pump with Flanged connections. Shaft supported on needle roller bearings. Choice of self or independent lubrication of bearings. Recommended for heavy duty application of handling petroleum products add viscous liquids. Wide capacity range and Provision for fittment of mech. seal. MOC - CI/CS/SS. Facility for steam jacketting. Sealing arrangement - oil seal / glandpacking / mech. seal. Capacity in m3 /hr at 1440 RPM. Operating Pressure upto  25 kg/cm2. Max. Temp upto 250° c. Flanged connection in BS / ANSI / AS. For detailed technical literature / Catalogue please, write ,mail or fax us. Fill in the Enquiry form to enable us to suggest a suitable pump to your application.

Size : 15mm to 65mm. Pressure : 5 to 10 kg/cm2. Capacity : 20 to 350 lpm. Only two moving parts. quiet in operation. Removable bearings. Built-in relief valve (optional ).

Glandless pump:- is designed vertically. Liquid from the suction line passes through impeller to the discharge line with the required flow and head / pressure. While excess liquid enter the rear plate cover €“ and is diverted back to the mothertank through overflow outlet arrangements. Hence, the design ensures total solution of leakage problem. The motor assembly is also protected against damages due to leakage of liquid. Glandless pumps ensures ensures excellent performance while handling corrosive and hazardous chemicals.

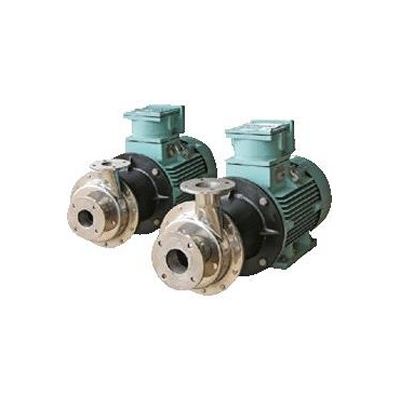

A seal less fluids pump supplier and pumps are very effecient plasto series give a defferent types of solutions in making pumps, Seal Less pumps employs Magnetic drive arrangement for rotating the impeller. Ideal for handling corrosive chemicals, axeial flow pumps, solvents, petrolium products, kerosene pumps, pharmaceutical and food syrups etc. These pumps are vastly used in Chemical plants, Electroplating plants, Textile mills etc.

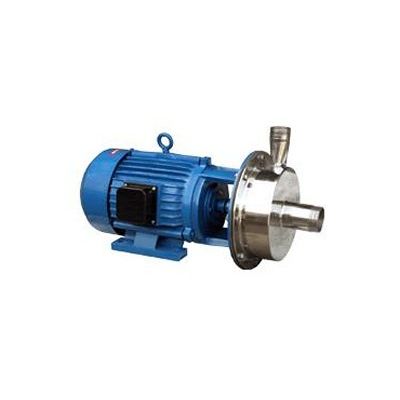

Complete SS 316 Horizontal centrifugal pumps with High head, High discharge design. Hydraulically balance impeller gives better economy and lower power consumption. Sealing arrangement by Carbon v/s Ceramic Mech. Seal, which compatible with almost all liquids. Special seal or gland packing can be supplied on request. Ideally suitable for chemical transfer from underground to overhead tank, unloading from tanker, washing and cleaning of parts, Food and dairy products, beverages etc.

Complete contact parts are made from Polypropylene, metal shaft is encapsulated in Polypropylene heavy duty sleeve. These pumps ensures excellent performance while handling corrosive and hazardeous chemicals like HCL, H2SO4HNO3 and low to high Ph chemicals.

Vertical Centrifugal process pump can be used in any installation or specially where the saving of space is important factor or mechanical seal not required. These pumps are designed for use where the liquid handled to be of highly corrosive nature or where non-adherence of product or zero metallic contamination is must. These pumps are equally ideal for continuous or intermittent service for hanling conrrosive as well as ultra pure chemicals without fear of corrosion or contamination. All components in the watted end of the pump are moulded of engineered plastic. These pumps are not only less costly than high alloy or exotic metal pumps, but they may be used safely in service where metal pumps are completely inadequate.

In many applications in the chemical process filed, the use of vertical pumps for transfer or other services offers many advantages. perfect heavy duty vertical process pump handles clean, oily, sandy, corrosive liquids - the varied applica-tion industries include Chemical & Petrochemicals, Foods & Pharmaceuticals, Sugar & Paper mills, waste water treatment plants etc. We are specialists in corrosion resistant pumps, now offer a group of vertical pump process pumps especially built for heavy duty service, pumping corrosive liquids. A wide range of sizes for pit depth to 20 ft. in both the wet pit or submerged Steel / Stainless Steel with all parts of the unit in contact with the liquid made of this highly corrosive resistant material. Other materials to meet user`s requirements are also available

Plasto Process pump is a horizontal single end suction standardized back pull out process pump. PPC series process pupms are supplied with mechanical seal/gland packing arrangement covering 85% of the chemical industries requirement. The pumps are manufactured from polypropylene copolymer-a chemically inert thermoplastic by the use of an exclusive moulding process. This pumps give you unusual protection against highly corrosive chemicals. The solid molded casing and impeller ensure a smooth running pump for long life and a minimum of wear. all pumps , shafts are fitted with sleeves of different materials compatible with the liquid handled.

Plasto Process pump is a horizontal single end suction standardized back pull out Process pump in accordance with ISO2858/DIN24256. The PCF series process pumps are single piece, self venting radially split volute casing with vortex discharge, close redial impellers have back vanes for hydraulic balancing & reducing stuffing box pressure. Dry shaft construction preventing liquid contact with shaft.
