Pneuflex Pneumatic Co., Ltd products

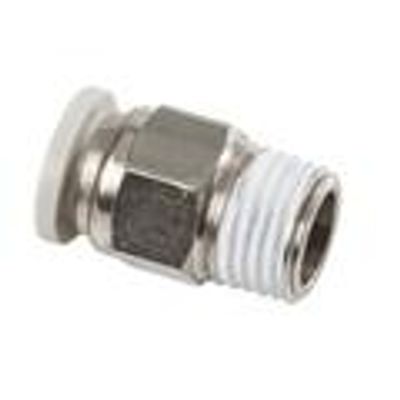

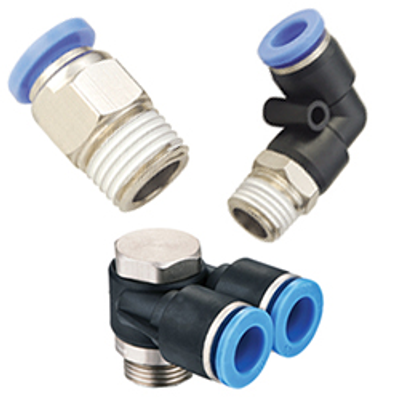

Composite push in fittings for metric / inch tubing, PT, R, BSPT connection thread come in a variety of types, moulds and sizes to satisfy various tube demands. Our composite push in fittings could accept both metric and inch tube. Working pressure from 0~1.0Mpa (0~150psi), Working temperature from 0~60ºC (32~140ºF). Accommodate metric tubing O.D ranging from 4mm to 16mm, inch tubing O.D ranging from 1/8" to 1/2". Thread sizes range from 1/8 to 1/2.

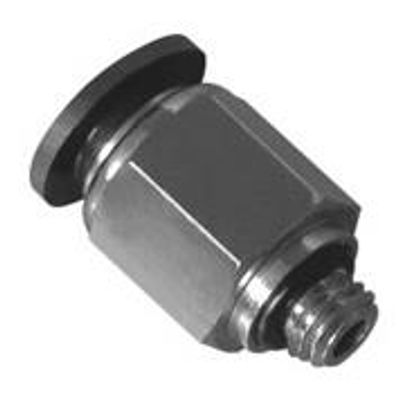

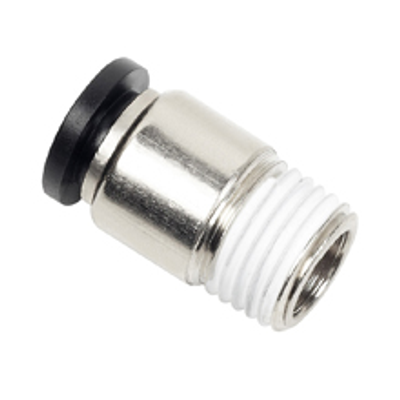

Hexagon male connector (round male connector) is a sort of push in fittings and pneumatic fittings and is widely used in the situation where the assembly space is limited. Hexagon male connector connects a tube to a NPT female threaded port straight. Hexagon male connector is equipped with the internal hexagonal holes and it can be adjusted with an Allen wrench.

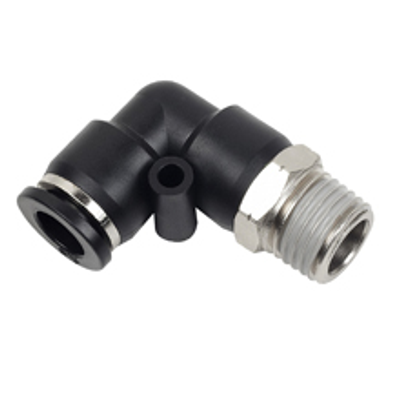

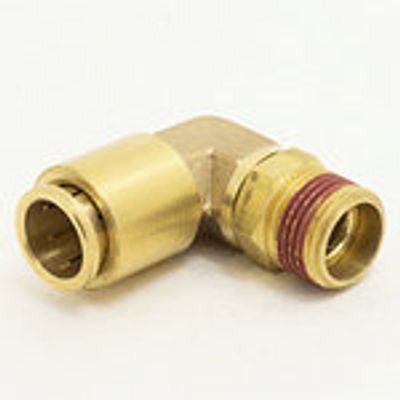

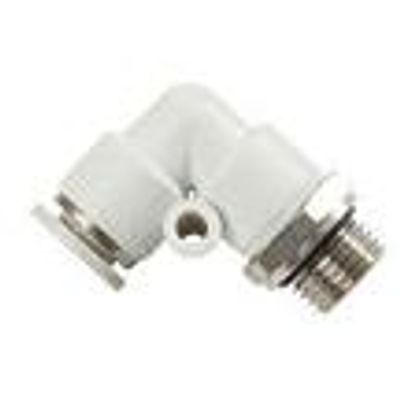

Male elbow is one of pneumatic fittings and push in fittings which is extensively used.  Male elbow is designed to "L" shape with a male thread and a connector. It can connect a tube at a 90° angle to a female thread and can be  tightened with a flat wrench. Accommodate metric tubing O.D ranging from 4mm to 16mm, inch tubing O.D ranging from 1/8" to 1/2". Thread sizes range from 1/8 to 1/2.

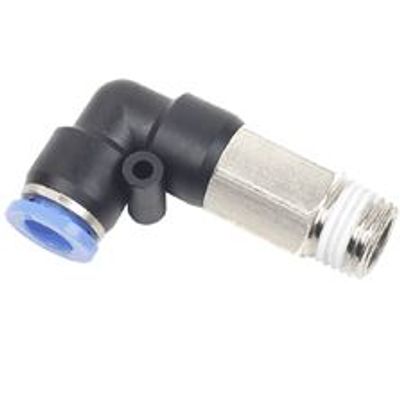

Extended male elbow is a sort of push in fittings and it is used together with PL Male Elbow. Extended male elbow is designed to L-shape with a extended tube length in comparison to Male Elbow.  The tube will be at different heights when it is used together with Male elbow so that the tube do not interfere with one another. It connects a tubing at a 90° angle to a female thread. Accommodate metric tubing O.D ranging from 4mm to 16mm, inch tubing O.D ranging from 1/8" to 1/2". Thread sizes range from 1/8 to 1/2.

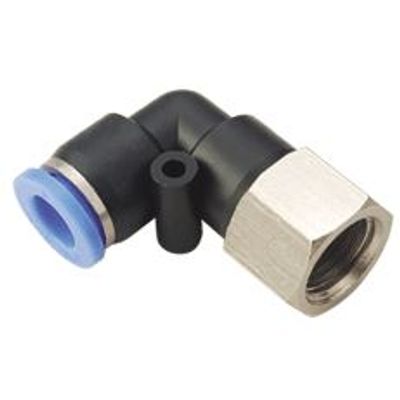

Female Elbow is a kind of pneumatic fitting and push in fittings which is widely used .  Female Elbow is designed to L-shape with female thread and one connector. It can connect a tube at a 90° angle to a male thread and it can be externally tightened with a flat wrench because of its outer hexagon. Accommodate metric tubing O.D ranging from 4mm to 16mm, inch tubing O.D ranging from 1/8" to 1/2". Thread sizes range from 1/8 to 1/2.

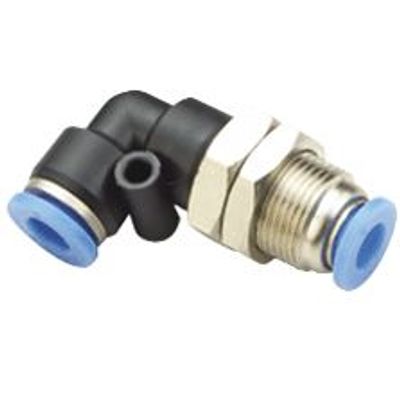

Bulkhead union elbow is one of pneumatic fittings and push in fittings which is extensively used. Bulkhead union elbow is designed to "L" shape with two bulkheads and can be connected two tubes. Bulkhead union elbow can pass through a panel and can be fixed by using two bulkheads. Accommodate metric tubing O.D ranging from 4mm to 16mm, inch tubing O.D ranging from 1/8" to 1/2".

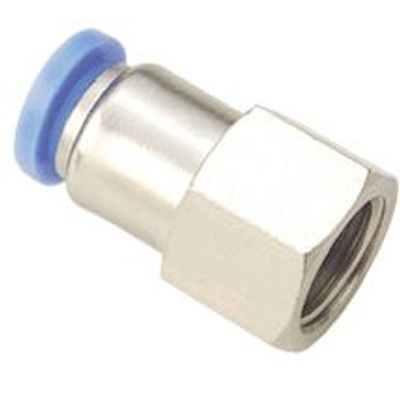

Female Connector is a common used part in the series of pneumatic fittings and push in fittings. Female connector connects a tubing to a male threaded port in line. Female connector can be externally tightened with a flat wrench or socket wrench. Accommodate metric tubing O.D ranging from 4mm to 16mm, inch tubing O.D ranging from 1/8" to 1/2". Thread sizes range from 1/8" to 1/2".

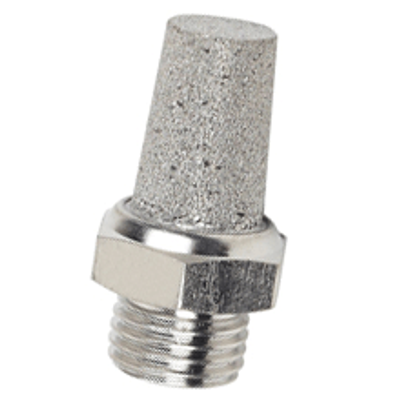

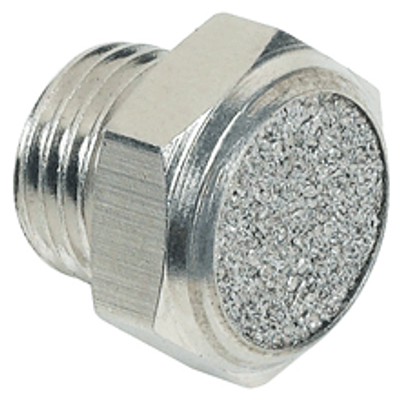

SSL standard sintered stainless steel silencer (stainless steel exhaust muffler) is widely used on the exhausts of valves to suppress the exhaust noise of air release. Meanwhile, sintered stainless steel silencer can protect debris from entering the valve ports. The thread is made of stainless steel and the noise absorbing material is sintered stainless steel. External tightening with a flat wrench or socket wrench. Thread ranges from M5..., 10-32UNF... 1/8" to 2".

Stainless steel breather vent silencer is used to reduce the noise of air release. Meanwhile sintered stainless steel breather vent silencer can prevent debris from entering the valve exhaust ports to protect pneumatic components. The thread of stainless steel breather vent silencer is made of stainless steel and the noise absorbing material is made of sintered stainless steel. External tightening with a flat wrench or socket wrench. Thread ranges from M5, M6..., 10-32UNF, 1/8" to 2".

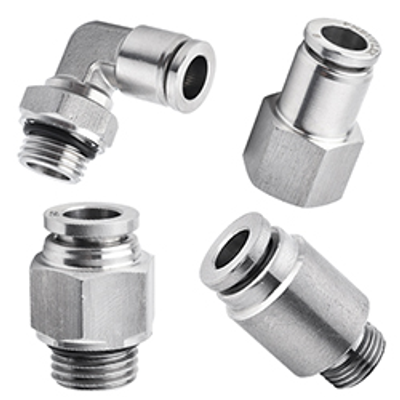

As a super kind of push in fittings, Pneuflex`s G, BSPP thread 316 stainless steel push-in fittings for metric / inch tubing (also called 316 stainless steel push to connect fittings) help to create quick and easy connections in a variety of applications. These durable 316 stainless steel push in fittings are suitable for applications in corrosive environments and high temperature and high pressure environment. Accommodate metric tubing O.D range from 4mm to 16mm, as well as inch tubing O.D range from 1/8" to 1/2". G, BSPP thread sizes range from 1/8" to 1/2".
