Postnova Analytics GmbH products

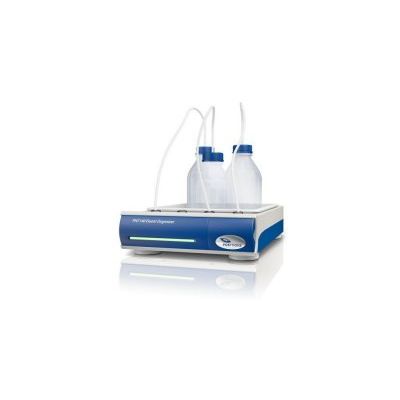

Operation Principle: Holder for bottles and possibility of direct connection of up to 8 sovents lines via the integrated PEEK connector block. Standard Version: 2-Channel Version; Part#: S-REA-7140-001. Extendable up to 8 channels. Bottle Volumes: For two 2L, four 1L, six 0,5L or eight 0,25L solvent/waste bottles. Special versions maybe provided by Postnova as well. Please inquire for possible options, which will depend on the requested customer application. The PN7140 will be delivered including 2x 1 Liter bottles with bottle caps and 1/8“ OD Tubings.

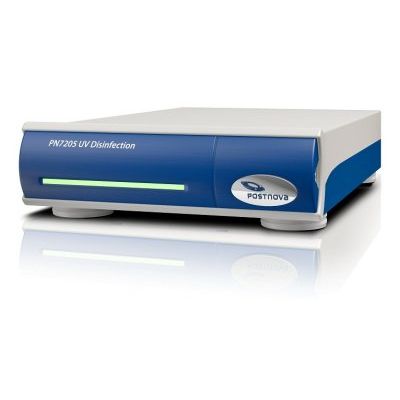

One of the sensitive parameters in Field-Flow Fractionation is the preparation and stabilization of the eluent. As in basically any aqueous media microorganisms will grow during a period of time, which can cause serious problems. The PN7205 UV Disinfection Module is designed to solve that problem by providing eluents for constant sterile conditions. It is a unique automatic and continuously working cleaning device for FFF eluents and preserves the sterile condition of any aqueous solvent.

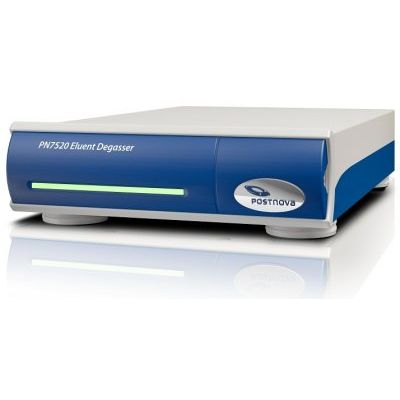

Solvent degassing is an critical and important step in FFF, SEC and HPLC, as oxygen and other dissolved gases affect the analysis for various reasons. Through different pressure ratios and different temperatures along the flow path, dissolved gases can be released. This will influence the flow rate stability and detector signal noise of the analysis. Especially for analysis methods using Light Scattering, UV and RI, vacuum degassing method allows an operation with lowest possible detection limits due to more smooth and stable baseline conditions.
