Pump Solutions Group Co. LLC (PSG) products

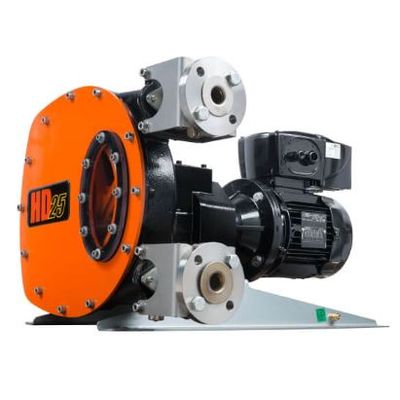

With more than 20 years of experience pumping and transferring difficult chemicals and fluids, the Abaque Peristaltic Hose pump will handle your toughest pumping needs — from abrasive and aggressive to shear-sensitive and viscous fluids.

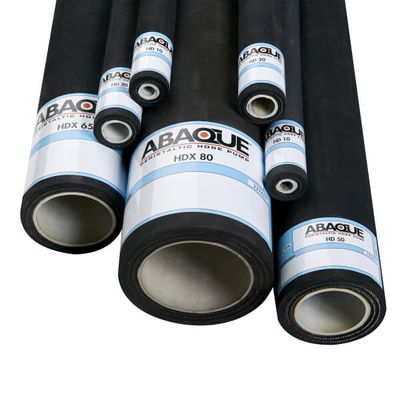

The hose of a peristaltic (hose) pump is the only component that comes in contact with the pumped medium. ABAQUE® engineers hoses the are manufactured from high quality compounded rubber, reinforced by layers of nylon. Once constructed, the hose is then precisely machined for efficiency, accuracy, longevity and optimal compression.

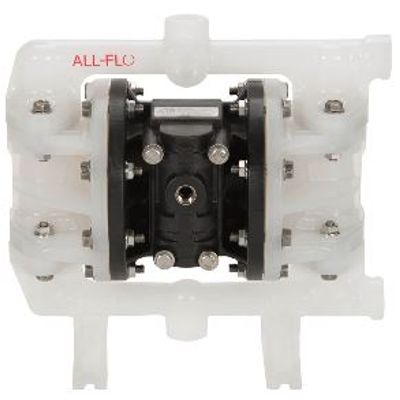

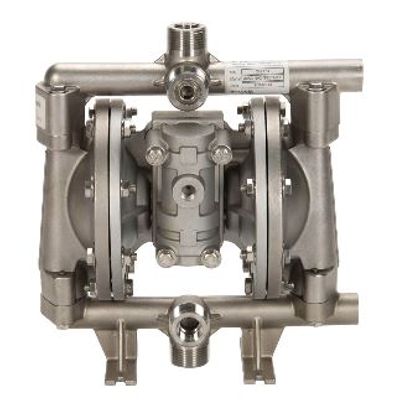

Air Inlet : 1/4" FNPT. Liquid Inlet : 1/4". Liquid Discharge: 1/4". Connection Type: FNPT/FBSPT (Threaded). Max Suction Lift Capability : 14 ft-H2O (4.2 m-H2O) Dry, 28 ft-H2O (8.5 m-H2O) Wet. Max Flow Rate : 5.7 gpm (21.6 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/16" (1.6 mm). Displacement Per Stroke: 0.01 gal (0.04 L).

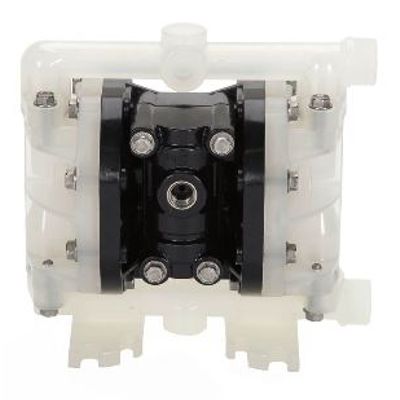

Air Inlet : 1/4" FNPT. Liquid Inlet: 3/8". Liquid Discharge: 3/8". Connection Type: FNPT/FBSPT (Threaded). Max Suction Lift Capability: 10 ft-H2O (3.0 m-H2O) Dry, : 26 ft-H2O (7.9 m-H2O) Wet. Max Flow Rate: 9 gpm (34.0 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/16" (1.6 mm). Displacement Per Stroke: 0.01 gal (0.04 L).

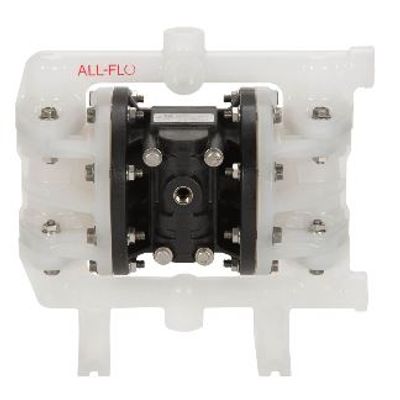

Air Inlet : 1/4" FNPT. Liquid Inlet: 1/2". Liquid Discharge: 1/2". Connection Type: FNPT/FBSPT (Threaded). Max Suction Lift Capability: 15 ft-H2O (4.6 m-H2O) Dry, : 26 ft-H2O (7.9 m-H2O) Wet. Max Flow Rate: 17 gpm (64.6 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/8" (3.2 mm). Displacement Per Stroke: 0.03 gal (0.10 L).

Air Inlet : 1/4" FNPT. Liquid Inlet: 3/4". Liquid Discharge: 3/4". Connection Type: FNPT/FBSPT (Threaded). Max Suction Lift Capability: 15 ft-H2O (4.6 m-H2O) Dry, : 26 ft-H2O (7.9 m-H2O) Wet. Max Flow Rate: 17 gpm (64.6 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/8" (3.2 mm). Displacement Per Stroke: 0.03 gal (0.10 L).

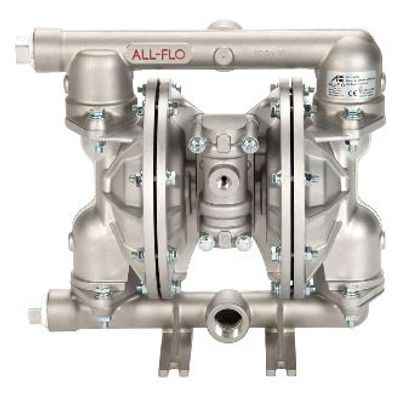

Air Inlet: 1/4" FNPT. Liquid Inlet: 1". Liquid Discharge: 1". Connection Type: FNPT/FBSPT (Threaded),: ANSI/DIN (Flanged). Max Suction Lift Capability: 15 ft-H2O (4.6 m-H2O) Dry,: 26 ft-H2O (7.9 m-H2O) Wet. Max Flow Rate: 41 gpm (155.8 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/4" (6.4 mm). Displacement Per Stroke: 0.08 gal (0.31).

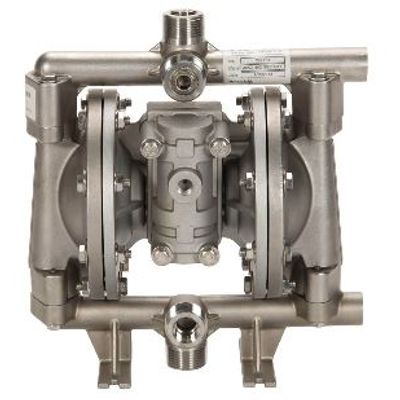

Air Inlet : 1/4" FNPT. Liquid Inlet: 1/2". Liquid Discharge: 1/2". Connection Type: FNPT/FBSPT (Threaded). Max Suction Lift Capability: 15 ft-H2O (4.6 m-H2O), Dry : 31 ft-H2O (9.4 m-H2O) Wet. Max Flow Rate: 15 gpm (56.8 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/8" (3.2 mm). Displacement Per Stroke: 0.03 gal (0.10 L).

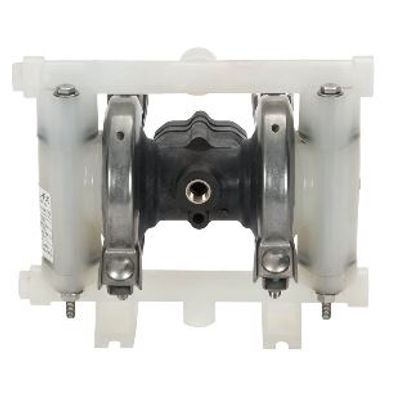

Air Inlet : 1/4" FNPT. Liquid Inlet: 3/4". Liquid Discharge: 3/4". Connection Type: FNPT/FBSPT (Threaded). Max Suction Lift Capability: 15 ft-H2O (4.6 m-H2O), Dry. 31 ft-H2O (9.4 m-H2O) Wet. Max Flow Rate: 15 gpm (56.8 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/8" (3.2 mm). Displacement Per Stroke: 0.03 gal (0.10 L).

Air Inlet: 1/4" FNPT. Liquid Inlet: 1". Liquid Discharge: 1". Connection Type: FNPT/FBSPT (Threaded). Max Suction Lift Capability: 17 ft-H2O (5.2 m-H2O), Dry : 30 ft-H2O (9.1 m-H2O) Wet. Max Flow Rate. : 48 gpm (182 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/4" (6.4 mm). Displacement Per Stroke: 0.07 gal (0.28 L).
