PSG All-Flo - Model A050 - Plastic ...

PSG All-Flo - Model A050 -Plastic Diaphragm Pumps

Air Inlet : 1/4" FNPT. Liquid Inlet: 1/2". Liquid Discharge: 1/2". Connection Type: FNPT/FBSPT (Threaded). Max Suction Lift Capability: 15 ft-H2O (4.6 m-H2O) Dry, : 26 ft-H2O (7.9 m-H2O) Wet. Max Flow Rate: 17 gpm (64.6 lpm). Max Pressure: 120 psi (8.2 bar). Max Diameter Solids: 1/8" (3.2 mm). Displacement Per Stroke: 0.03 gal (0.10 L).

Most popular related searches

air-operated double diaphragm pump

diaphragm pump

double diaphragm pump

air-operated diaphragm pump

Micro C pump Direct drive
Micro C pump Direct drive with VFD
Micro C pump Gearmotor drive
Micro C pump Gearmotordrive with VFD
Gaskets: PTFE Encapsuled
90° pump connection ( Din 11851 DN20 , BSP, NPT machine-
tapping, DN20 clamp, Clamp + ribbed tip, RTJ connection)

PSG All-Flo - Model A050 -Plastic Diaphragm Pumps

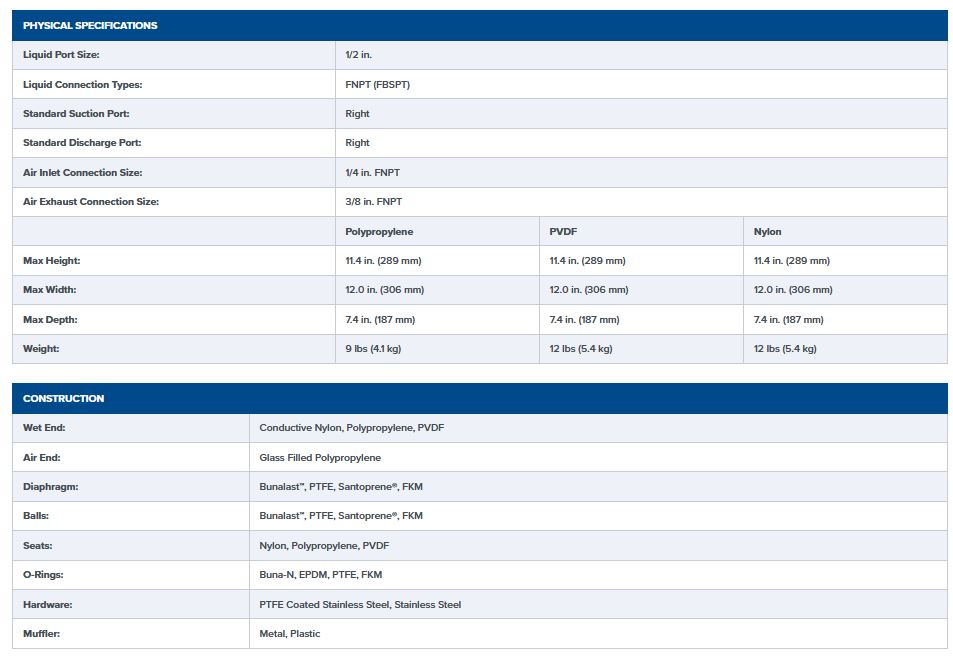

Specifications

Options
