Ranger Mining Equipment Ltd. products

One Cylinder, Air Cooled Diesel Engine with factory fuel tank. 12 Volt System. FMC E0413 Vertical Quadruplex Piston Pump rated at 20.5Gpm @ 575Rpm, 600psi max pressure. Noram 61101 6:1 Reduction Gear Box with adaptor. Pump coupler. Powder coated steel skid base package w/ four post frame and lifting bar. Battery rack, battery and cables. Key start panel w/ manual throttle control. Approximate weight: 182kg / 400lb. Approximate dimensions: 24”W x 39.5”L x 26”H.

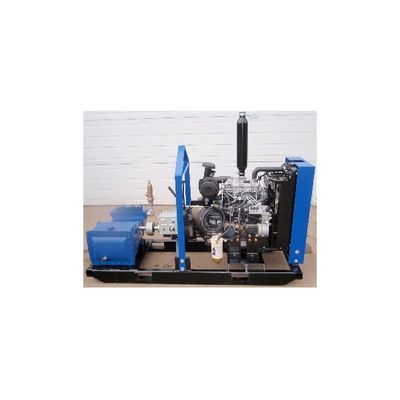

Perkins or Kubota Diesel Engine. 12 Volt System. L0918BCD (420 Bean) Triplex piston pump rated at 22G pm 700Psi. Newage 40M43 four speed transmission w/ clutch assembly. Pump coupler . Powder coated steel skid base package w/ radiator guard, lifting bar, fork lifts slots.
Battery rack, battery and cables. Adjustable pressure relief valve. Muffler with rain Cap. Key start panel w/ manual throttle control. Owners manual. Approximate weight: 405kg/850lb. Approximate dimensions: 26”W x 65”L x 50”H.

Perkins or Kubota Diesel Engine. 12 Volt System. American AW1122B-­-CD (435 Bean) Triplex Piston Pump rated at 37.4Gpm @ 1000Psi. Newage 40M43 Four speed transmission w/ Clutch Assembly. Pump coupler . Powder coated steel skid base package w/ radiator guard, lifting bar and fork lift slots. Battery rack, battery and cables. Adjustable pressure relief valve. Muffler with rain cap. Key start panel w/ manual throttle control. Owners manual. Approximate weight: 642kg/1350lb. Approximate dimensions: 30”W x 74.5”L x 57”H.

Perkins or Kubota Diesel Engine. 12 Volt System. American AL1122B-­-CD (450 Bean) Triplex Piston Pump rated at 47.1Gpm @ 1000Psi. Newage 40M43 Four speed transmission w/ Clutch Assembly. Pump coupler . Powder coated steel skid base package w/ radiator guard, lifting bar and fork lift slots. Battery rack, battery and cables. Adjustable pressure relief valve. Muffler with rain capKey start panel w/ manual throttle control. Owners manual. Approximate weight: 642kg/1350lb. Approximate dimensions: 30”W x 74.5”L x 57”H.

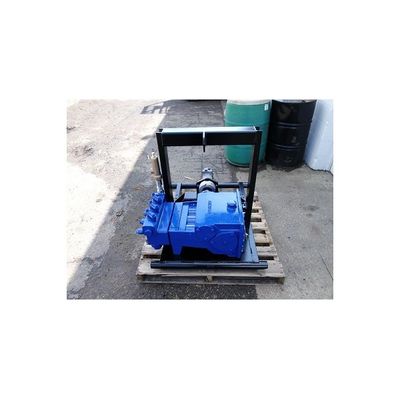

American AW1122B-CD (435 Bean) triplex piston pump rated at 37.4Gpm @ 1000Psi. Eaton or Char Lynn hydraulic motor. Martin coupler (ChainType). Powder coated steel skid base package with lifting bar. Adjustable pressure relief valve. Approximate weight: 319kg/650lb. Approximate dimensions of the Ranger 435 Hydraulic Powered Mud Pressure Pump: 36”W x 44.5”L x 34.5”H.

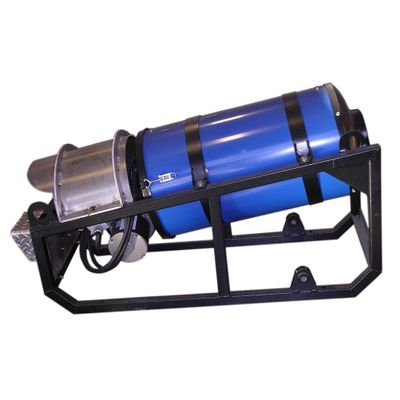

Diesel-fired or propane fired water line heaters that will protect drillers against water line freeze up. Heavy duty 4 point lifting frame for heli-portable fly jobs. Large ID heater coil tested to with stand 1500 PSI Pressure. Quickly heats up pressurized water.

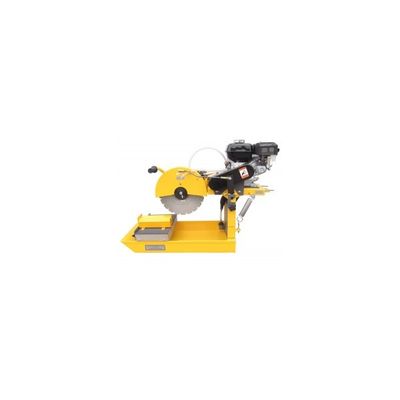

Each Pothier Core Cutting Saw is assembled, aligned, and tested to ensure quality and reliability for years to come. Various motor types are available - please submit an information request or contact us directly for assistance on identifying which motor best suits your
needs. The gas powered saw is fitted with a 4.8HP Honda GX160 motor and a built-in heavy duty centrifugal water pump. Designed to work best with Pothier Core Cutting Blades. See related products for more details.

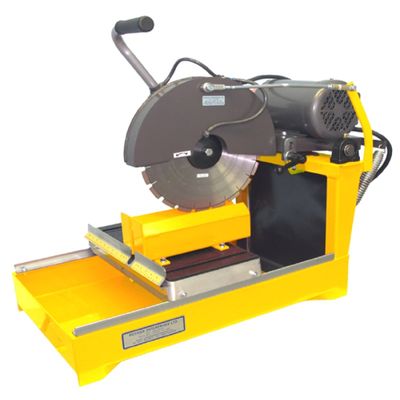

Each Pothier Core Cutting Saw is assembled, aligned, and tested to ensure quality and reliability for years to come. Various motor types are available - please submit an information request or contact us directly for assistance on identifying which motor best suits your
needs. Designed to work best with Pothier Core Cutting Blades. See related products for more details. Additional Images show the optional Folding Steel Stand & Safety Cradle.

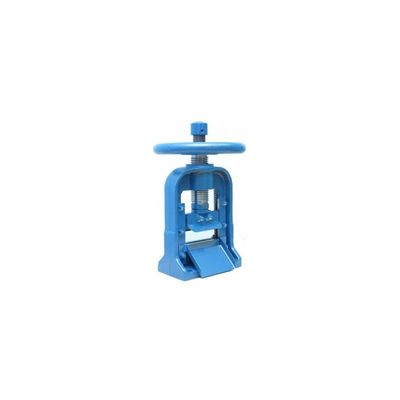

Every Pothier Core Splitter is proudly manufactured and assembled in Canada at our shop. Core splitters are used to split cores lengthwise for study and analysis. The core splitter handles core diameters from 3/4` (19 mm) to 2 7/8` (73 mm) in lengths of up to 3 3/4` (95.3 mm). The core is split by laying it lengthwise on the vee block and lowering the knife by rotating the hand wheel. When the knife is in firm contact with the core, a sharp blow with a hammer on the rod cap will cleanly split the core.
