Ranjit Hydraulics Engineers (Regd.) products

We offer superior quality Hydraulic Deep Drawing Press that is specially designed to offer optimum performance. This is equipped with a PLC and L.V.D.T depth control, along with automatic photo sensor electronic safety guard ejector. Being highly rigid, compact and space saving in design, this machine is widely used in the manufacturing of S.S sinks, L.P.G cylinders, geyser, A.C., cooking hobs and other automobile components.

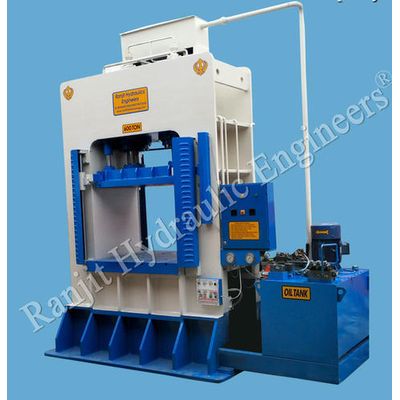

We are the leading manufacturer and exporter of Hydraulic Deep Draw Press. Standard Deep Draw Press offered comprises fabricated box type draw presses with main RAM capacity of 250 ton and blank holder ram capacity of 250 ton. Backed by latest technology support, these highly functional draw presses also come with main cylinder stroke of 900 mm, blank holder ram stroke of 450 mm and day light gap of 1000 mm.

heavy duty, steel fabricated body, hand operated type hydraulic press m/c., complete with all std. Access. Such as: pressure gauge & a pair of planed off v-blocks for straightening as per enclosed catalogue.

Our organization is offering Hydraulic Press Machine to our clients. The sturdy construction of all presses guarantees stability and durability. The press is provided with a 2- stage hand pump. The low pressure pump is used for rapid advance of piston at pressure. The high pressure Pump is provided with a special material lining and is used for slow advance at high pressure. The winch provided for rising and lowering the table is smooth running. During operation, the table is fastened by means of pins. The press has been all steel welded.

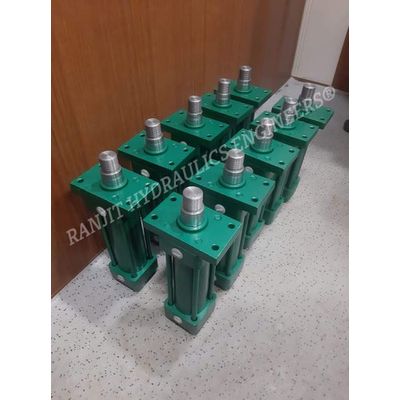

All Hydraulic Jacks are tested hydraulically as per IS specifications. Using Cylinder tubes are manufactured from cold drawn seamless tubes, having required surface duly finished to ensure longer life of oil seal. Rubber Oil-Seal to resist high fluid pressure. Nuts for Cylinder and Piston are made of steel, having high tensile and sheer strength or as per requirement of or customer. All parts are replaceable and accessible.

Product Details: Usage/Application: Industrial. Bending Material: Mild Steel. Sheet Material: Steel. Size: 108". Automation Grade: Semi-Automatic. Model Name/Number: PB-09. Power: Electric. I Deal In: New Only. Country of Origin: Made in India. Sheet Bending Machine.

We offer superior quality Hydraulic Deep Drawing Press that is specially designed to offer optimum performance. This is equipped with a PLC and L.V.D.T depth control, along with automatic photo sensor electronic safety guard ejector. Being highly rigid, compact and space saving in design, this machine is widely used in the manufacturing of S.S sinks, L.P.G cylinders, geyser, A.C., cooking hobs and other automobile components.

Product Details: Usage/Application: Agriculture, Industrial others. Material To Be Cut: Mild Steel. Voltage: 440v. Automation Grade: Automatic. Brand: RHE. Power: 5hp. Model Name/Number: RCM-100. Weight: 2000KG. Capacity: 100 Ton. Flat Size: 500X20MM. I Deal In: New Only. Country of Origin: Made in India.

Our C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. They are compact with an inbuilt hydraulic power pack for multi productivity and operated with most advanced Electronic control (PLC). C-Frame press manufactured by us, are easy to install, economical and operate with high speed. C-frame hydraulic presses are being used for wide array of jobs like straightening, punching, molding, bending, drawing, assembling, riveting and other general purposes.
