RefleX UV Chambers - NeoTech Aqua Solutions, Inc. products

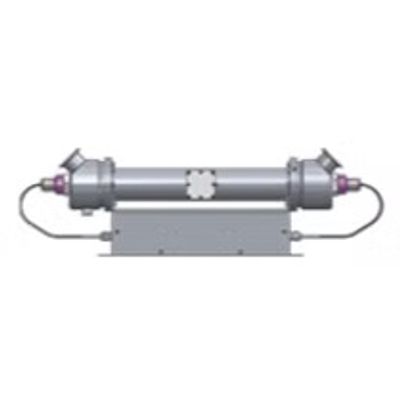

RefleX D222 UV Chambers are engineered to efficiently disinfect ultrapure water and facilitate effective ozone destruction, making them integral to advanced oxidation processes. Utilizing a patented technology that reflects 99.8% of 254 nm UV light back into the chamber, these chambers optimize UV exposure for maximum disinfection efficacy. They feature a compact design with a footprint 75% smaller than typical UV systems, equipped with a 22-inch high-output lamp. This design ensures minimized operational costs and a simplified maintenance schedule, as service visits are needed less frequently compared to other systems. The RefleX Controllers further enhance efficiency by enabling independent control of up to four chambers. Certified by NSF 50 and NSF 61, these chambers are suitable for diverse applications, ranging from microelectronics and food and beverage industries to municipal water treatment, thanks to their adaptable power requirements and real-time dosimetry.

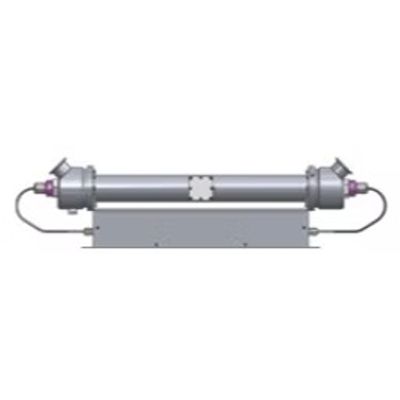

The RefleX D228 UV Chambers are innovative systems developed by NeoTech Aqua Solutions to enhance ultrapure water disinfection and aid in ozone destruction. Utilizing a patented design, these chambers reflect 99.8% of 254 nm UV light back into the chamber, ensuring maximum UV exposure and efficiency. With a footprint 75% smaller than conventional UV systems, the RefleX D228 optimizes space without compromising performance. It is engineered for minimal maintenance with features like high-output amalgam lamps and real-time dosimetry for effective operation. These systems are suitable for applications such as recreational facilities, microelectronics, food and beverage production, and commercial water treatment. Their ability to function on 120V or 230V single-phase power and control up to four chambers independently makes them highly versatile. The TUV safety certification and NSF 50 and NSF 61 certifications underscore their reliability and compliance with industry standards.

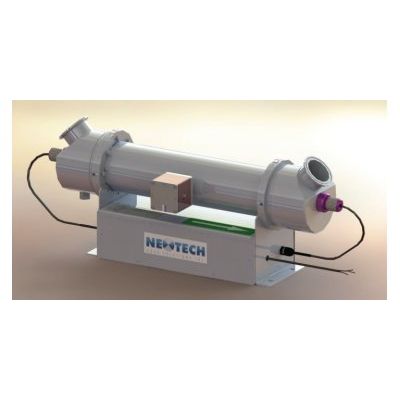

The RefleX D238 UV Disinfection Chambers are specially designed for the ultrapure water industry, offering a notable contribution to advanced oxidation and water purification processes. Utilizing an innovative patented technology, these chambers achieve a remarkable reflection rate of 99.8% of 254 nm UV light, significantly enhancing the system's efficiency. The compact design features a 75% smaller footprint than conventional UV systems, incorporating 38-inch high-output lamps to deliver superior performance while minimizing costs. It is designed for ease of maintenance with no-tool lamp changes and is equipped to be mounted either vertically or horizontally. The chamber is certified by NSF 50 and NSF 61 standards and boasts up to 75% reduced energy consumption. It also includes RefleX Controllers for independent operational management of up to four chambers, with real-time dosimetry and TUV safety certification. Operating at a flow rate of 150 gpm, the system maintains a 95% UV transmittance at 30mJ/cm², marking it as an efficient choice for demanding applications. The NeoTech D238's design ensures unmatched UV distribution while reducing lamp and power requirements by up to 90% compared to standard systems.

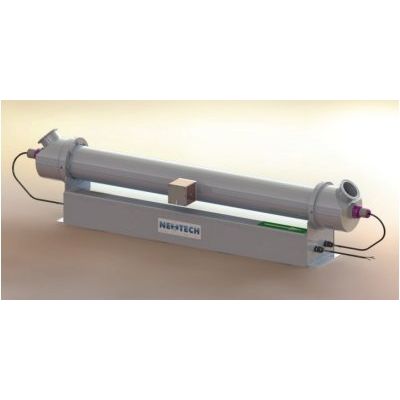

The RefleX D322 UV Disinfection Chambers offer a compact and efficient solution for water disinfection, suitable for a range of industrial and commercial applications. Utilizing patented technology, these chambers reflect 99.8% of the 254 nm UV light back into the chamber, optimizing exposure and ensuring effective pathogen inactivation. Their design reduces the physical footprint by 75% compared to traditional systems and operates with a single high-output amalgam lamp, minimizing energy consumption by up to 75%. The system operates on either 120V or 230V single-phase power and incorporates advanced controllers capable of managing up to four separate chambers. For ease of maintenance, the lamps can be replaced without tools, and the UV monitor is designed for simple swapping during operation. Certified by NSF 50 and NSF 61, as well as TUV safety standards, these chambers represent a robust option in the water treatment industry. They are engineered to achieve high UV transmission (UVT) even with particles present, ensuring comprehensive disinfection.

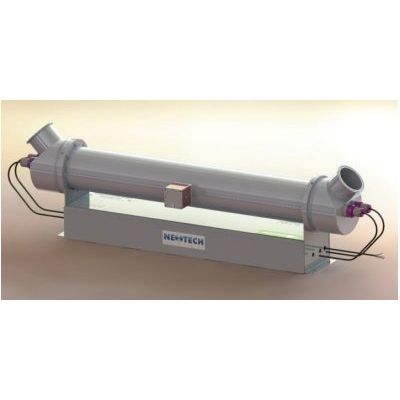

The RefleX D328 UV Disinfection Chambers from NeoTech Aqua Solutions offer a compact solution designed for ultrapure water disinfection and ozone destruction. Using an innovative technology that reflects 99.8% of the 254 nm UV light back into the chamber, these units maximize UV exposure and ensure efficient water purification. They feature a remarkably small footprint, being 75% smaller than conventional UV systems, and operate with 28-inch high-output amalgam lamps. This system is recognized for significantly reducing lamp and power requirements by up to 90% compared to standard systems, leading to lower operational and maintenance costs. Each chamber can handle a flow rate of 50 gpm (11.4 m3/hr) with a UV transmissivity (UVT) of 95% at 30 mJ/cm2. The chambers come equipped with a RefleX Controller for easy management of up to four treatment units, and the entire system is certified to NSF 50 and NSF 61 standards, ensuring quality and safety. The modular design allows for vertical or horizontal installation, further enhancing its adaptability. With its advanced engineering and minimal maintenance needs, the RefleX D328 is an efficient choice for applications ranging from recreational to industrial water systems.

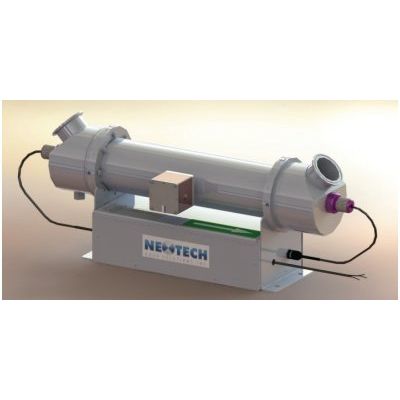

The NeoTech D338 is specially designed to disinfect water and is an essential component in advanced oxidation processes. This high-efficiency UV system utilizes NeoTech Aqua’s patented ReFleX chamber technology, reflecting over 99% of the 254nm UV generated. It is the highest efficiency, smallest footprint, and lowest operating cost UV system in the water treatment industry. With only a single thirty-eight inch lamp, the D338 provides users the most convenient and lowest cost service schedule of any low pressure or medium pressure UV system today.

The RefleX D428 UV Disinfection Chambers are engineered to provide efficient water disinfection and ozone destruction, utilizing advanced oxidation processes. Patented technology ensures 99.8% of 254 nm UV light is reflected within the chamber, enhancing the system's performance. The model is compact, reducing the footprint by 75% compared to conventional counterparts, and it houses two 28-inch high-output lamps for optimal efficiency. Operating with 120V or 230V single-phase power, the system is energy-efficient, using up to 75% less energy. Its design allows for installation flexibility with both vertical and horizontal mounting options and requires minimal maintenance. The chambers can be controlled using the RefleX Controllers, which provide real-time information and the ability to manage up to four units simultaneously. Certified by NSF 50 and NSF 61, the system includes features for easy lamp changes and real-time dosimetry, making it suitable for various applications including pharmaceuticals, microelectronics, and water remediation.

The NeoTech D438 is specially designed to disinfect water and is an essential component in advanced oxidation processes. This high-efficiency UV system utilizes NeoTech Aqua’s patented ReFleX chamber technology, reflecting over 99% of the 254nm UV generated. It is the highest efficiency, smallest footprint, and lowest operating cost UV system in the water treatment industry. With only two thirty-eight inch lamps, the D438 provides users the most convenient and lowest cost service schedule of any low pressure or medium pressure UV system today.

The NeoTech T222 is specially designed to remove TOCs in highpurity water treatment applications. This high-efficiency UV system utilizes NeoTech Aqua’s patented ReFleX chamber technology, reflecting over 99% of the 254nm UV generated. Further, its unique design maximizes the exposure of TOCs to the 185nm wavelength UV light that the unit generates. It is the highest efficiency, smallest footprint, and lowest operating cost UV system in the water treatment industry.

The NeoTech T228 is specially designed to remove TOCs in highpurity water treatment applications. This high-efficiency UV system utilizes NeoTech Aqua’s patented ReFleX chamber technology, reflecting over 99% of the 254nm UV generated. Further, its unique design maximizes the exposure of TOCs to the 185nm wavelength UV light that the unit generates. It is the highest efficiency, smallest footprint, and lowest operating cost UV system in the water treatment industry. With only a single twenty-eight inch lamp,the T228 provides users the most convenient and lowest cost service schedule of any low pressure UV system.
