Rembe GmbH products

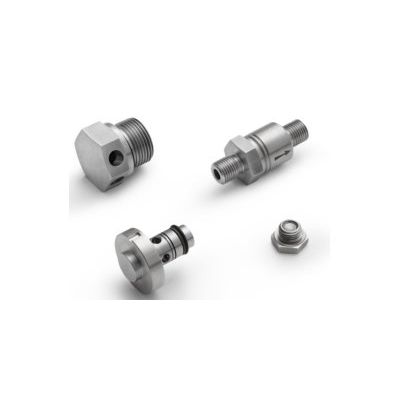

Plug type rupture discs are used for to provide protection against overpressure and vacuum in hydraulic, pneumatic and low temperature or refrigeration systems, nuclear, offshore, pharmaceutical and chemical plants and even in space applications. For medium to high pressures, depending on the design and application, the burst membrane can be welded without additional materials or fixed in position using a special manufacturing welding application. For applications at low pressures and low leakage rates, the membrane is only laser-welded to protect the material.

Extruder rupture discs from REMBE are used in a variety of extruders as well as in plastics processing machines. Pressures of several 1.000 barg and temperatures of up to 600 °C are not uncommon in these applications. The special gas-tight soldered or welded rupture disc membrane is installed directly at the extruder screw. This eliminates the risk of dead spaces where residues can accumulate. All standard connections/bores for pressure transducers or probes on plastic extruders can be protected by REMBE^® rupture discs. This type of rupture disc can be fitted with an integrated signalling device as an optional feature.
