Rembe GmbH products

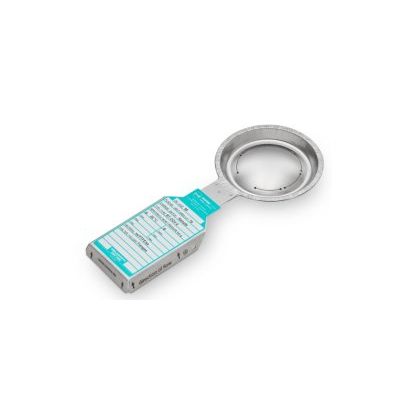

STAR is a three-section solution primarily used in applications with low to high response pressures, especially in the oil and  gas industry, petrochemicals and chemicals, applications with liquified gases and processes that involve pressure cycling. The standard operating ratio is up to 80 %* of the minimum response pressure. Extremely tight tolerances of +/- 5 % are possible. For applications with a burst pressure of less than 1 barg, STAR can be installed directly between flanges.

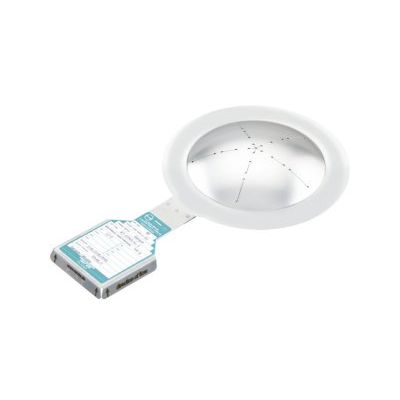

ODV is primarily used for applications with low to medium pressures, e.g. for gases, liquids and applications with two-phase flows. The disc has a standard operating ratio of max. 80 %. For burst pressures of less than 1 barg, ODV can be installed directly between flanges or angular rings. ODV has a three-layer design: The burst element is located on the side facing away from the process to protect it against corrosive media. The breaking points are cut into the burst element using lasers and define the burst pressure with outstanding precision. The sealing element isolates the burst element from the process. On the process side, the integrated vacuum support ensures the process is safe even when operating with full vacuum.
