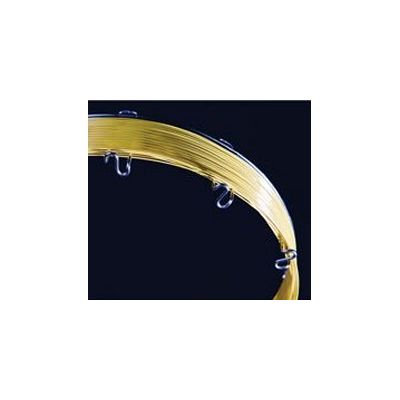

Advantages of Metal MXT PLOT columns include: Can be made in small coil diameters—perfect for tight spaces. Rugged material withstands rough handling and shock. Designed for robust performance in process GCs and field instruments. Available in 3.5″ coil diameter or 7″ diameter 11-pin cage.

Advantages of Metal MXT PLOT columns include: Can be made in small coil diameters—perfect for tight spaces. Rugged material withstands rough handling and shock. Designed for robust performance in process GCs and field instruments. Available in 3.5″ coil diameter or 7″ diameter 11-pin cage.

Optimized deactivation produces maximum response when analyzing trace levels of acetylene, methyl acetylene, and propadiene. Stable response factors make this column ideal for process-type applications where recalibration must be minimized.  High loadability reduces peak tailing and improves separations. Extended temperature range up to 250 °C for fast elution of high molecular weight (HMW) hydrocarbons and accelerated column regeneration following exposure to water.  Metal Siltek-treated tubing is incredibly durable, allowing MXT columns to be tightly coiled without breaking for use in smaller GC ovens. MXT-Alumina BOND/MAPD PLOT columns are made specifically for the analysis of petrochemicals and downstream products such as ethylene, propylene, butylenes, and butadiene!

Optimized deactivation produces maximum response when analyzing trace levels of acetylene, methyl acetylene, and propadiene. Stable response factors make this column ideal for process-type applications where recalibration must be minimized.  High loadability reduces peak tailing and improves separations. Extended temperature range up to 250 °C for fast elution of high molecular weight (HMW) hydrocarbons and accelerated column regeneration following exposure to water. Rt-Alumina BOND/MAPD PLOT columns are made specifically for the analysis of petrochemicals and downstream products such as ethylene, propylene, butylenes, and butadiene.

Improved inertness for chlorofluorocarbon (CFC)-type compounds. Highly selective alumina-based column, separates most CFCs. High retention and capacity for CFCs.

Divinylbenzene ethylene glycol/dimethylacrylate Polar PLOT column, incorporating divinylbenzene ethylene glycol/dimethylacrylate. Use for the analysis of polar and nonpolar compounds.

Divinylbenzene 4-vinylpyridine Midpolarity PLOT column, incorporating high 4-vinyl pyridine. Use for the analysis of nonpolar and polar compounds.

100% divinylbenzene Nonpolar PLOT column incorporating 100% divinyl benzene. Excellent for analysis of C1 to C3 isomers and alkanes up to C12. High retention for CO2 simplifies gas analysis; CO2 and methane separated from O2/N2/CO (Note: O2/N2/CO not separated at room temperature). Use for analysis of oxygenated compounds and solvents. Maximum temperature of 300 °C.
