RION Co., Ltd. products

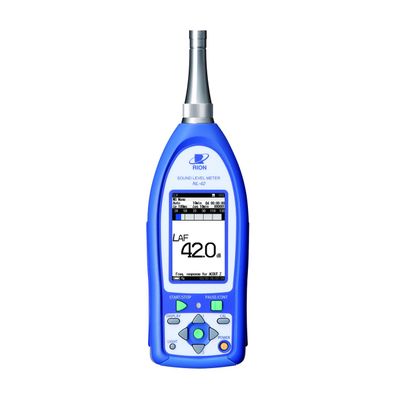

The NL-52 and NL-42 were developed to eliminate the trouble of reading instruction manuals when conducting measurements. Large and easily viewable three-inch LCD color display. The unit (except for the microphone) is water-resistant, which means that it is unaffected by sudden rain showers. You can use rechargeable batteries to help cut down on waste, making this an environmentally friendly product.

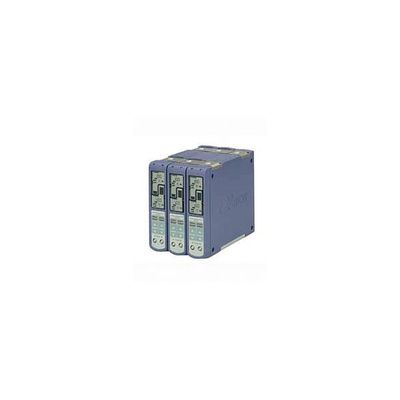

The UN-14 is a unit-type amplifier for connection of various microphones. Each unit has the width of 36 mm and can be connected to a maximum of 16 units for 16-channel measurement. It is a highly expandable sound pressure amplifier that can be mixed and connected to the optional UV-15 vibration meter unit and controlled from a PC by connecting it to the UV-22 interface unit. Each unit is equipped with a display, enabling the sound pressure level to be checked in real time, and the A-weighting characteristic is also provided as a frequency weight, making it suitable for noise measurement. These amplifiers are mainly suitable for integration into production lines and testing equipment.

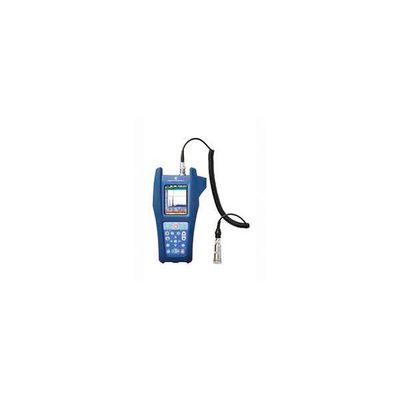

Portable vibration analyzer for Equipment Diagnosis and On-site Measurements Vibration Meter VA-12 With FFT analysis function. In vibration meter mode, acceleration, velocity, displacement, acceleration peak, and acceleration crest factor can be measured simultaneously. In time waveform mode, the waveform of acceleration, velocity, displacement or acceleration envelope curve can be displayed with up to 8192 samples. In FFT mode, the frequency analysis of acceleration, velocity, displacement or acceleration envelope curve can be displayed with up to 3200 spectral lines.

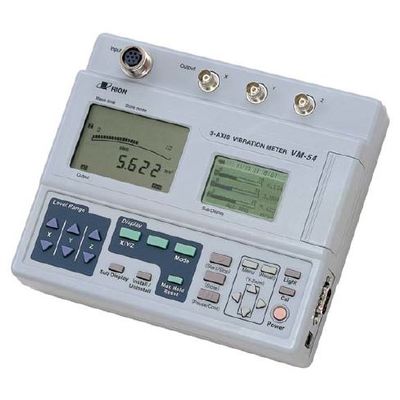

The VM-54 is a vibration meter capable of measuring acceleration in three axes X, Y, Z. Two measurement modes are available, namely instantaneous value and maximum value hold. AC outputs for X, Y, Z allow connection of a general-application data recorder or a DAT recorder. The optional Marine Vibration Card VX-54WS as well as other option program cards for hand-arm vibration measurement and whole-body vibration measurement enable use for a wide range of applications to evaluate the infl uence of vibrations upon humans.

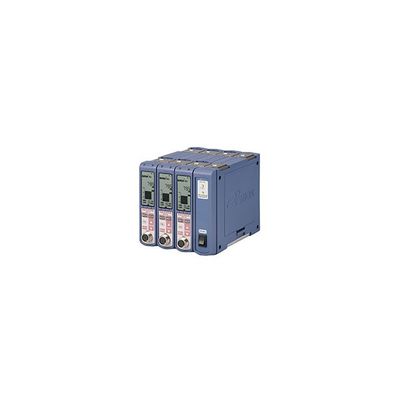

The UV-16 is a charge amplifier with 2-channel inputs per unit; each unit has a low-profile design with a width of 36 mm and can link up to 16 units and measure 32 channels. A display on the front provides information on the measuring range and the amount of signal being input with a bar indicator. An analogue output for each channel is provided on the rear panel for voltage output to a later stage measuring instrument or data logger. This amplifier is ideal for properly amplifying accelerometer signals and for logging with good SN.

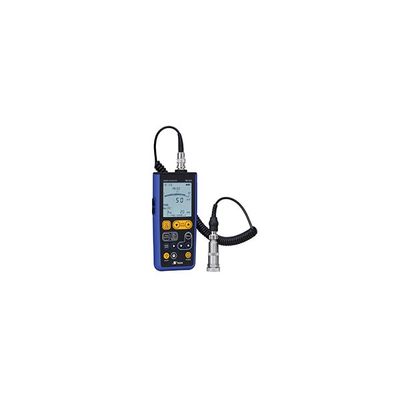

The general-purpose vibration meter VM-82A is designed mainly for maintenance and inspection of industrial machinery, with particular emphasis on rotational machinery. Acceleration, velocity, and displacement can be easily measured using a suitable frequency range, allowing comprehensive and precise evaluation of machine vibrations.

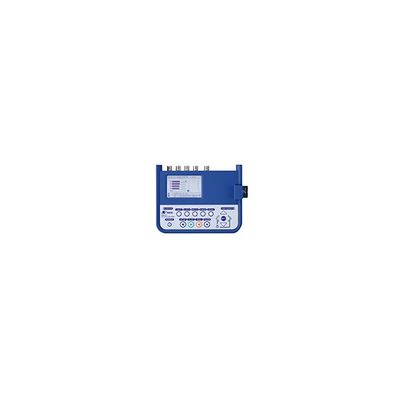

The 4 channel Data Recorder DA-21 is capable of recording acoustic / vibration waveforms and various electrical signals in the field. Recorded data are saved in WAVE format on SD cards and can be imported into a computer for waveform analysis and other processing tasks. It is also possible to expand the number of channels up to 8 by connecting two units together. Signals recorded on the SD card can be analysed and processed using the supplied software or the AS-70.

Supports various measurements. No more long cables. No more wiring installation! We can propose the most suitable measurement you require.

Condenser microphone has excellent features, in its frequency response, stability and so on. Therefore, it is mainly used for measurement.
