RION - Model RIONOTE -Portable Multi-Function Real-Time Measuring System

SHARE

Supports various measurements. No more long cables. No more wiring installation! We can propose the most suitable measurement you require.

Most popular related searches
vibration analysis program
remote monitoring
vibration analysis
waterproofing
accelerometer
ion exchange

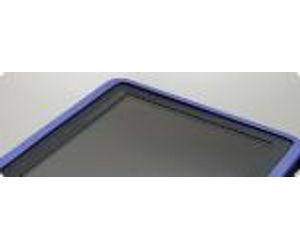

Color LCD touch screen allows intuitive operation.

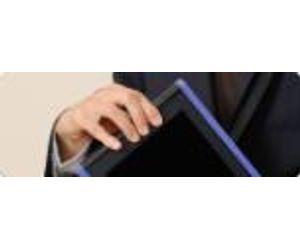

B5 size ideal for measurements in the field. Light weight: only 1.2 kg including amplifier and battery.

Removable lithium-ion battery can be exchanged in the field.

IPX54 waterproof rating for main unit.

Support for wireless measurements eliminates need for cumbersome cabling on site.

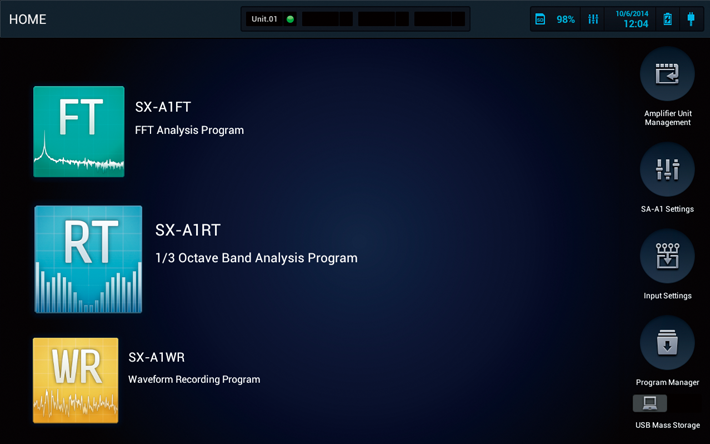

RIONOTE intuitive user interface

  • Lets the user select the required program for the respective purpose:
  • SX-A1FT (FFT analysis), SX-A1RT (octave band analysis), or

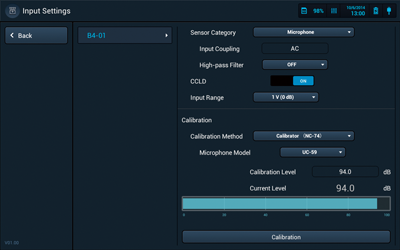

  • SX-A1WR (waveform recording). The right side of the screen provides access to various settings.

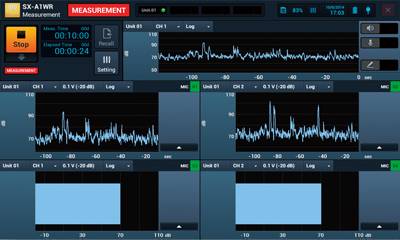

By using the waveform recording program, it is possible to display and record the time waveform of the incoming signal(s). Available recording time depends on the number of input channels and the selected frequency range. The figure below shows a time waveform displayed on the screen of the Main Control Unit.

Product name: Product number

  • RIONOTE 2 channel FFT Analyzer: SA-A1FTB2
  • RIONOTE 4 channel FFT Analyzer: SA-A1FTB4
  • RIONOTE 2 channel Octave Analyzer: SA-A1RTB2
  • RIONOTE 4 channel Octave Analyzer: SA-A1RTB4
  • RIONOTE 2 channel Frequency Analyzer (FFT and Octave): SA-A1FTRTB2
  • RIONOTE 4 channel Frequency Analyzer (FFT and Octave): SA-A1FTRTB4
  • RIONOTE Program for FFT Analysis: SX-A1FT
  • RIONOTE Program for 1/3 Octave Analysis: SX-A1RT
  • Judgement Program (Pass/Fail Evaluation): SX-A1CMP
  • Vibration Analysis Program: SX-A1VA
  • Order Tracking Program: CAT-SAA1-ORDTRK

Options

  • Product name: Product number
  • Wireless Dock: SA-A1WD
  • Lithium-ion Rechargeable Battery (spare): BP-30
  • 32 GB SD Card: MC-32SP3
  • 2 GB SD Card: MC-20SD2
  • Voice Memo Microphone: BSHSM03BK
  • Monitor Earphone: ATH-C320-BK
  • Shoulder Belt: VA-12015
  • Carrying Case: SAA10660
  • LCD Protector: 59SA5000
  • RIONOTE Desktop Stand: SA-A1S36
  • LCD Protector: -
  • CCLD 4 mA Modification (factory option): -
