ROSS Companies | Automatic Valve products

Directional Control Valves - Direct Operated Solenoid Valves

Model K02-004 - Direct Operated Solenoid Valves

Single 3/2 with spring return. 1/8” & ¼” port options. AC & DC solenoid coil options. Weather-Proof options are IP65 rated. Explosion-Proof options are CSA & FM approved and ATEX Compliant.

Directional Control Valves - SAE Valves

Model 407B12S39A-AA - SAE Valves

Conforms to SAE J2051 specifications for series 125, 250 and 1000. Flow Range of 2 to 20 Cv. Complete range of bases and operators available.

Directional Control Valves - ISO 5599-1 Valves

Model I1500AAAR - ISO 5599-1 Valves

Wide variety of options and operators available. Conforms to ISO 5599/1specifications for size 1, 2 and 3. SIL Certified.

Directional Control Valves

Pilot Poppet Valves with DIN & M12 Connection

For Standard, Low, and High Temperature Applications. Port Sizes 1/4”- 1-1/2”. High-flow and Positive Sealing. Fast and Consistent Response Times. No-stick Operation. Self-cleaning and Strong Dirt Tolerance. Long-life.

Pilot Poppet Vacuum Valves with DIN & M12 Connection

NAMUR Interface

Model D0603GAWR - NAMUR Interface Valve

Single 5/2 with spring return. Left & right side solenoid options. AC & DC solenoid coil options. Weather-Proof options are IP65 rated. Explosion-Proof options are CSA & FM approved and ATEX Compliant. SIL Certified. Additional models available, please view downloadable literature.

Model D0603GAWR-AA - NAMUR Interface Valve

Manual & Mechanical Valves - Foot Pedal

Model L2003AAKR - Foot Pedal

3/2 & 5/2 spring return and detented options. In-line mount. 1/4", 3/8", and 1/2" ports. Spool construction.

Manual & Mechanical Valves - Cam Roller

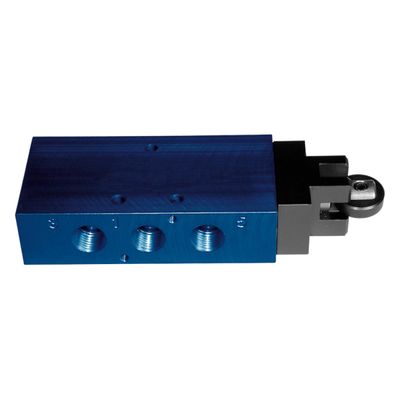

Model L2003AAJR - Cam Roller

5/2 spring return. In-line mount. Spool construction. 1/4" & 3/8" port sizes.

Directional Control Valves - Compact Spool Valves

Model L0502AAAR - Compact Spool Valves

1/8”, 1/4”, 3/8", 1/2" & 1” port options. Air pilot & solenoid pilot options. Single & Double 5/2, Double 5/3. Weather-Proof options are IP65 rated. Explosion-Proof options are CSA & FM approved and ATEX Compliant. SIL Certified. Additional models available, please view downloadable literature.
