Rotek A/S products

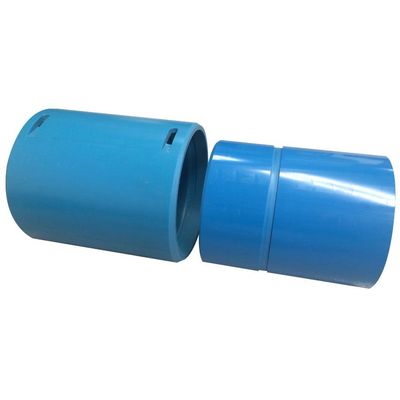

RSC casing pipes and screens with VA-approved couplers. The RSC is a unique system with double-socket couplers ensuring a guaranteed tight seal of PVC casings and screens. The socket system is easy and quick to install and the special locking strips prevent faulty installation. The RSC system is developed by Rotek together with the Danish Well-Drillers Association, and it was VA-approved in 2016.

PVC casing pipes and screens DIN4925 certified; the German norm Well screens and casings of unplasticized polyvinylchloride (PVC-U) for tube wells”.

PVC casing pipes and screens with flush joint thread.

PVC socket pipe PN6 for glue joining. More dimensions, lengths and slot sizes on request.

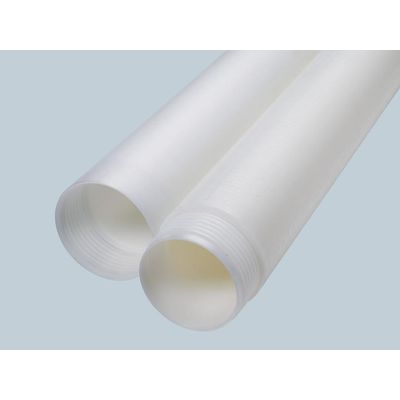

Uncoloured HDPE pipes and screens according EN12201 and KIWA certified  according to KQ-56, which describes the demands for pipes and screens used for environmental wells. The pipes are supplied with flush joint threads. More dimensions, lengths and slot sizes available upon request.

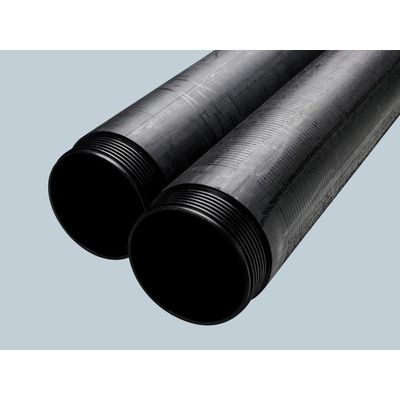

Black PE100, SDR 17 pipes and screens with flush joint threads. Available in dimensions up to Ø355mm. More dimensions, lengths, colours, slot sizes, and thread types upon request.

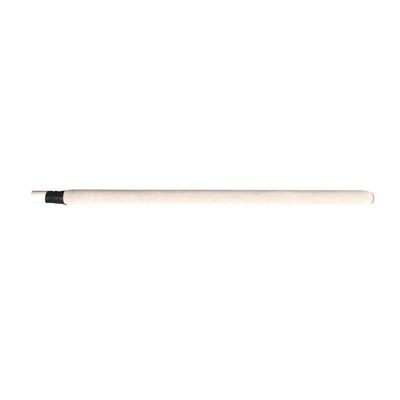

Q-filters are PE or PVC filters, slot 0,3mm, mounted with filter gauze and filter sand (quartz sand nr. 2, grain size 0,71-1,25mm). The filters are supplied with Rotek standard trapezoidal thread, which fit with both our bentonite-pipes and our regular KIWA PE pipes and screens.

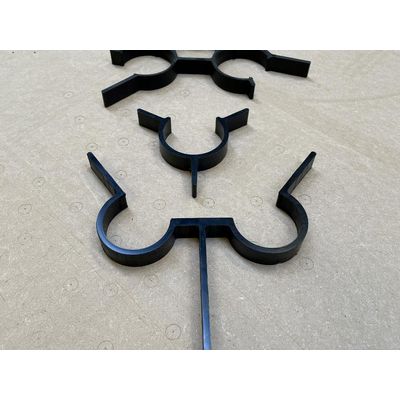

Rotek A/S centralizers for centering pipes. Available in other wall thicknesses, lengths and widths on request.

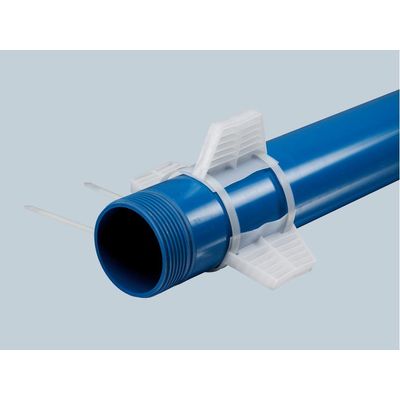

Centralizers in uncoloured PP for all type of pipes. Mounting with strips. These centralizers are available in 2 versions; One is used for pipes from Ø 63mm to Ø 225mm and can be individually positioned from 20mm to 70mm height. The other is used for pipes from Ø 225mm to Ø 450mm and can be individually positioned from 20mm to 140mm. 1 set consists of 3 centralizer blocks and 2 strips.

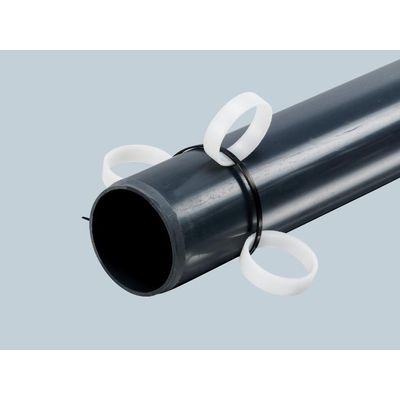

Centralizers in uncoloured PEH for all types of pipes. Mounting with a single strip. The centralizers are delivered in 2 versions; One is used for pipes from Ø 32mm to Ø 63mm. The other is used for pipes from Ø 75mm to Ø 125mm. 1 set consists of 3 centralizer rings and 1 strip.
