Rpmtech Co., Ltd. products

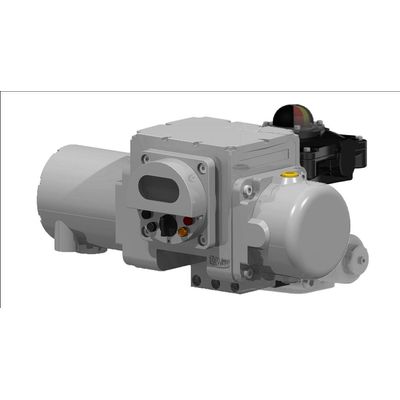

RPMTECH`s MHP Quarter-Turn Series products are Electro-Hydraulic Actuators built for quarter-turn valves (Butterfly Valves, Ball Valves, Plug Valves, etc.). The MHP Quarter-Turn Series is a compact, all-in-one solution that is capable of advanced control modes and supports various types of installation (separate installation of the MHP Power-pack and the hydraulic cylinder) for maximum versatility. The actuators do not require a gearbox (the cause of many breakages) allowing for direct and efficient delivery of power for reliable use.

RPMTECH`s DHP Quarter-Turn Series products are Electro-Hydraulic Actuators built for quarter-turn valves (Butterfly Valves, Ball Valves, Plug Valves, etc.). The DHP Quarter-Turn Series is a compact, all-in-one solution that is capable of advanced control modes and supports various types of installation (separate installation of the DHP Power-pack and the hydraulic cylinder) for maximum versatility. The actuators do not require a gearbox (the cause of many breakages) allowing for direct and efficient delivery of power for reliable use.  The DHP Quarter-Turn Series is equipped with two motor pumps, which translates to twice the speed of the MHP Quarter-Turn Series.

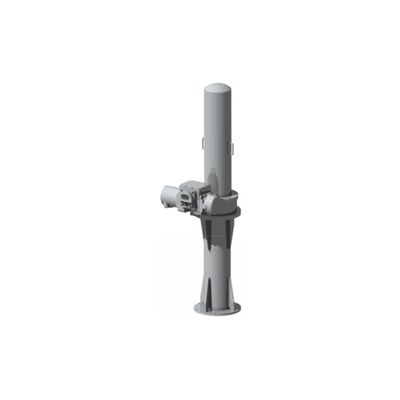

RPMTECH`s MHP Linear Series products are Electro-Hydraulic Actuators built for linear valves (Gate Valves, Globe Valves, etc.). The MHP Linear Series is a compact, all-in-one solution that is capable of advanced control modes and supports various types of installation (separate installation of the MHP Power-pack and the hydraulic cylinder) for maximum versatility. The actuators do not require a gearbox (the cause of many breakages) allowing for direct and efficient delivery of power for reliable use.

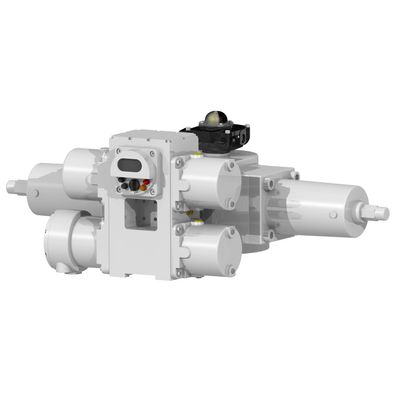

RPMTECH`s DHP Linear Series products are Electro-Hydraulic Actuators built for linear valves (Gate Valves, Globe Valves, etc.). The DHP Linear Series is a compact, all-in-one solution that is capable of advanced control modes and supports various types of installation (separate installation of the DHP Power-pack and the hydraulic cylinder) for maximum versatility. The actuators do not require a gearbox (the cause of many breakages) allowing for direct and efficient delivery of power for reliable use.  The DHP Linear Series is equipped with two motor pumps, which translates to twice the speed of the MHP Quarter-Turn Series.

RPMTECH`s MHP Multi-Turn Series products are Electro-Hydraulic Actuators built for multi-turn valves (Gate Valves, Globe Valves, etc.). The MHP Multi-Turn Series is a compact, all-in-one solution that is capable of advanced control modes for maximum versatility.

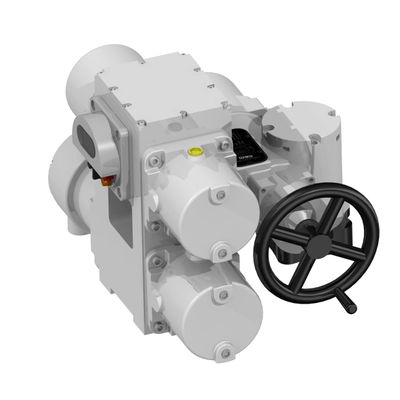

RPMTECH`s DHP Multi-Turn Series products are Electro-Hydraulic Actuators built for multi-turn valves (Gate Valves, Globe Valves, etc.). The DHP Multi-Turn Series is a compact, all-in-one solution that is capable of advanced control modes for maximum versatility. The DHP Multi-Turn Series is equipped with two motor pumps, which translates to twice the speed of the MHP Quarter-Turn Series.

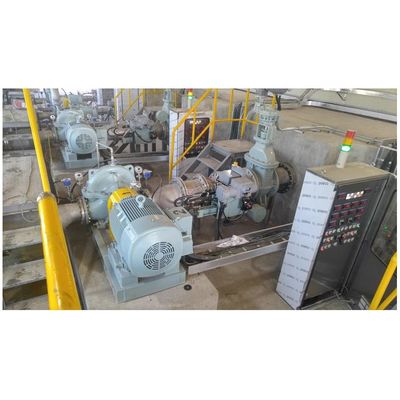

RPMTECH`s Pump Control Valve (PCV) System is comprised of a fail-safe MHP (or DHP) Quarter-Turn Actuator attached to a quarter-turn valve. It is a compact, all-in-one solution that is capable of advanced control modes and fail-safe features optimized for Motor Pumps of any size. The actuators do not require a gearbox (the cause of many breakages) allowing for direct and efficient delivery of power for reliable use. Also, the PCV System is capable of detecting the motor pump`s on//off status to prevent any backflow of the internal fluid to the pump. This system does not require a swing check valve or a surge tank.

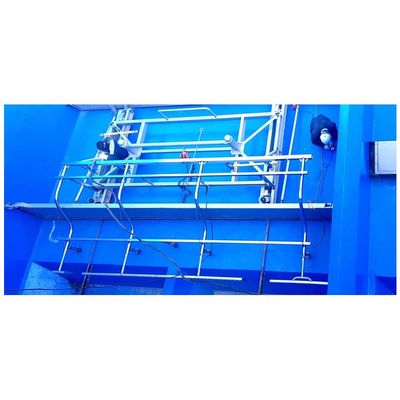

RPMTECH`s Sludge Drainage System is comprised of an efficient auxiliary scrapper (attachment) and a fail-safe MHP (or DHP) Quarter-Turn Actuator (s) attached to a segmented ball valve. The auxiliary scraper attachment and the immediate opening/closing of the ball valve allows for resistance-free (Rabbit-Hole-free) drainage, which helps reduce sludge solidification within the hopper. Also, the actuator is equipped with advanced control modes optimized for efficient drainage and valve disk protection.
