R.R. Equipment Company products

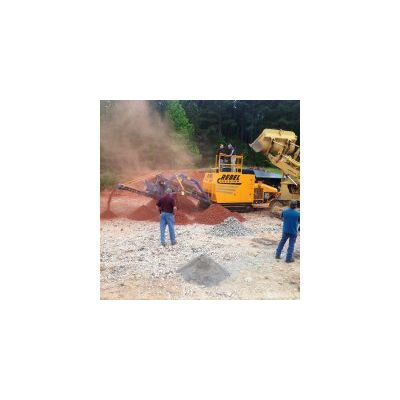

The design and features of the rebel crusher are based on years of experience, your input and today’s challenges. Our jaw crusher can do what an impact crusher can do without all the negative side effects of an impact crusher. A huge feed opening reduces material preparation time. The rebel crusher produces beautiful quality product(s) without excessive fines. An energy efficient diesel burns less fuel than any other crusher/screener. A “swiss army knife concept”- loaded with features! Able to tackle any job! Incredible mobility! Transport the rebel crusher anywhere legally with no transport permit! Track and move on site using radio remote control. Unmatched versatility! The rebel crusher is fully adjustable to adapt to various applications and requirements.

Versatile, mobile, simple and easy to operate!, one man operation, efficient, crushes anything!, produces beautiful spec material, easy to maintain, reversible and replaceable wear parts, can split in half for maintenance or transport, mounts on excavators from 20-25-30-45 tons, uses existing excavator hydraulics/hammer kit (*most cases), inexpensive, made in USA.

Available with your choice of Horizontal (5′ x 16′  – 6′ x 20′) or Incline (4′ x 10′ – 6′ x 20′). 2 or 3-Deck Screens. Wet or Dry. Complete with hydraulic drive. Radio-remote control. Diesel “turn-key”. Discharge chutes and under screen hopper. Deutz Diesel or similar power unit with hydraulic power pack.  Hydraulic reservoir, lines, valves, filters all positioned for ease of maintenance and accessibility. Guards, fuel tank, gauges for diesel. Cleaned, painted and ready to run.

The ALL NEW PORTABLE CRUSHKING® JAW PLANT  is one of our most versatile and powerful products. The unit affords all of the strength and ease-of-use as a normal jaw crusher, but with a greater output capacity than smaller, stationary crushers. The PORTABLE CRUSHKING® JAW PLANT is electric powered, and it is easy to transport, and capable of being pulled behind most dump trucks. This crusher also comes with a magnetic separator and a side dirt belt, perfect for removing steel and other unwanted material from your finished product.

GIGANTIC 32″ x 42″ FEED OPENING Jaw Crusher: Complete with V-Belt drives, and adjustable motor base. The jaw crusher has separate Hydraulic Power pack which allows for simple hydraulic adjustment. A “TURN KEY DESIGN” INCLUDES A NEW approx. 350 HP JOHN DEERE(OR EQUIVALENT) DIESEL POWER PLANT with HEAVY DUTY HYDRAULIC POWER PACK. “NO CLUTCH DESIGN”. 42″ X approx. 25′ Under Crusher front discharge conveyor,Complete with hydraulic power.

36″ & 54″ (4 1/4′) Sizes Available, Open Circuit Design Features Belt Feeder In Place Of Screen, John Deere Diesel, American Hydraulics, Highly Mobile, Low Profile Design Allows Easy Over The Road Transport, Crushes Hard Rock Or Recycles, Adjustable Discharge Settings, Produces Two Finished Products, On Board Screen, Allows Material To Be Screened Prior To Entering Cone, Screen Maximizes Efficiency By Limiting What Material Goes Into Cone.

22” x 36” Jaw Crusher Complete with V-Belt drives, 38” X 12’ Vibrating Grizzly Feeder: Complete with V-Belt drives, 20HP  TEFC electric motor (220/440 Volts, 3 phase, 60 cycle.) and adjustable motor base.  Bypass chute under grizzly feeder. Heavy Duty fabricated Rock hopper made from plate steel. Low profile design mounted independent of feeder AND removable.  Heavy Duty supports and cross bracing. 30” X  approx. 30’ Under Crusher front discharge conveyor, Complete with 15HP electric motor, 220/440 Volts, 3 phase, 60 cycle and gear reducer. Heavy Duty impact idlers and super duty slider impact bed at load point under crusher.”Heavy Duty Tandem Axle Chassis”. Approx. 21” I-BEAM construction with heavy duty support legs in front and rear. Fifth wheel pin.

36″ & 54″ (4 1/4′) Sizes Available, Parts Interchangeable w/Symons/Nordberg Cones, Choice Of Inclined Or Horizontal Screens (Various Sizes), Electric Or Diesel, Easy Transport & Rapid Set-Up, Hydraulic Adjust, Lock & Tramp Iron Relief, Optional Magnet, Hydraulic Legs & Side Conveyor, Crushes Hard Rock Or Recycles, Adjustable Discharge Settings, Low Maintenance, Heavy Duty Bronze Bushings.

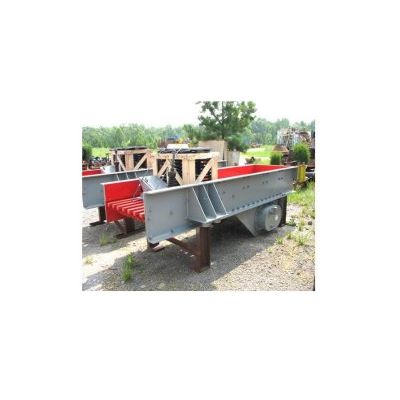

Heavy duty pan deck with optional replaceable liner. Extra deep side sections. Adjustable tapered grizzly bars. Bearings are interchangeable with standard over the counter skf us bearings. All feeders come complete with mounting springs, base plates that go under springs and pivoting motor base. Motor and motor drive are optional.
