CRUSHKING - Mobile / Track – Jaw

CRUSHKING - Mobile / Track – Jaw

FromR.R. Equipment Company

SHARE

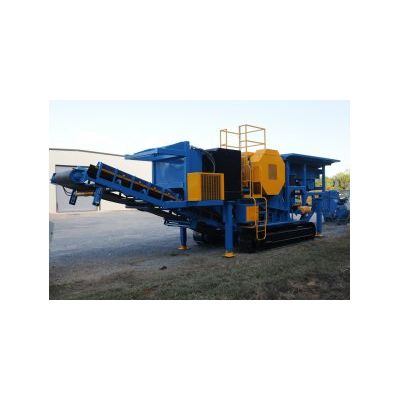

GIGANTIC 32″ x 42″ FEED OPENING Jaw Crusher: Complete with V-Belt drives, and adjustable motor base. The jaw crusher has separate Hydraulic Power pack which allows for simple hydraulic adjustment. A “TURN KEY DESIGN” INCLUDES A NEW approx. 350 HP JOHN DEERE(OR EQUIVALENT) DIESEL POWER PLANT with HEAVY DUTY HYDRAULIC POWER PACK. “NO CLUTCH DESIGN”. 42″ X approx. 25′ Under Crusher front discharge conveyor,Complete with hydraulic power.

Most popular related searches

radio remote control

vibrating grizzly feeder

concrete recycling

hydraulic cylinder

visual inspection

materials recycling

vibrating feeder

variable speed conveyor

hydraulic control system

22″ x 36″ FEED OPENING Jaw Crusher: Complete with VBelt drives, and adjustable motor base. The jaw crusher has separate Hydraulic Power pack which allows for simple hydraulic adjustment.
A “TURN KEY DESIGN” INCLUDES A NEW approx. 250 HP JOHN DEERE (OR EQUIVALENT) DIESEL POWER PLANT with HEAVY DUTY HYDRAULIC POWER PACK. “NO CLUTCH DESIGN”.
30″ X approx. 25′ Under Crusher front discharge conveyor,Complete with hydraulic power.

A bolt on HEAVY DUTY ROCK BOX is mounted over the jaw. It features a “hinged” cover that allows operators to open the cover for visual inspections without removing the rock box.
“RADIO REMOTE CONTROL OPERATION.” VARIABLE SPEED FEEDER, SIDE DISCHARGE CONVEYOR, FRONT DISCHARGE CONVEYOR, TRACK CONTROL AND CRUSHER OPERATION ALL OPERATE BY REMOTE!!!
COMPLETE Hydraulic system with reservoir. Hydraulics power any and all hydraulic cylinders and all hydraulic components
including the t rack drive system.
TRACK DRIVE SYSTEM hydraulically controlled from the RADIO REMOTE CONTROL.
38″ X 12′ Vibrating Grizzly Feeder: Hydraulic motor with drive attached to shaft on feeder. BYPASS CHUTE UNDER GRIZZLY FEEDER with UNIQUE “ANTI-CLOGGING” FEATURE.
HEAVY DUTY ROCK HOPPER made from Plate STEEL. Low profile design mounted independent of feeder AND REMOVABLE. Heavy Duty supports and cross bracing.
CATWALKS, LADDER(s), OPERATOR’S PLATFORM AND GUARDING.
One Primer Coat & Two Finish Coats of Paint
Primed & Painted with Rust Inhibiting Pai

Under Grizzly BYPASS CHUTE w / FLOP GATE. Gate can be opened or closed to allow material to fall onto the side conveyor or the front conveyor.
Under Grizzly Fines side delivery conveyor. Hydraulically folds for transport.
(4) FOUR Heavy Duty Hydraulic Leveling /Stabilizing Legs. Legs are hydraulically operated & feature unique swivel design for tracking or t ransport. The legs are bolted onto the main f rame and include feet / pads that are pinned onto the bottom of each. They can be pinned in place at the desired height.

New Cross Belt Self Cleaning Magnet w / hydraulic motor, separate valve control, fully plumbed and mounted over main conveyor (designed to handle re-bar of various sizes and general metallic debris from concrete recycle material).
Jaw can be REVERSED for ease of clearing crushing chamber.
