Schmalenberger GmbH Co. KG products

Multistage high pressure centrifugal pumps type ZHB are horizontally mounted pumps. They are characterized by a minimum space requirement. Optionally, this series can be equipped with two or three pressure outlets. The use of just one motor with multiple pressure outlets for different duty points results in minimal space requirements compared to the use of multiple pumps. Chemically neutral as well as aggressive media, e.g. alkaline solutions, acids, solvents and lubricants can be pumped easily.

Multistage high pressure centrifugal pumps type ZHS are vertically mounted pumps. They are characterized by a minimum space requirement. Optionally, this series can be equipped with two or three pressure outlets. The use of just one motor with multiple pressure outlets for different duty points results in minimal space requirements compared to the use of multiple pumps. Chemically neutral as well as aggressive media, e.g. alkaline solutions, solvents and lubricants can be pumped easily.

The free-flow immersion pumps type FZ are equipped with a recessed impeller that makes this model ideal for pumping media with high solids loading or abrasive media such as lubricants and waste water. These pumps are particularly suitable for the use in systems in which centrifugal pumps with closed or semi-open impellers would not be acceptable.

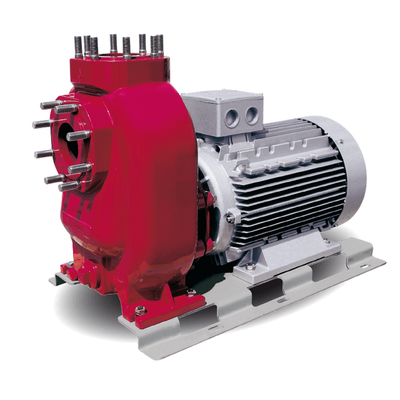

Self-priming centrifugal pumps of the series SM are single-stage horizontally mounted pumps. Because of their robust and durable design the SM pumps can be used in a wide variety of applications. With the numerous variations and options available the pumps fulfill efficiently different flow rates and pressure requirements. While pumping media with high solids loading, a suction height of up to 6 m can be reached effortlessly.

The quick suctioning immersion pumps type SZ are ideal for pumping media with high air inclusion such as emulsions, grinding and cutting oils. The impeller of the SZ is a combination of an open impeller and a compressor impeller, which allows the simultaneous transport of air and media with solids loading. This makes the SZ pump the ideal quick suctioning immersion pump for almost all processes in grinding technology and heavy machining. Due to the open impeller design, foreign particles up to a diameter of 20 mm can be pumped easily. Schmalenberger offers these pump series for flow rates of 50 to 1,800 l/min and for delivery heads up to 50 m. A maintenance-free silicon carbide throttling bush sealing provides the necessary shaft sealing and guiding.

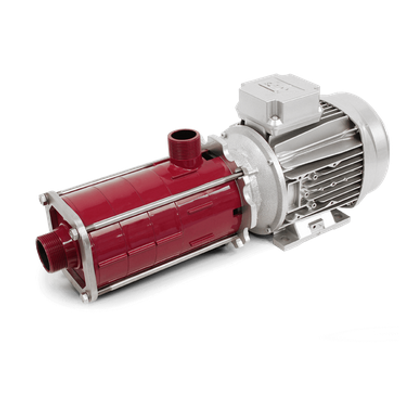

The multistage centrifugal pump series KSP has been developed for pumping clean media and media with slight solids loading such as water, emulsions and oils. Schmalenberger offers these pump types for flow rates of 25 to 150 l/min and delivery heads up to 100 m. This results in an extended application range in industrial installations and is ideally suited for use as a feed pump for filter systems, for pumping coolants and in cooling/temperature systems within the machining industry.

Multistage immersion pumps type ZHT are characterized by a robust and durable design and can be used in a wide variety of applications. They are ideal for pumping clean media or media with slight solids loading, such as lubricants, alkaline solutions and solvents used in washing, cleaning, degreasing, pickling and phosphating. Optionally, this series can be equipped with two or three pressure outlets. The use of just one motor with multiple pressure outlets for different duty points results in minimal space requirements.

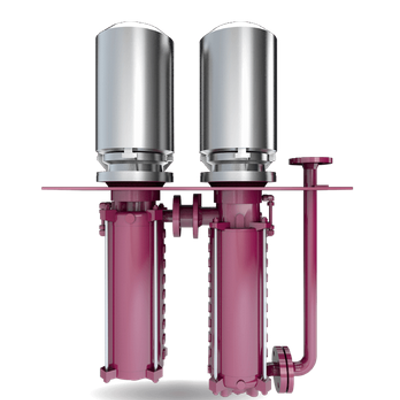

Multistage immersion pumps type DUO are characterized by a robust and durable design and can be used in a wide variety of applications. They are ideal for pumping clean media or media with slight solids loading such as lubricants, alkaline solutions and solvents used in washing, cleaning, degreasing, pickling and phosphating. The pump series DUO can be operated with variable speed drives. Optionally, this series can be equipped with two or three pressure outlets. The use of just one motor with multiple pressure outlets for different duty points results in minimal space requirements.
