Schmalenberger - Model Type NB -Standardised Centrifugal Pumps

FromSchmalenberger GmbH Co. KG

SHARE

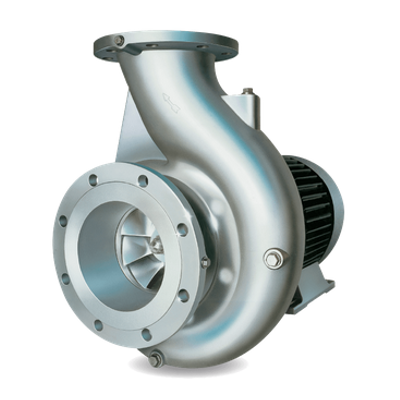

Standardized centrifugal pumps type NB are single-stage horizontally mounted pumps. They are characterized by a maintenance-friendly design and can be used in a wide variety of applications. 18 sizes are available to make your design as efficient as possible. Chemically neutral as well as aggressive media, e.g. alkaline solutions, acids, solvents and lubricants can be pumped easily.

Most popular related searches

centrifugal pumping

centrifugal pump

swimming pool technology

horizontal centrifugal pumping

horizontal centrifugal pump

horizontal single stage pump

environmental processing system

Robust design
Minimal space requirements
Individually configurable
Maintenance-friendly design
High reliability
Characteristic field extendable with the use of a variable speed drive
Free ball passage up to 22 mm
Also available with 4-pole motor

For clean media or media with slight solids loading
Flow rate up to 450 m³/h
Delivery head up to 100 m
Material options: cast iron / stainless steel (316L)
Various sealing options
Connection dimensions according to DIN EN 22858
Block design or with bearing carrier for standard motors
Optional dry run protection or sealing chamber
Motors: up to 3 kW 230/400 V 50 Hz, from 4 kW 400/690 V 50 Hz, 460 V 60 Hz, other voltages on request

Circulating and supply pump for machine tools
Filter technology
Surface technology
Process engineering
Environmental technology
Swimming pool technology
