Schmersal, Inc. products

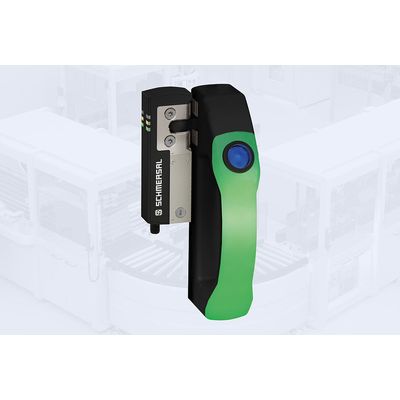

Model DHS - Door Handle System with RFID Sensor and Emergency Exit

The DHS door handle system combines the functionality of a robust door handle with integrated machine status indication through illumination in the handle itself. The system utilizes RGB LEDs capable of displaying seven different colors, which can be individually controlled to indicate specific machine conditions. Designed for integration into 40 mm profile systems, the DHS door handle also includes a customisable push button that can serve functions like reset or guard door request. The system is versatile, suitable either as a standalone solution or in combination with the AZM40 solenoid interlock or RSS260 safety sensor. Additionally, the AZM40 offers a notable locking force of 2,000 N, features an RFID sensor for unique coding options, and optional emergency exit or release mechanisms, among other capabilities. The BDF40 control panel complements these features with its slim profile and up to four control elements, including emergency stops and pushbuttons.

Machine Safety - Safety Controls - Safe Switching and Monitoring

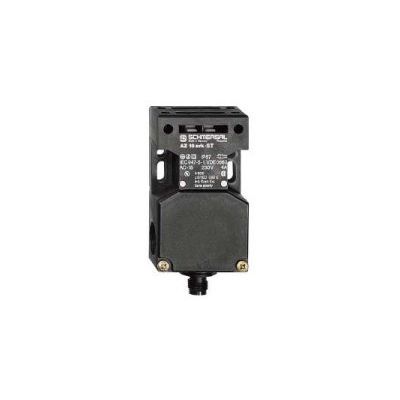

Schmersal - Model AZ 16-02ZVK-ST - Safety Switch with Separate Actuator

Thermoplastic enclosure. Double-insulated. Large wiring compartment. 52 mm x 90 mm x 30 mm. Multiple coding. Long life. High level of contact reliability with low voltages and currents. Insensitive to soiling. Slotted holes for adjustment, circular holes for location. 2 cable entries M 16 x 1.5. Connector M12, 4-pole.

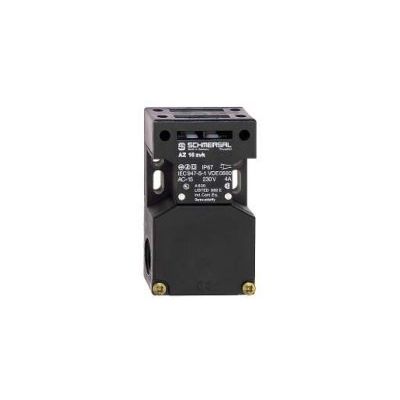

Schmersal - Model AZ 16-02ZVK - Safety Switch with Separate Actuator

3 cable entries M 16 x 1.5. Thermoplastic enclosure. Double-insulated . Large wiring compartment. 52 mm x 90 mm x 30 mm. Multiple coding. Long life. High level of contact reliability with low voltages and currents. Insensitive to soiling. Slotted holes for adjustment, circular holes for location.

Schmersal - Model AZ 15 ZVRK-ST - Safety Switch with Separate Actuator

Thermoplastic enclosure. Double-insulated . Long life. 52 mm x 75 mm x 30 mm. Multiple coding. Large wiring compartment. High level of contact reliability with low voltages and currents. Slotted holes for adjustment, circular holes for location. Insensitive to soiling. 2 cable entries M 16 x 1.5. Connector M12, 4-pole.

Schmersal - Model AZ 15 ZVRK - Safety Switch with Separate Actuator

Thermoplastic enclosure, double-insulated, Long life.

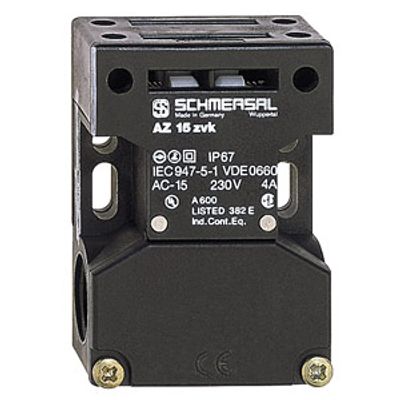

Schmersal - Model AZ 15 ZVK - Safety Switch with Separate Actuator

Thermoplastic enclosure, double-insulated, long life.

Innovation

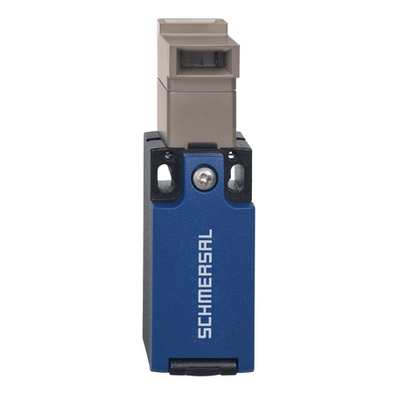

Schmersal - Model PS116 - Compact Limit Switch for Machine Components

The PS116 is an extremely versatile yet compact and robust limit switch for determining the position of movable machine components or machine guards that can be moved laterally or rotated.

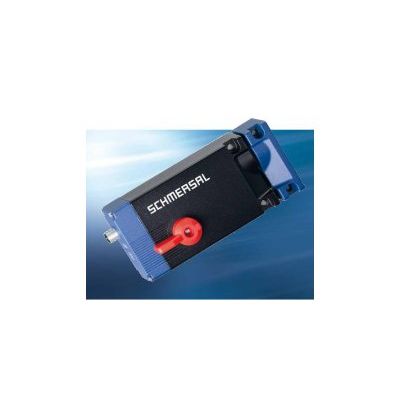

Schmersal - Model AZM400 - Safety Lock for CNC Processing Centers

Characteristic properties of the AZM400 include the very high holding force of 10,000 N, the bistable active principle and the electro-motorised locking bolt. This means that the new range is also suitable for very large, motor-powered safety doors, e.g. from CNC processing centres. The combination of electronics and sensors represents a high level of availability from the user`s perspective as well as interesting additional functions with a very high level of safety.

Schmersal - RFID Safety Sensor with Multiple Actuator

Schmersal has applied Radio-frequency identification (RFID) technology in the new RSS260 series electronic safety sensor. The RSS260 is designed for application in safety circuits monitoring the position of hinged, sliding or removable guards using a specifically coded, passive RFID tag in the actuator.

Safe Switching and Monitoring - Safety Switch With Separate Actuator

Schmersal - Model AZ 215 - Safety Switch With Separate Actuator

Metal enclosure. Design to EN 50047. Actuator heads can be repositioned in steps 4 x 90°. Different contact options. Latching force 12N or 30N depending on variant.
