Schneeberger Holding AG products

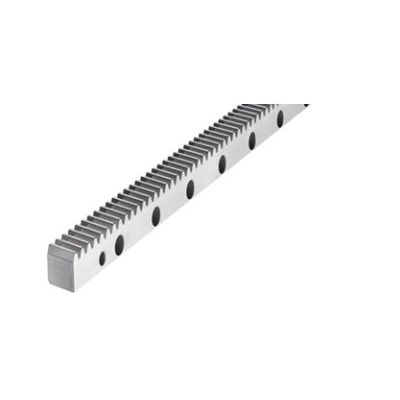

Straight and helical toothed gear racks are available in typical industrial dimensions from module 2 to module 12. Different materials, hardnesses and accuracy are available depending on the load to be applied.

MINI-X = Miniature guideways, MINIRAIL carriages with long-term lubrication LUBE-S, micro frictionless tables and integrated distance measuring system. Miniature guideways are compact and precise for maximum productivity. Maintenance free guideways - lubricant reservoir directly integrated into MINIRAIL carriages.

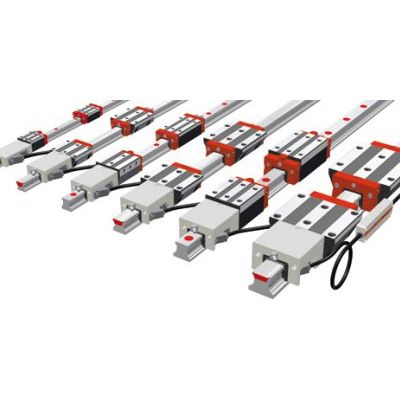

The profiled linear guideways that have been developed with integrated distance measuring systems provide cost-optimized solutions for a variety of applications, whilst meeting the highest quality requirements. The MONORAIL AMSD 4B is an integrated magneto-resistive measuring system for distance measurement based on the MONORAIL BM profile guideway with an incremental, digital interface. The AMSA 4B is the starting point for this product. The section rails are thus identical and are compatible with both AMSA 4B and AMSD 4B. The AMSD 4B version has an incremental, digital interface and a range of reading head options that permit different resolutions and allow the system to be adapted to control systems with different input frequencies.

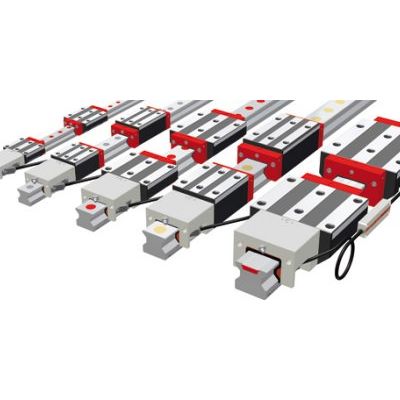

The integrated distance measuring system allows the machine to travel the most precise path whilst adhering to the strictest tolerances. When exact linear motions are required, the profiled linear guideways used must fulfil the highest quality requirements. In addition, extremely precise distance measurement is needed. With its integrated distance measuring systems for a variety of applications, Schneeberger offers cost-optimized solutions.

Magneto-resistive distance measuring system specially designed for applications in machine tools. Suitable solutions are available for a wide range of applications. This means that it is always possible to travel the most precise paths whilst adhering to the strictest tolerances.

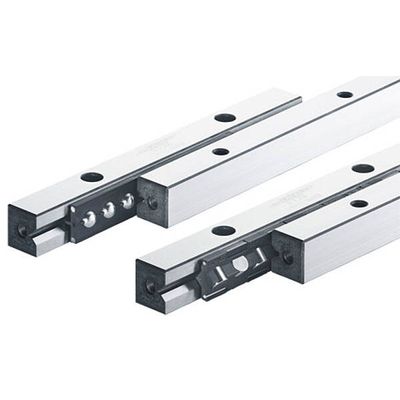

Cross-roller and ball guideways work effectively to master the medium to high requirements. SCHNEEBERGER introduced the R linear guideway/cross-roller guideway and ball guideway as the first standardized frictionless guideways in the world. SCHNEEBERGER introduced the R linear guideway/cross-roller guideway and ball guideway as the first standardized frictionless guideways in the world. The guideway can be equipped with rollers or balls and is suitable for many applications in the medium to high requirement range. In combination with SCHNEEBERGER recirculating units, it can be used to build guideways with any desired stroke.

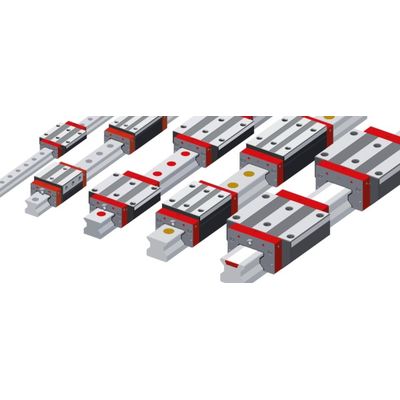

Roller guideway for the machine tool industry. The very precise MONORAIL profiled guideways are used worldwide in many machine tool applications. A widespread product program is covering the requirements from small manipulators till heavy chipping processes. High rigidity, great dynamic and static load carrying capacity, outstanding running smoothness and the total enclosure of the carriage are the main features of the MONORAIL guideway. These properties result in higher machining rates while enhancing geometrical accuracy and surface quality of the machined workpieces. Our highly rigid MONORAIL provides improved vibration behavior, smaller vibration amplitudes and thus extends tool life.

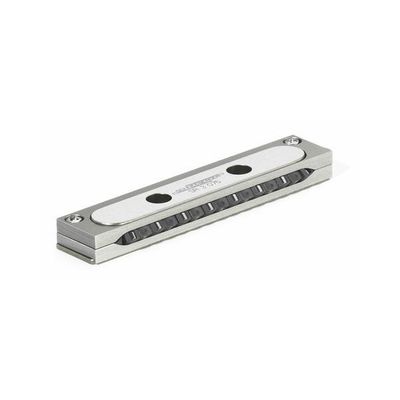

Rollers arranged crosswise for medium to high loads. Type SR recirculating unit has rollers that are arranged crosswise and is suitable for medium to high loads. In combination with SCHNEEBERGER Type R or RD linear guideways, it requires the same identical installed dimensions as Type SK, but provides greater loadcarrying capacity and rigidity. Sizes 2, 3, 6, 9, 12. Lengths 32 to 200 mm.

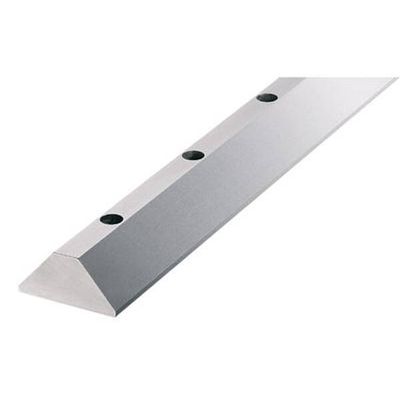

Linear guideways in any design, including special dimensions. For non-standard frictionless guideway dimensions, unlimited solutions are possible with the customer`s construction. Typically, the linear guideways are made of fully hardened tool steel. One-piece guideways up to 6000 mm (inductively hardened) or 3000 mm (fully hardened) can be produced. SCHNEEBERGER expertise ensures the optimal solution. To provide a meaningful offer, the requirements related to surface quality, grinding patterns, running surfaces, accuracy and use must be described in full detail.
