Scrappers Recycling Technology products

Recycling Line

TORNADO and GOLD RIVER series - Mini Recycling Line 50kg/h for Scrap Recycling

The Mini Recycling Line, with a performance capacity of 50kg/h, is a sophisticated set of machinery tailored for the scrap recycling process. Integrating shredding and separation techniques, it features the TORNADO series mills, engineered for rapid processing of feed materials with optimized chamber time and sieve placement. This ensures a consistent material fraction through balanced rotor RPM. Additionally, the GOLD RIVER series introduces advanced water systems with adjustable pressure in wet separators, facilitating precise separation of challenging materials. The system's design incorporates a separation mat on a vibration table, allowing for the meticulous separation of copper veins as thin as 15 microns. The setup prioritizes the purity and clarity of plastic waste while ensuring durability through robust Polish manufacturing standards. These components adhere to rigorous durability requirements, reinforcing long-term operational integrity. The line is crafted from carefully selected materials that guarantee longevity and reliability in recycling operations.

Scrappers - Medium Recycling Line 100KG/H

The Medium Recycling Line, with a performance capability of 100 kg/h, is designed for efficient shredding and separation tasks essential in scrap recycling. It features the TORNADO series mills, engineered for quick processing of feed materials through optimal chamber time, sieve placement, and rotor RPM for consistent material fractions. The GOLD RIVER series Wet Separators introduce an innovative water system with adjustable pressure aimed at high-precision material separation, capable of isolating copper veins as thin as 15 microns. The inclusion of a separation mat on a vibration table enhances single-material separation efficiency. Manufactured with durable materials, the line stands for solid Polish craftsmanship, ensuring long-lasting operational life while maintaining high purity and clarity of recycled plastic waste.

Magnetic Separators

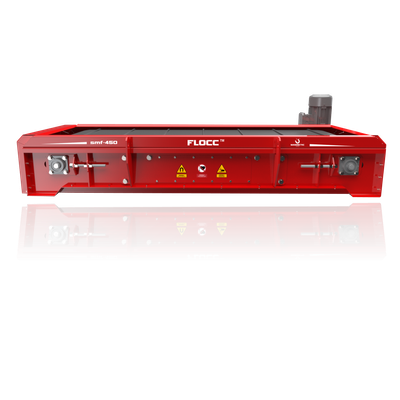

Scrappers - Magnetic Separators for Waste Recycling

FLOCC™ Magnetic Separators offer precision in separating ferrous materials during waste recycling, distinct from conventional belt magnetic separators. These high-accuracy separators feature a specialized FLOCC™ magnetic block that creates a robust, variable magnetic field to effectively remove unwanted non-ferrous elements mixed with iron fractions. Designed to handle larger ferrous particles, these separators can be positioned above conveyor belts or vibratory feeders. Constructed from non-magnetic steel, the separator includes a sealed magnetic block based on permanent magnets and a cleated belt that is both cut-resistant and highly magnetically permeable. Elliptical drive and return drums optimize belt tracking, while motoreducers provide drive. With features like an ON/OFF switch and safety mechanisms, these separators are engineered for demanding environments, ensuring safe operation. For optimal performance, non-magnetic materials are recommended for feeder components within the magnetic field range.

Scrappers - Non-Ferrous Metal Separators - Edge Current

Eddy current separators from ZŁOMIARZE are pivotal in the waste recycling industry for the extraction of non-ferrous, non-magnetic metals such as aluminum, copper, and brass from mixed materials. These separators utilize high-speed magnetic rotors to generate fluctuating magnetic fields, inducing eddy currents in metal components that oppose the external field, effectively ejecting these metals from waste streams. Essential components include a vibratory feeder for consistent material distribution, a magnetic rotor with neodymium magnets for precision, and a dual-sealing belt system for durability in harsh conditions. Additionally, separators are equipped with position-control systems, central cooling for rotor bearings, and two-way distributor controls to enhance operational efficiency. Designed to recover materials as small as 1 mm, these separators are engineered to maximize recycling profitability and efficiency.

Wet Separators

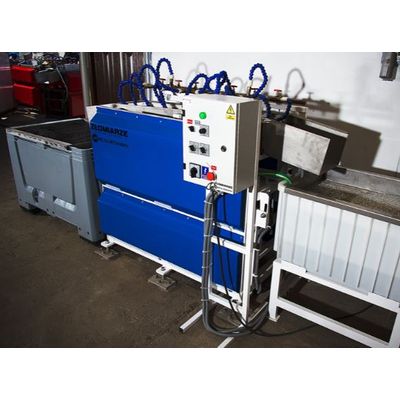

Scrappers - Wet Separator Gold River 300/1250

The Wet Separator Gold River 300/1250 is a state-of-the-art recycling machine designed for the efficient recovery of raw materials such as plastics and metals. It features a sophisticated water system constructed from copper, consisting of three sections and six nozzles with flexible hoses. This setup is integrated with an advanced separation mat to ensure high purity levels of the recovered materials. The machine's drive and construction are engineered to withstand vibration loads, ensuring long-lasting durability. It boasts a robust supporting frame, assuring reliable operation without additional support for water supply, thanks to its closed water circuit system utilizing integrated tanks. All machines come with comprehensive instruction manuals, conformity declarations, CE-marking, and available spare parts. The company's products underscore reliability and efficiency, inviting potential users to test them at their headquarters.
