SeaMetrics, Inc. products

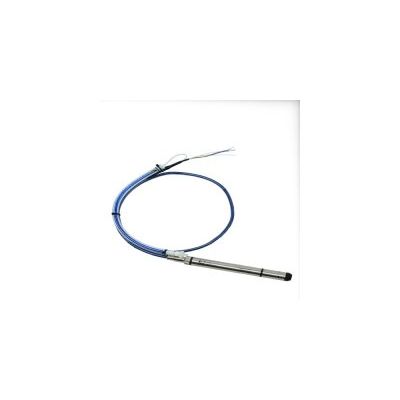

NW’s AquiStar^® PT2X is ideal for observing flow patterns, testing pumps, and monitoring groundwater, well, tank and tidal levels. A pressure and temperature sensor with integrated datalogging, this sensor is constructed with 316 stainless steel, fluoropolymer, PTFE—providing highly accurate readings in rugged and corrosive field conditions.

Designed to resist the elements, the PT12 delivers accurate pressure and temperature readings in rugged environments. This industry standard SDI-12 device is easy to interface with SDI-12 recorders and can be daisy-chained on one cable up to 200 feet, making it a preferred choice for many environmental professionals with existing SDI-12 systems.

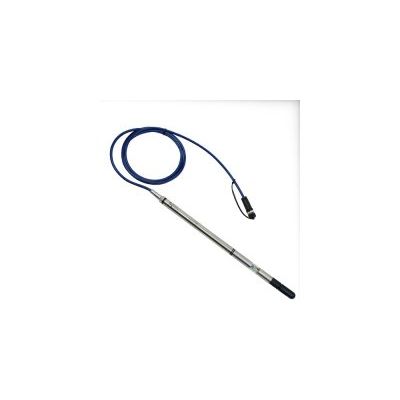

The TempHion™ is a submersible water quality sensor and datalogger that comes with powerful, easy-to-use Aqua4Plus software. Each unit includes a ph/ORP element as well as one thermistor-based temperature element.With a patented reference electrode, the TempHion  provides long-term stability for continuous or intermittent monitoring—making unattended in-situ pH testing possible without frequent calibrations or service.

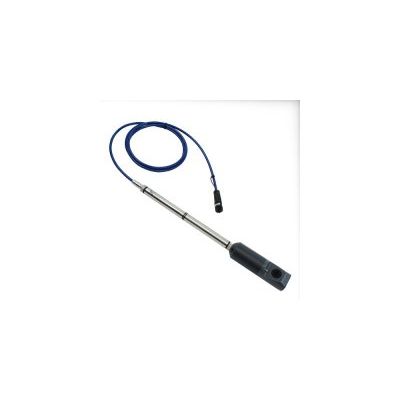

INW’s Dissolved Oxygen (DO) sensor is the next generation in trouble-free oxygen sensing design. Utilizing fluorescence of a stable, immobilized ruthenium-based film matrix, the sensor provides precision optical transmission and detection to measure oxygen concentration in the fluid outside of the sensor. Equipped with a built-in GDL Datalogger and Aqua4Plus software, this sensor provides convenient, high-quality data to the user.

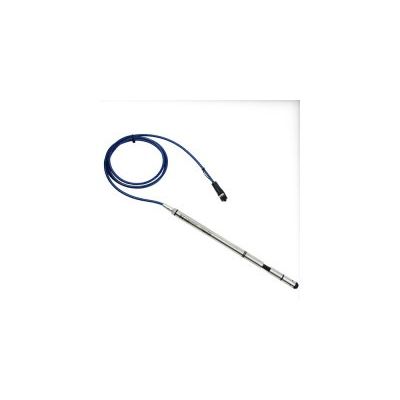

The CT2X is a conductivity and temperature sensor with built-in datalogging. Incorporating a 4-pole epoxy and graphite electrode cell, it is extremely durable and resistant to data interferences—making it excellent for use in rugged field conditions. The CT2X also comes with INW’s powerful, easy-to-use Aqua4Plus software, affording the user extensive control, including real-time monitoring, flexible programming, and versatile data display options.

Converts analog signals into digital signals 7 standard channels Integrated datalogger collects over 25,000 records Modbus and SDI-12 protocols The GDL is a plugin that can make many of your existing sensors into Smart Sensors.With a simple attachment, the GDL adds datalogging and powerful communication features to your equipment. Whether your devices are analog or digital, our GDL dataloggers turn your them into telemetry-enabled recording systems.

The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. It is used in 3` to 12` pipe in municipal or industrial water, waste or reclaimed water pump stations and packaged plant applications. The iMAG has no moving parts and electrodes are designed to discourage fouling. This magmeter requires no maintenance in applications where debris would impede mechanical meters. There are no parts to wear out. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow. iMAG-Series meters are rated IP68 for applications where the meter may be under water up to a depth of 10 feet (3 meters) for prolonged periods of time.

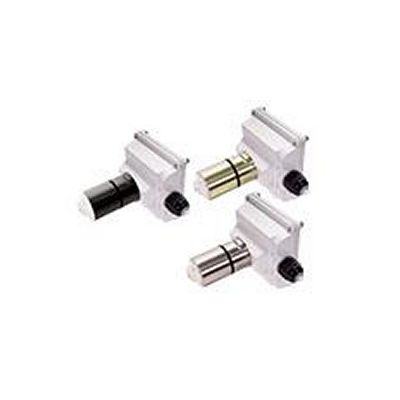

The EX100/200-Series  are adjustable depth insertion magmeters that fit 3” to 48” pipe (up to 72” optional). The complete lack of moving parts of the EX100/200-Series is the source of its reliability. Brass and stainless steel models withstand a variety of temperature, pressure, and chemical conditions. The EX-Series has no rotor to stop turning in dirty water and there are no bearings to wear out.  Like all magmeters, when used in chemical injection applications, these meters should be installed upstream of the chemical line (or far enough downstream to allow complete mixing of fluids before the meter). Adapters mate with standard 1-1/2” (11x/21x) or 2” (15x/25x) FNPT threaded fittings such as saddles and weldolets which may be purchased either locally or from Seametrics.

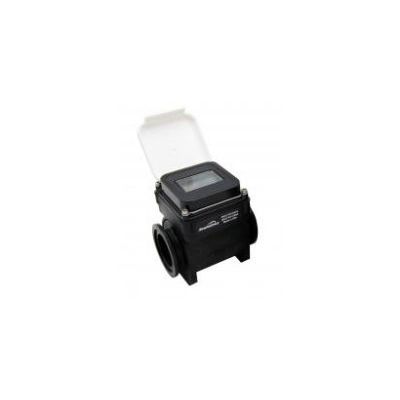

The WMP-Series is a full-bore, plastic-bodied electromagnetic flow meter designed for flow and usage monitoring applications in 1, 2 and 3 inch pipe. The polypropylene flow tube offers corrosion resistance to a wide range of chemicals and fertilizers. It is light weight and easy to install or remove from the pipe for inspection*. With no moving parts, the magmeter permits unobstructed flow. minimizing flow disturbances and straight pipe requirements. The WMP-Series can be used in piping configurations where there is little space between the meter and an elbow or valve. The WMP-Series is resistantto wearfrom sand and debrisfound in ground or surface water. Since there are no bearings or propeller to wear out. maintenance and repair costs are kept to a minimum and it tolerates high flows without damage.

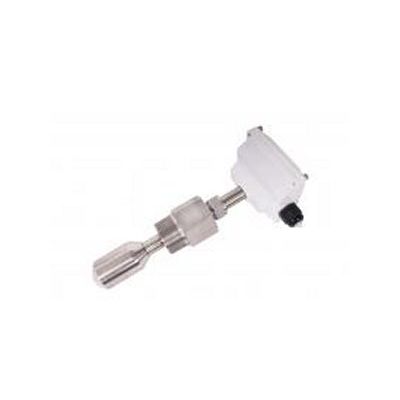

EXSOO-Series insertion electromagnetic flowmeters are designed for use with conductive liquids in 1 to 12` pipe. A choice of materials (stainless steel, brass, and PVC) allows the meter to adapt to a range of temperature, pressure, and corrosive environments. The EX800 is highly suitable for difficult applications with changing viscosities and pulsating flows, such as air-driven diaphragm pumps. With no moving parts, these meters can be used in `dirty` applications where debris would foul a mechanical meter. Like all magmeters. when used in chemical injection applications, these meters should be installed upstream of the chemical line (or far enough downstream to allow complete mixing of fluids before the meter).
