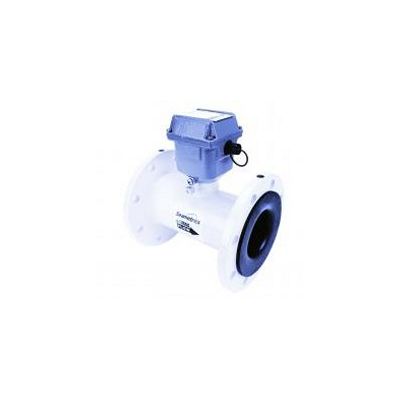

Model iMAG-Series - Flanged Magmete

From

0

The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. It is used in 3' to 12' pipe in municipal or industrial water, waste or reclaimed water pump stations and packaged plant applications. The iMAG has no moving parts and electrodes are designed to discourage fouling. This magmeter requires no maintenance in applications where debris would impede mechanical meters. There are no parts to wear out. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow. iMAG-Series meters are rated IP68 for applications where the meter may be under water up to a depth of 10 feet (3 meters) for prolonged periods of time.

Rate and total indication are standard. Rate and total units and pulse output are settable via the front panel touch key pad by the user. Bi-directional flow is standard. Forward, reverse and net flow can be read from the display. If forward and reverse flow data needs to be sent to another device. Modbus output is required. The iMAG can be externally powered with 9-36 Vdc at 30 mA average. The standard 20-foot (6 meter) cable also provides outputs for use with a variety of Sea metrics and other displays and controls for remote reading, data logging and telemetry applications. 4-20mA passive current loop and high frequency outputs are optional. The iMAG 3600 remote display meter can be supplied with an optional internal AC power supply.

  • Water & wastewater
  • Municipal
  • Treatment plants
  • Pump stations
  • Packaged plants
  • Filtration systems
  • Reclaimed Water

  • Easy setup
  • Minimal straight pipe
  • Mounted or remote rate and total
  • 4-20mA output available
  • NSF-61-G approved
  • IP68 rated
  • Use in water/wastewater, municipalities, treatment plants, pump stations, cooling towers, packaged plants, filtration systems
