Secutron products

Secutron`s MMX Series Network Fire Alarm Control Units offer modular components to meet a wide variety of applications. Designed for peer-to-peer network communications, the MMX Series allows for a maximum of 63 nodes, while providing reliability, flexibility and expandability. The MMX Series is a powerful system capabale of providing network control, multi-channel voice evacuation and two-way fire fighter communications over a single pair of wires or fiber-optic cable. Each base unit consists of one intelligent signaling line circuit (SLC) capable of supporting 99 analog sensors and 99 addressable modules.

Secutron’s MR-2200 Intelligent input fire alarm control panels provide flexible and cost effective operation to satisfy system requirements for both economy and capability.

Secutron’s MR-3500 Series systems are powerful intelligent fire / agent release control panels that are UL/ULC listed and FM Approved.

The MR-2312-LDR is equipped with twelve Class “B” (Style “B”) initiating circuits and four Class “B” (Style “Y”) indicating circuits rated @ 1.7 Amps maximum. (Total of 5 Amps). Two MR-2300-A Six Initiating Circuit Class “A” Converter Modules may be used for Class “A” (Style “D”) wiring of the initiating circuits. One MR-2300- NC4 Four Indicating Circuit Class “A” Converter Module may be used for Class “A” (Style “Z”) wiring of the indicating circuits. The MR-2312-LDR is configurable by the keypad (using the CFG-300 Configuration Tool) for onsite programming or by a PC for both onsite and remote programming. The MR-2312-LDR has a built-in UDACT/Digital Communicator and the cabinet will support up to 12 AH batteries. The panel can be semi-flush mounted with the optional MR-2312-FT trim ring.

The MR-2306-DDR is equipped with a built-in UDACT/Digital Communicator. One MR-2300-A Six Initiating Circuit Class “A” Converter Modules may be used for Class “A” (Style “D”) wiring of the initiating circuits. One MR-2300-NC2 Two Indicating Circuit Class “A” Converter Module may be used for Class “A” (Style “Z”) wiring of the indicating circuits. The cabinet will support up to 12 AH batteries. The panels can be semi-flush mounted with the optional MR-2300TRB trim ring.

Two MR-2300-A Six Initiating Circuit Class A Converter Module may be used for Class “A” (Style “D”) wiring of the initiating circuits. One MR-2300-NC4 Four Indicating Circuit Class “A” Converter Module may be used for Class “A” (Style “Z”) wiring of the Indicating circuits. The MR-2312-DDR has a built-in UDACT/Digital Communicator and the cabinet will support up to 12 AH batteries. The panel can be semi-flush mounted with the optional MR-2312-FT trim ring.

The MR-2200 models provide two SLCs for support of 198 devices on each allowing a total capacity of up to 396 addressable devices; up to 198 detectors and up to 198 control/monitor modules total.

The MR-2350 Series is ideal for small to medium commercial, institutional, and industrial occupancies. The enhanced MR-2350 Series Intelligent Fire Alarm Control Units offer the most advanced features and a modular design that support 60, 126 or 378 addressable points.

Secutronâs MR-2320 is a dual releasing control panel that is field configurable for use on Deluge Sprinkler Systems, Pre-action Sprinkler Systems and Agent Release Systems. The MR-2320 is equipped with six Class `B` (Style `B`) input circuits and four Class `B` (Style `Y`) output circuits rated @ 1.7 Amps maximum. (Total of 5 Amps) Optional Class A converter modules are available for both input and output circuits. In addition both internal and external relays are supported by the MR-2320. The relays can be configured for both single and dual hazard applications.

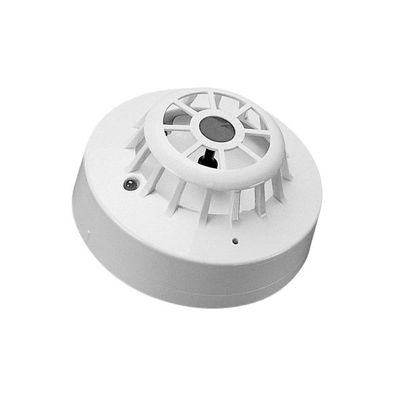

These 135 degree fixed and rate-of-rise heat detectors operate by using a matched pair of thermistors to sense heat.
