12 products found
Shanghai Chongyang Water Treatment Equipment Co.,ltd products
CHONGYANG - Model CY-RO - Water Treatment Equipment for pharma
Product Name :pharmaceutical RO system, Reverse Osmosis Plant The process of Water Treatment Equipment : The raw water tank----The raw water pump ---Activated Carbon Filter ----Quartz Sand Filter ---Softener (optional )---Scale inhibitor Dosing---The High Pressure Pump ----RO Membrane ---EDI ---Pure Water Tank --- transmission& circulation pipeline ----Disinfection System http://www.cy-waterequipment.com/Purified Water System for Pharma Industry
CHONGYANG - Model CY-PW - High Temperature Type Reverse Osmosis System +EDI
Product Name:Water Treatment Equipment /Reverse Osmosis Water Purification Plant RO Technology :Reverse Osmosis method for pure water production is a kind of new technology which is developed in 60S .Because its technological operation is simple ,very economical ,with great efficiency in desalination and pyrogen removal,United States Pharmacopoeia takes RO technology as one of legal injection water production methods from version 19. http://www.cy-waterequipment.com/
CHONGYANG - Model CY-RO - Boiler Feed Water Treatment System
Product Name: Water Treatment Equipment for Cooling water make-up water treatment . Product Profile:Boiler water treatment may adopt the desalination process of ultrafiltration of traditional filtration equipment +reverse osmosis treatment+ion-exchange or EDI system.When used as the pretreatment system ,reverse osmosis can remove ions in more than 98%.Depending on the quality of raw water and various requirement of the boiler ,as a powerful desalination system,the ion-exchange system adopts combination of cation bed ,ion bed and mixed bed or single pass mixed bed or double pass mixed bed to meet the boiler feed water requirement.Compared with traditional ion-exchange method ,the reverse osmosis system removes the salt completely ,so it can prolong the regeneration period enormously This technology boasts steady working,ease of operation ,high-level automation ,low running cost and less environmental influences. http://www.cy-waterequipment.com/

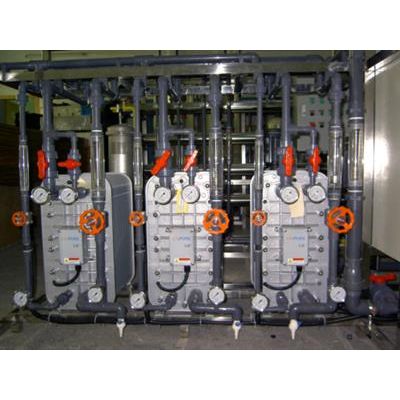

CHONGYANG - Model EDI - Purified Water EDI System
http://www.cy-waterequipment.com/ Product Name : EDI Equipment Product Profile: EDI(Electrodeionization)is a revolutionary water treatment technology ,tiis a membrane filtration and desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech ,green and eco-friendly technology. EDI equipment uses the RO outlet water as feed water .The resistivity of RO outlet water is normally 40-2us/cm(25°C),and the resistivity of EDI outlet water can normally reach 18MΩ.cm(25°C).According to the application of deionization water and the setup of the system ,EDI outlet water can meet the requirements for resistivity of 1-18MΩ.cm(25°C).

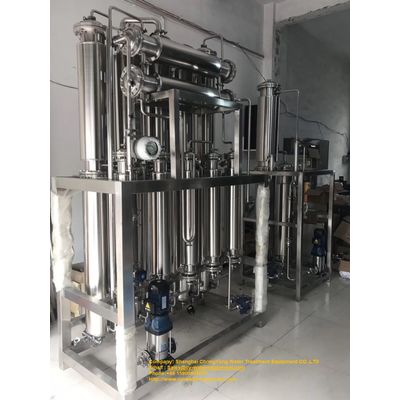

CHONGYANG - Model CY-RO - Multi Effect Distillation/Pharmaceutical Water System
http://www.cy-waterequipment.com/ Product Name:Multi Effect Distillation/Pharmaceutical Water System . Product Features: 3 Step separation,external helical structure,falling film flash separation ,180°turn-back gravity separation,external screw centrifugal separation. Double tube sheet design,prevent cross contamination, expanded connection for both outside and inside tube sheet . Equipped with buffer tank and collection tank. The part which is contact with feed water ,cooling water ,pure steam ,distilled water is SS 316L,seal is made of PTFE. Gravity separation with mesh demister assemble is separated . Uncondensable air exhaust . The first evaporator can produce pure steam (Option) Validation documents :(DQ,IQ,OQ,PQ)

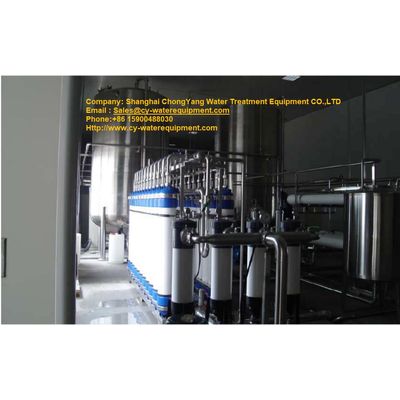

CHONGYANG - Model CY-RO - Nanofiltration System
Product Name:Ultra Filtration System Product Profile:Brief Introduction : The early Nanofiltration Membrane is Called Loose RO Membrane,which was developed after typical RO composite membrane in the early 80S. The early Nanofiltration Membrane was called Loose RO Membrane ,which was developed after typical RO composite membrane in the early 80S. E: ccdup_wy at 126 point com

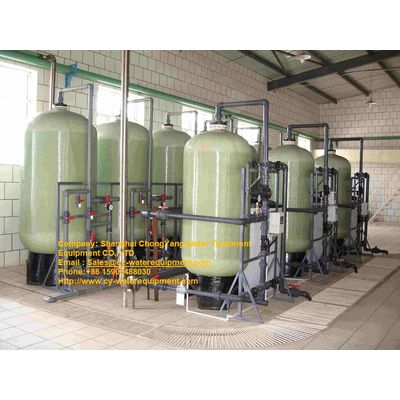

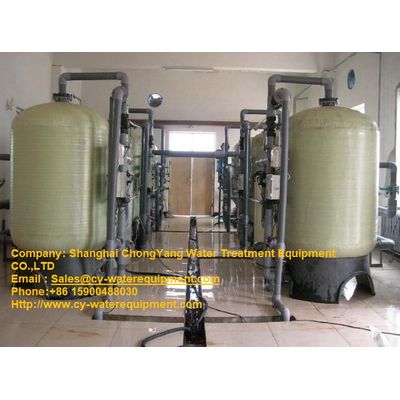

CHONGYANG - Model CY-RO - Industrial Water Softener
Product Name:Water Softener System Product Profile:We offer a complete line of custom-built water softeners and polishers .From small commerical units to large industrial configurations ,we always have a water softening system to match any need .From a single unit to several alternating or progressive trains ,we have manufactured industrial water softeners ranging from as little as a few gallons per minute to in excess of 8 MGD.As with nearly all of our water treatment equipment ,we offer an optional skid-mounting package (pre -piped ,pre-wired and factory tested),which makes installation quick and easy. For heavy users of salt ,we also offer turn-key bulk salt storage and brine recovery systems which eliminate the need for handling wile significantly reducing salt costs . E: ccdup_wy at 126 point com
CHONGYANG - Model WFI - Multi Column Distillation Plants
5&6 Step separation,external helical structure,falling film flash separation ,180°turn-back gravity separation,external screw centrifugal separation. Double tube sheet design,prevent cross contamination, expanded connection for both outside and inside tube sheet . Equipped with buffer tank and collection tank. The part which is contact with feed water ,cooling water ,pure steam ,distilled water is SS 316L,seal is made of PTFE. Gravity separation with mesh demister assemble is separated . Uncondensable air exhaust . The first evaporator can produce pure steam (Option) Validation documents :(DQ,IQ,OQ,PQ) http://www.cy-waterequipment.com/

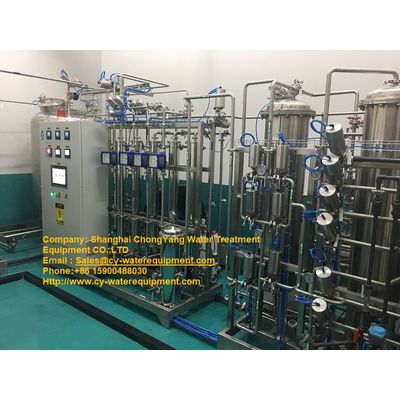

CHONGYANG - Model PW - purified water generation system
Product Name :3000 Liter-H Double Reverse Osmosis System The demand of Water quality of Pharmaceutical & Biological Industry: The Purified Water of Pharmaceutical industry is used for preparation ,dispensing ,washing.In addition to it can remove salt,iron ,manganese,especially for the removal of bacteria and pyrogen is high.It is necessary to remove the bacteria and pyrogen by membrane or multi-effect distillation to meet the requirements of the Pharmacopoeia except for the removal of impurities and ions in water . http://www.cy-waterequipment.com/
