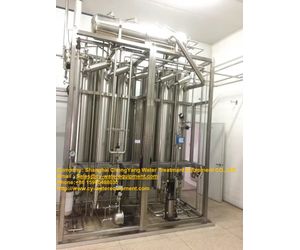

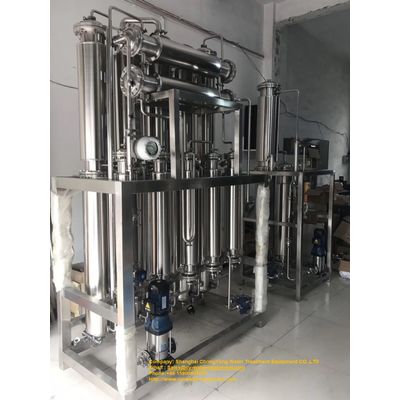

CHONGYANG - Model CY-RO -Multi Effect Distillation/Pharmaceutical Water System
http://www.cy-waterequipment.com/ Product Name:Multi Effect Distillation/Pharmaceutical Water System . Product Features: 3 Step separation,external helical structure,falling film flash separation ,180°turn-back gravity separation,external screw centrifugal separation. Double tube sheet design,prevent cross contamination, expanded connection for both outside and inside tube sheet . Equipped with buffer tank and collection tank. The part which is contact with feed water ,cooling water ,pure steam ,distilled water is SS 316L,seal is made of PTFE. Gravity separation with mesh demister assemble is separated . Uncondensable air exhaust . The first evaporator can produce pure steam (Option) Validation documents :(DQ,IQ,OQ,PQ)
http://www.cy-waterequipment.com
Product Name:5 effects distiller water for injection water machinery for bulk drug ,finished drug product
Some of bulk drug industry need high requirement for water quality , they must adopt water for injection for their products .
Internal circulation system control growth of microorgansim .
There are the detailed stipulation in GMP Standard for preparation of water ,storage ,distribution . They should be no growth of microorganism and contamination .The material of storage and conveying pipeline should be non-toxic ,anti-corrosion , the design of pipeline and installation should be no dead leg , blind tube .The storage and pipeline should been cleaned ,sterilized regularly . Air vent should been equipped with hydrophobic sterilizing filter .
