Shanghai JianQi Technology Co., Ltd. products

VMB/P, the gas distribution valve box/plate, is suitable for the distribution and pressure adjustment of the process gas.

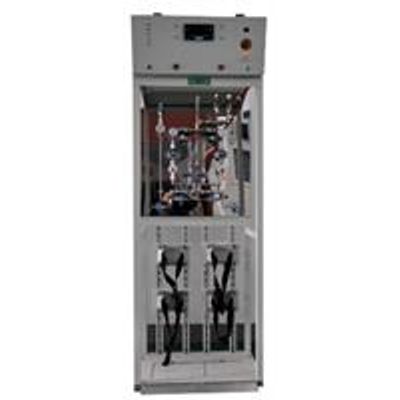

BSGS is developed on the basis of GC/R design of large flow rate, gas supply system, with the OMRON PLC as the main body, PROFACE touch screen for operating interface, in view of the different nature of the gas with different disk design, the large flow of dangerous gases can be uninterrupted supply. All products have passed the SEMI-S2 safety certification and CE certification of electronic products.

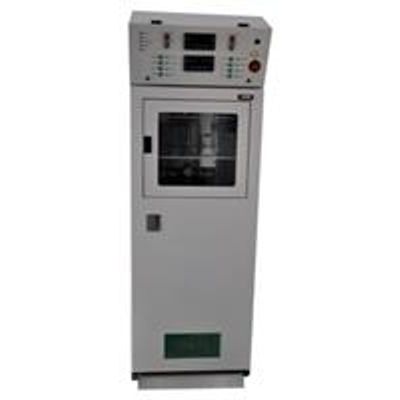

Automatic switching of GC/R is a simple gas cylinder cabinet/frame, with OMRON PLC as the control subject, with the corresponding operation button and digital display instrument, which can be manually pursed and automatically switched. It is mainly applicable to some inert gases or low dangerous gases. All products have passed the SEMI-S2 safety certification and CE certification of electronic products.

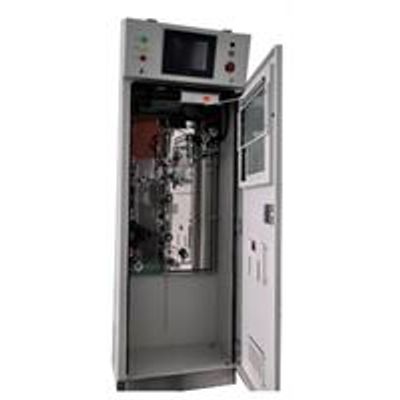

Push button automatic GC/R for this company in the near future the latest research and development of the economical gas cabinets/frame, with mitsubishi PLC for the control of the main body, with the corresponding action buttons and digital display instrument, according to different properties of gas with different disk design, on the basis of retain the function of type A most greatly reduces the cost, save the customer`s budget, in order to meet the SEMI, leds, TFT, SUN SOLAR, such as the different needs of each industry. The button automatic GC/R full range of products has passed the SEMI-S2 safety certification and CE certification of electronic products in the semiconductor industry.

Equipment name: Heater. Type 2: B403S. power source: 220VAC 20A (single point). Main functions: used for heating the disk and pipeline of low pressure gas, and stabilizing the outlet pressure. Single or multichannel control, temperature alarm and signal output.

Equipment name: Chiller. Type 2: B406S. Source: 220VAC 8A. Main functions: used for heating and cooling of low volatile gas cylinders and stabilizing outlet pressure.

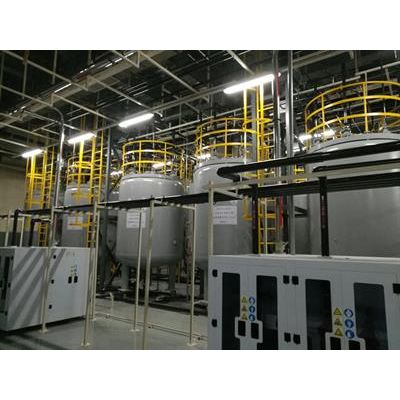

Suitable for the distribution and adjustment of liquid in SMIC/LCD production process.

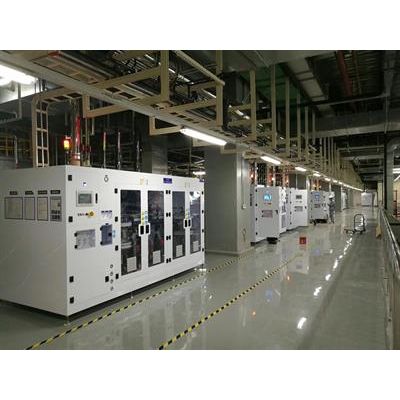

The CDS is a CHEMICAL DISTRIBUTION SYSTEM or to OMRON PLC to control the main body, PROFACE touch screen for operating interface, according to different properties of CHEMICAL liquid with a variety of disk design, the large flow of dangerous liquid can be uninterrupted supply. All products have passed the SEMI-S2 safety certification and CE certification of electronic products.
