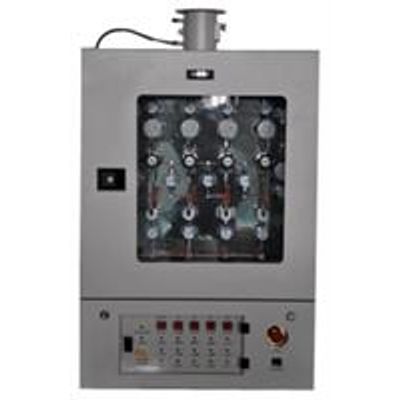

MST - Model GAS-VMB -Gas Supply System
VMB/P, the gas distribution valve box/plate, is suitable for the distribution and pressure adjustment of the process gas.
Most popular related searches
gas distribution valve
isolation valve
pneumatic valve
high-pressure valve
nitrogen purging
drain lining
valve box
drain line
process gas
gas valve
- Import and export pressure display.
- Pressure adjustment of each branch.
- Channel expansion valve.
- High pressure isolation valves for each branch.
- Low pressure isolation valve for each branch.
- Test port
- Nitrogen purging
- Import and export PT display.
- Each branch filter.
- Each branch backstop valve.
- Main road pneumatic valve (only VMB)
- Pneumatic valve of each branch (only VMB)
- Exaust Alarm (only VMB)
- Vacuum discharge of each branch.
- RS485 remote communication (only VMB)
- Power supply 220VAC 2A.
- Gas supply pipeline 316L EP 1/4 VCR.
- Purge line 316L EP 1/4 VCR 100PSI PN2(999.99%)
- Vacuum tube road 316 EP 1/4 VCR 100PSI 50SLPM GN2.
- Drain line 316 BA 1/2 VCR.
- Pneumatic gas source 316 BA 1/4 LOK 60-90 psi GN2&CDA (only VMB)
- Exhaust 4` wind pressure 50Pa.
