Shanghai MegaVision Membrane Engineering & Technology Co., Ltd. products

Economical (12mm) PVC support plate. Suitable for small to medium-sized wastewater treatment projects. Membrane area: 1.0m². Flux (LPD): 400~600.

Ultra-thin (7mm) ABS support plate, high packing density. Suitable for small and large wastewater treatment projects. Membrane area: 0.8m². Flux (LPD): 320~480.

Ultra-thin (7mm) ABS support plate, high packing density. Suitable for large-scale or space-constrained wastewater treatment projects. Membrane area: 1.5m². Flux (LPD): 600~800.

Quick and easy to install, suitable for small to medium-sized wastewater treatment projects. Membrane area: 10 m². Flux (LPD): 2,000~5,000.

Large-scale wastewater treatment project with large membrane sheets and SS304 support frame Membrane area: 25 m². Flux (LPD): 5,000~12,500.

Especially suitable for the purification and filtration clarification of relatively low turbidity liquids. Superhydrophilic Hyper™ PS (polysulfone) provides high strength and molecular weight cutoff precision (5K~300K Daltons).

Internal pressure ultrafiltration membranes are particularly suitable for solid-liquid separation or concentration purification of liquids. Membrane area: 4 m². Design flux (LPH): 240~480.

Large-capacity internal pressure ultrafiltration membranes are particularly suitable for solid-liquid separation or concentration purification of liquids. Membrane area: 45 m². Design flux (LPH): 2700~5400.

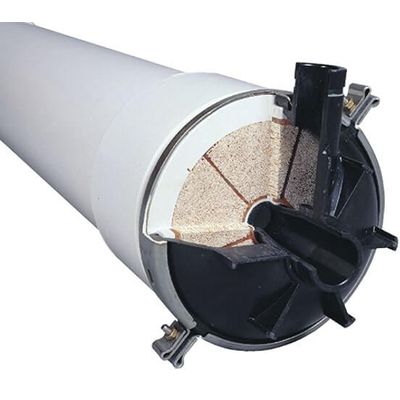

External pressure ultrafiltration membranes are suitable for processes with a flow rate greater than 50 m³ ^/ hr and relatively high turbidity. They utilize HYPER™ polyvinylidene fluoride (PVDF) hollow fiber ultrafiltration membranes, which offer high mechanical strength, uniform pore size, and a nominal pore size of 0.03 μm.

With a relatively short overall length, it is widely used in the treatment of surface water, groundwater, seawater, and wastewater, as primary treatment or pretreatment for reverse osmosis (RO) and nanofiltration (NF). Membrane area: 51 m². Design flux (LPH): 1500~6100.
