Shortridge Instruments, Inc. products

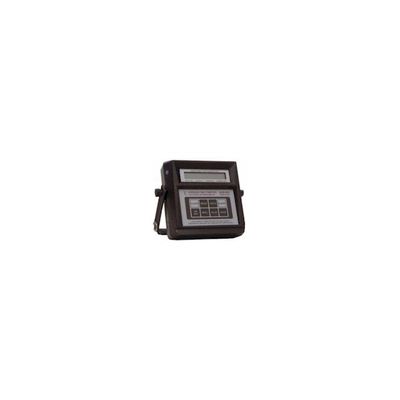

The ADM-880C AirData Multimeter stores 2000 readings, along with the time and date, in up to 25 memory groups. Each reading may be recalled - along with the average, sum, minimum, maximum, and standard deviations of the readings for each mode within each group.

The ADM-870C AirData Multimeter is designed specifically for applications with very demanding air distribution requirements. The ADM-870C features an RS232 Communications Port, which allows the user to download readings to a printer or computer.

The ADM-860C AirData Multimeters include an RS232 communication port, which allows serial output to a printer or computer.

The ADM-850L Multimeter offers the unequaled accuracy and flexibility of the Shortridge Instruments AirData Multimeters, in a simplified model, and at a reduced cost. This meter may be ordered as part of the ADM-850L Multimeter Kit, complete with accessories for measuring air velocity, pressure, and temperature, or as part of the CFM-850L FlowHood kit.

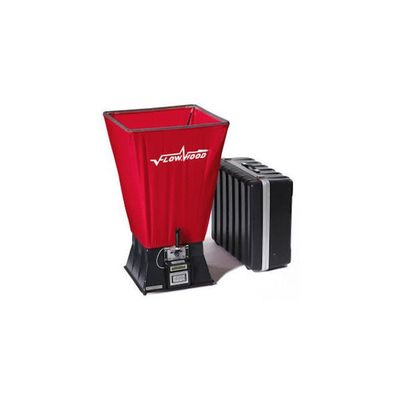

The FlowHood is a much more convenient alternative to time-consuming multiple velocity readings across air diffusers, as this instrument eliminates the need for the calculations necessary to convert the average velocity into air flow. CFM-850L - This model includes the meter, the base metering section, various top sizes and carrying case. It measures pitot tube velocity, static pressure and temperature, in addition to airflow.

The FlowHood CFM-88L uses the electronic, digital AirData Flowmeter for direct readout at supply, return, or exhaust outlets, in cfm or liters/sec. This rugged, shock resistant meter automatically selects the proper range and corrects for local barometric pressure and temperature. These features eliminate several error factors and the calculations necessary to convert airflow readings to local density results. Internal calibration and zeroing are fully automatic. No adjustments are ever needed.

Flow measuring base with sensing manifold. Two position flaps and control, push button handle, and carrying case.

The HydroData Multimeter is accurate across an extremely broad range of fluid gage pressures and differential pressures. The high pressures existing at pumps, chillers, cooling towers, and high rise building conditions can be measured up to 250psi.

Serial Output to Printer and Computer Spreadsheet Compatible. Eight Position Switch Box. Two Surface Probes. Six Insertion Probes. 12 foot Lead. Padded Carrying Case.
