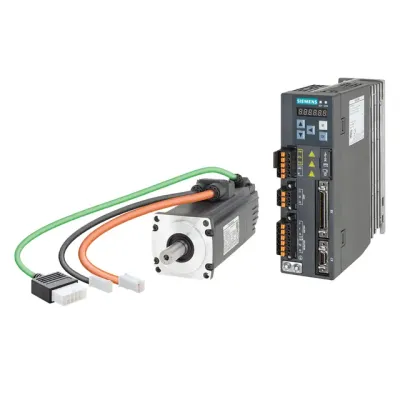

The performance-optimized and easy-to-operate servo drive system. The system comprises the SINAMICS V90 servo drive and the SIMOTICS S-1FL6 servo motor covering a power range of 0.05 to 7.0 kW for operation in single and three-phase networks. It can be integrated easily via PTI, PROFINET, USS or Modbus RTU. The SINAMICS V90 system enables simple motion control tasks to be implemented cost-efficiently with the focus being on dynamic motion and processing.

Our SIMOTICS main motors are tailored to the increasing demands of modern plant and mechanical engineering. Available in robust asynchronous or synchronous designs, they are characterized by short rise times and tackle even the most extreme load cycles with a high accuracy in speed, torque and positioning.

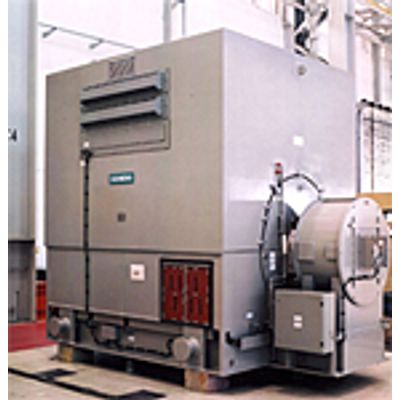

Our SGen-100A-2P series features two-pole generators specifically customized to meet industrial requirements. Thanks to their modular design, they can easily be tailored to individual customer requirements. They are available with different types of cooling systems: TEWAC (totally enclosed water-to-air cooling), CACA (closed air-to-air cooling), and DAC (direct air cooling, cooling air intake via filter). More than 1900 air-cooled generators are already in use worldwide. They feature a high efficiency level, low noise emissions as well as easy installation and start-up.

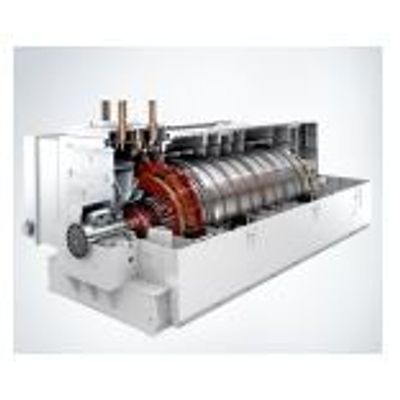

Thanks to their compact design, the four-pole, three-phase synchronous generators from the SGen-100A-4P series are particularly well suited for use in industrial applications. With very high cogeneration efficiency levels of up to 98.7 percent, they keep process costs down. In addition, they provide power generation solutions that are independent from the public power supply. More than 300 SGen-100A-4P series generators are already in use worldwide. The SGen-100A-4P series generators feature a very low overall weight, minimized generator length and the ability to adapt to the requirements of different branches of industry.

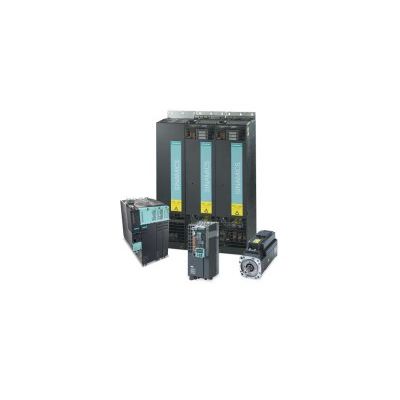

SINAMICS S120 modular motion control drives are designed for high performance drive applications in mechanical and systems engineering. With Siemens high performance drive capabilities, you get a range of coordinated components and functions as a complete motion control drives package. Our motion control drives include high-performance single drives and coordinated drives (multiple-axis applications) with vector or servo functionalities hat allow implementation of customized high performance drive solutions.With SINAMICS S120 motion control drives, you get a high performance drive that is flexible and increases productivity.

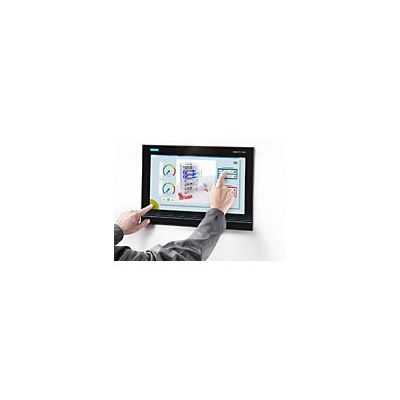

Industrial Flat Panel monitors were extended for multi-touch versions with projected capacitive touch technology (PCT) for gesture and multi-touch operations. The PCT technology enables efficient and fast operation, even when wearing thin protective gloves. The devices responds to gestures and operator actions with up to five fingers simultaneously. For example, image contents can be panned, zoomed, or hidden components shown both intuitively and quickly.

Small. Powerful. Wireless. And designed for volume deployments. The RUGGEDCOM RX1400 is a compact multiprotocol intelligent node which combines Ethernet switching, routing, and firewall functionality with various wide area connectivity options. The innovative design of the cellular router brings LTE and fiber optic WAN options into the harshest of environments. Whether you’re looking to connect multiple distribution substations and expand power networks or stream videos for intelligent transportation systems and rail, 4G connections make it easier than ever to connect to a wide area network with high wireless bandwidth. The MIMO LTE port on the RUGGEDCOM RX1400 helps ensure maximum performance. Dual SIM slots provide high availability, allowing selection of the best performing network and making single service provider issues a thing of the past. Simultaneous use of fiber and cellular connections improves link resiliency and service continuity.

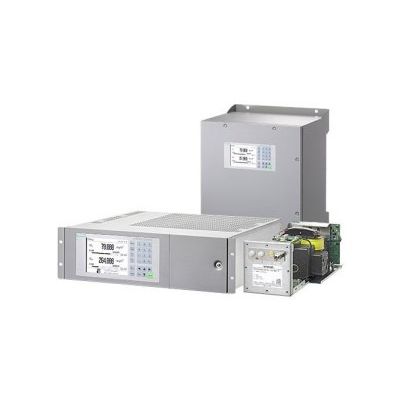

The SIPROCESS GA700 OXYMAT 7 measures oxygen using the paramagnetic alternating pressure method and is suitable for demanding applications where high requirements are made on reliability and measuring quality. Special materials in the gas path allow it to be used even for measuring corrosive gas mixtures. The detector unit has no contact with the sample gas and thus allows it to be used in tough conditions while ensuring a long service life.

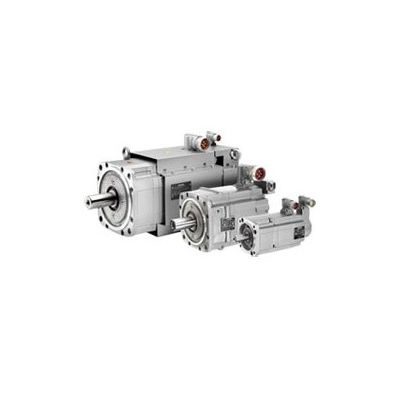

With highest accuracy in travel between points, 1FT7 servomotors satisfy the highest demands with respect to dynamics, speed setting range, as well as field weakening, true running, and positional accuracy. Equipped with the latest vibration-insulated encoder technology, these servomotors allow field replacements without rotor and encoder alignment, and are optimized for use in fully digital drive and control systems. 1FT7 servomotors are available in IP ratings 64 to 67 with a very high overload capability (up to 4 times rated torque) and rotatable connectors.

Here you will find the following drive systems and drive components for a very wide range of applications. The variable-speed drives from Siemens Drive Technologies are available in a variety of versions which cover all the requirements of modern industrial applications. The range extends from low-cost versatile converters for small performance capacities through reliable large drives in the megawatt range up to highly dynamic drives for machine tools and production machines. Low-voltage and servo motors for the entire mechanical engineering and plant construction industry - the solution for the future: maintenance-free, dynamic and powerful.
