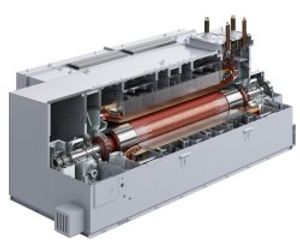

Siemens - Model SGen-100A-2P Series -Electrical Generators
Our SGen-100A-2P series features two-pole generators specifically customized to meet industrial requirements. Thanks to their modular design, they can easily be tailored to individual customer requirements. They are available with different types of cooling systems: TEWAC (totally enclosed water-to-air cooling), CACA (closed air-to-air cooling), and DAC (direct air cooling, cooling air intake via filter). More than 1900 air-cooled generators are already in use worldwide. They feature a high efficiency level, low noise emissions as well as easy installation and start-up.
- Air-cooled stator and rotor winding
- Different types of cooling available – TEWAC (Totally Enclosed Water-to-Air Cooling), OAC (Open Air Cooling, cooling air intake via filter), CACA (Closed Air-to-Air Cooling)

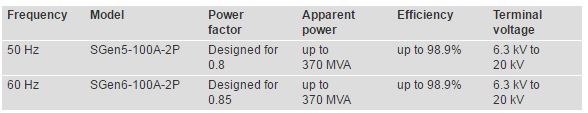

- Ratings up to 370 MVA
- Design suitable for 50 Hz and 60 Hz
- High efficiency up to 98.9 percent
- Modular design - easy to adapt to customer requirements
- Vacuum pressure impregnated stator cores and windings (GVPI)
- Base frame machine with mounted pedestal bearings
- Stator welded to the base frame
- Brushless or static excitation
- Easy to adapt to the requirements for the oil and gas industry
- Capable for synchronous condenser applications
Siemens has the resources to help optimize the technical parameters of your machine. Please contact a local Siemens representative to learn how these features can be customized for you.
