Sigicom AB products

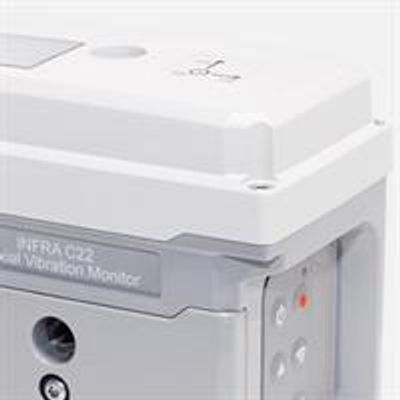

INFRA C22  is a wireless triaxial vibration monitor, a wireless triaxial geophone and data logger built into the same compact unit. The vibration monitor has a built-in 4G modem with GPS position and time synchronization. The INFRA C22 is Sigicom’s latest innovation. It is built on a brand-new hardware platform utilizing the latest technologies, such as modular communication. This will give you unparalleled reliability as well as being future proof.

INFRA C20 is a wireless vertical vibration monitor, wireless geophone and data logger built into the same compact unit. The vibration monitor has built-in 4G modem with GPS position and time synchronization. The INFRA C20 is Sigicom’s latest innovation. It is built on a brand-new hardware platform utilizing the latest technologies, such as modular communication. This will give you unparalleled reliability as well as being future proof. It works with INFRA Net (our web application) in the same way as the other INFRA sensors and data loggers.

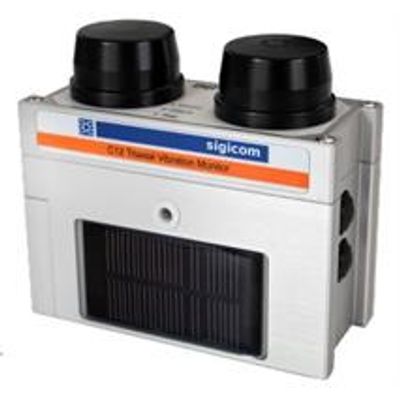

INFRA C12 is a wireless triaxial vibration monitor, wireless geophone and data logger built into the same compact unit. The vibration monitor has GSM/GPRS-communication. All filtering, signal processing and detection are done digitally. Before the recording is started you only select the wanted standard that is presented in the Remote part of INFRA Net. The INFRA C12 works with INFRA Net the same way as the other INFRA sensors and data loggers.

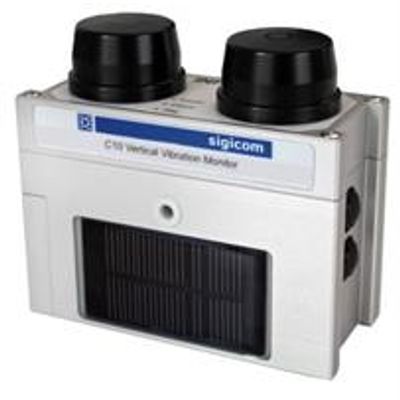

INFRA C10 – a small wireless vertical vibration monitor, geophone and data logger built into the same compact unit, with GSM/GPRS-communication. All filtering and signal processing is done digitally and before the measurement is started you chose the measurement standard that you want to measure according to in the remote part of INFRA Net (web application). The INFRA C10 works with INFRA Net (web application) the same way as the other INFRA sensors and data loggers. INFRA C10 acts as a combined data logger and sensor in the INFRA-system when it comes to remote changes, reporting, etc.

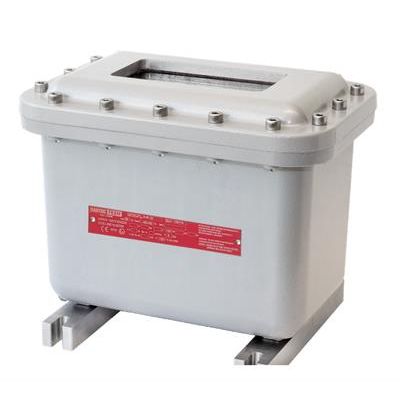

INFRA Master is a complete battery operated data logger with a built-in GSM/GPRS modem and built-in GSM antenna. The logger has two outgoing connections for the INFRA bus cable and  A series of available sensors can be connected to a single INFRA Master. There is also a connection for an external GSM antenna. The front panel consists of four buttons (easy operation) and a LCD screen with 4 lines, each can display up to 20 characters. INFRA Master is either operated with an internal lead-acid battery or connected to mains. The data is stored on the exchangeable CompactFlash card. The INFRA Master contains no measurement electronics and needs no calibration.
