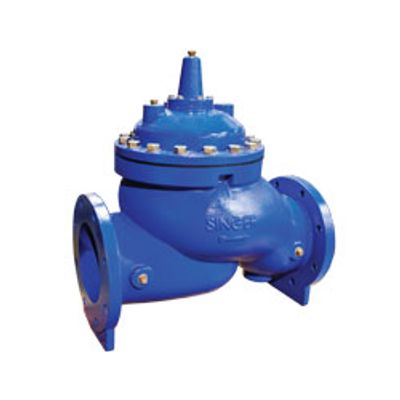

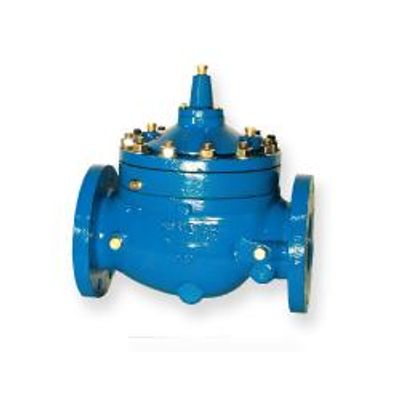

The 106-PG series control valve is designed to suit a large variety of applications such as pressure, flow or level control. This hydraulically operated valve introduces or releases water from the control chamber above the diaphragm to effectively maintain accurate water control. Refer to Main Valve Options and Pilots & Accessories to customize the valve to suit specific applications.

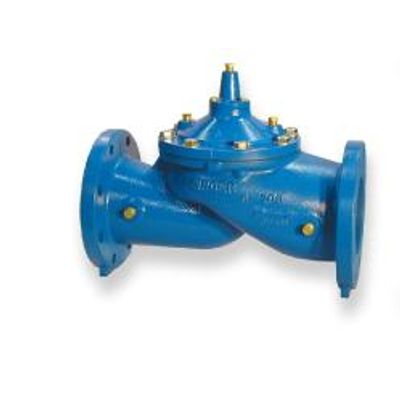

The 206-PG series control valve is the preferred choice for pressure reducing valves, flow control valves, relief valves and applications with lower to medium flows. This hydraulically operated valve introduces or releases water from the control chamber above the diaphragm to effectively maintain water control. Further adapt the valve to provide control for a wide range of functions with Singer Valve’s pilot and accessories options. Customize for functions like controlling pressure, flow or level or virtually limitless combinations to suit specific applications.

The 106-PT and 106-PTC series control valves are hydraulically operated by introducing or releasing water from the control chambers. PT and PTC valves have two operating chambers that are divided from each other by the diaphragm, and are separated from the flowing media by an adaptor plate.

The 206-PT and 206-PTC series control valves are hydraulically operated by introducing or releasing water from the control chambers. PT and PTC valves have two operating chambers which are divided from each other by the diaphragm, and are separated from the flowing media by an adaptor plate.

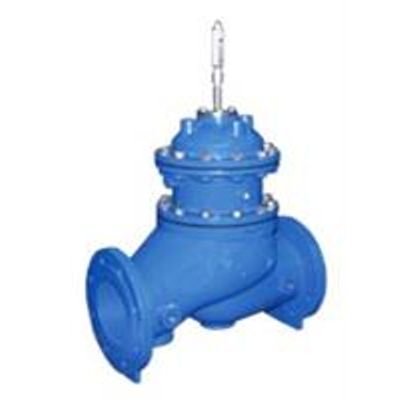

The 106-PGM and S106-PGM series control valves are designed for particularly sensitive applications or situations where valves are difficult to access and maintain. The PGM series control valves provide integral back-up control and the ability to signal should the desired function move off limits. It can also provide an independent and very positive override.

The 206-PGM and S206-PGM control valves are designed for particularly sensitive applications or situations where valves are difficult to access and maintain. The PGM series control valves provide integral back-up control and the ability to signal should the desired function move off limits. It can also provide an independent and very positive override.

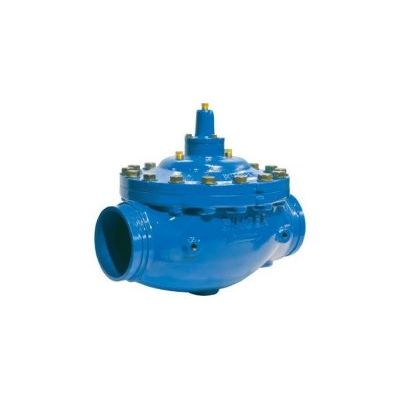

For use with grooved Iron Pipe Size (IPS) Pipe Coupling Products, grooved ends allows you to benefit from the simplicity and convenience of grooved end piping and fittings in an automatic control valve. There are a wide range of applications where grooved ends are relevant, but typical applications include municipal water, waste water, fire protection and plumbing.

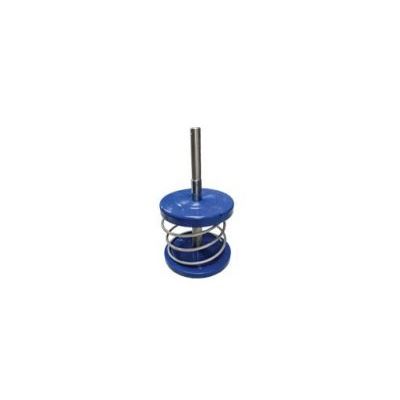

The Internal Drop Check (IDC) ensures quick positive shut-off whenever normal forward flow stops, this action will prevent reverse flow while reducing surge events. The IDC assembly is a spring assisted, silent, mechanical check option for standard Singer main valves and comes in sizes ranging from 2 in / 50 mm – 36 in / 900 mm. The IDC is a standard feature on the 106-PTC and 206-PTC series control valves and is available as on optional add-on for control valves larger than 2 in / 50 mm.

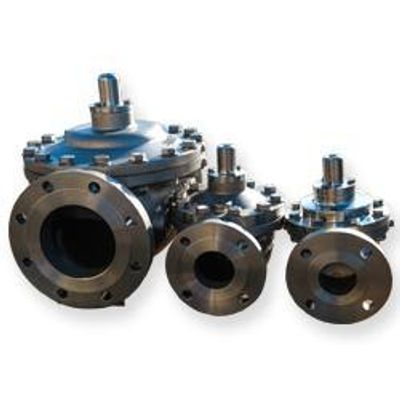

Yellow metal components such as Brass, Bronze and Copper may not be acceptable materials in harsh water conditions or in specific specifications for a variety of reasons. All or any portion of yellow metals in the internals of main valves may be upgraded to stainless steel. All or any portion of yellow metals on pilots or pilot tubing and fittings may also be upgraded to stainless steel.
