Smart Techno System India Pvt Ltd. products

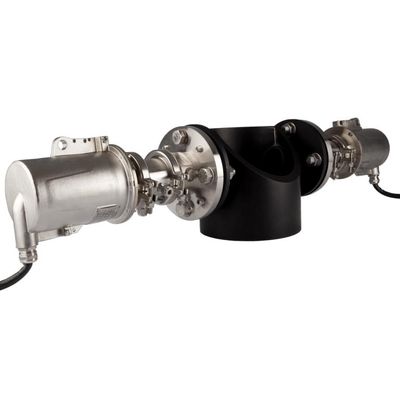

NEO Monitors LaserGas™ Q NO is using Tuneable Laser Absorption Spectroscopy (TLAS) i.e a non-contact optical measurement method employing solid-state laser sources. The sensor remains unaffected by contaminants corrosives and does not require regular maintenance. The absence of extractive conditioning systems further improves availability of the measurements and eliminates errors related to sample handling. The monitor is mounted directly onto flanges, which include purge gas connections and a tilting mechanism for easy alignment. Continuous purge flow prevents dust and other contamination from settling on the optical windows. Once power and data lines are connected, measurements are performed in real-time.

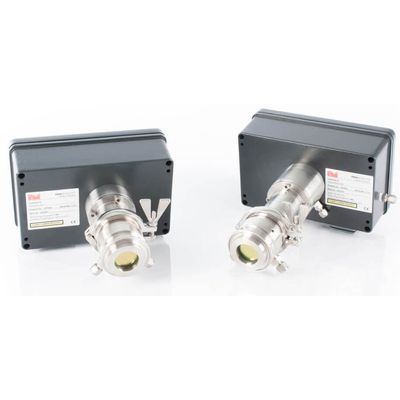

NEO Monitors LaserGas™ is using Tuneable Laser Absorption Spectroscopy (TLAS) i.e. a non-contact optical measurement method employing solid-state laser sources. Therefore, the sensor remains unaffected by contaminants and corrosives and does not require regular maintenance. The laser beam is coupled into a Herriott cell, where it is reflected multiple times between two spherical mirrors in order to enhance the analyser sensitivity. The MP monitor is a turn-key instrument. No other operations than connecting power, sample gas tubes and optional purge are required during installation. To avoid fouling of optical parts in the Multipass cell the cleanliness of the sample gas must be ensured. Filtering the sample gas in an appropriate extractive system may be required for some applications.

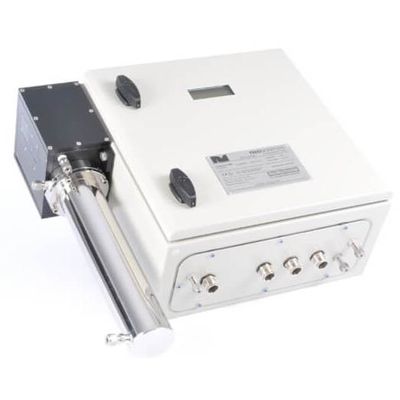

NEO Monitors LaserGas™ iQ2 analyzer is the first to measure up to four gases (O2, CO, CH4, H2O)* and temperature depending on configuration, which eliminates the need for multiple units for combustion analysis. The cutting-edge design and ground-breaking functionality, ensures that the instrument delivers unmatched reliability and durability. By providing an optional single flange solution, installation cost can be significantly reduced. Customers may replace existing analyzers where explosion risks or high maintenance issues are a huge concern.

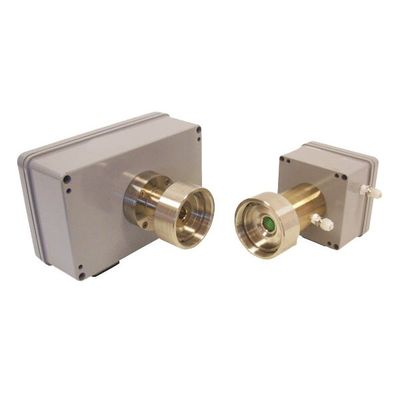

NEO Monitors LaserGas™ Q SO2 is using Tuneable Laser AbsorptionSpectroscopy (TLAS) i.e a non-contact optical measurement method employing solid-state laser sources. The sensor remains unaffected by contaminants corrosives and does not require regular maintenance. The absence of extractive conditioning systems further improves availability of the measurements and eliminates errors related to sample handling. The monitor is mounted directly onto flanges, which include purge gas connections and a tilting mechanism for easy alignment. Continuous purge flow prevents dust and other contamination from settling on the optical windows. Once power and data lines are connected, measurements are performed in real-time.

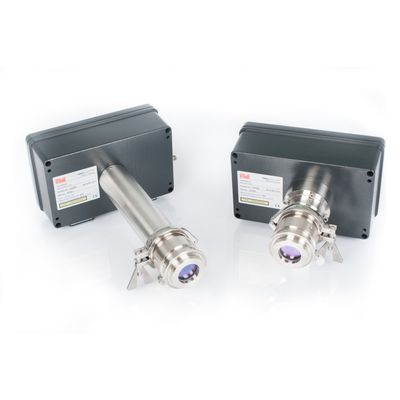

NEO Monitors LaserGas™ is using Tuneable Laser Absorption Spectroscopy (TLAS) i.e. a non-contact optical measurement method employing solid-state laser sources. Therefore, the sensor remains unaffected by contaminants and corrosives and does not require regular maintenance. The laser beam is coupled into a Herriott cell, where it is reflected multiple times between two spherical mirrors in order to enhance the analyser sensitivity. The MP monitor is a turn-key instrument. No other operations than connecting power, sample gas tubes and optional purge are required during installation. To avoid fouling of optical parts in the Multipass cell the cleanliness of the sample gas must be ensured. Filtering the sample gas in an appropriate extractive system may be required for some applications.

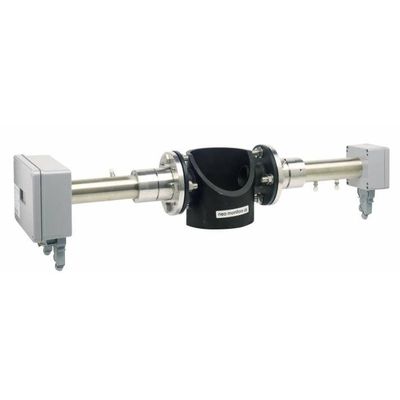

NEO Monitors new LaserGas™ III Open Path NH3 Gas Detector is specifically designed for service in hazardous areas. Based on our third generation LaserGas™ Technology, the entire instrument is built into compact flameproof enclosures making it fit for zone 1 applications. The LaserGas™ III NH3 OP consists of a transmitter and receiver unit that is mounted diametrically opposite each other at distances up to 100 meters. The laser light is sent from the transmitter to the receiver and any NH3 concentration changes along the optical path from the transmitter to the receiver are detected in real-time.
