Socrematic products

The Reither Venturi Scrubber by Socrematic is engineered to offer high efficiency in separating the finest dust aerosols and particulates. This advanced wet scrubber is equipped with an adjustable Venturi throat, ensuring constant pressure drop and separation efficiency regardless of flow rate fluctuations. Utilizing centrifugal mist eliminator technology, the scrubber effectively removes scrubbing liquid droplets from the gas flow. Notably, the Reither Venturi Scrubber excels at removing particles ranging from 0.3 to 50 µm, achieving removal efficiencies up to 99%. This technology is integral in handling flue gas particulates and aerosols, particularly in the sub-micron range, by enforcing contact between fine water droplets and particles. The system`s adaptability to various waste gas flow rates makes it suitable for numerous industrial applications requiring stringent air treatment solutions.

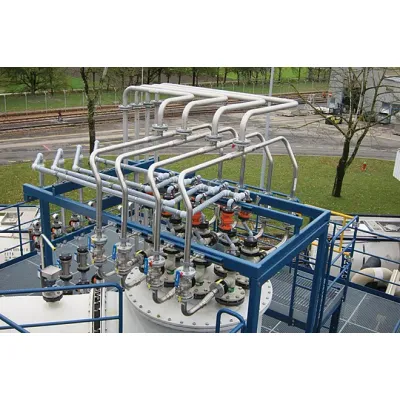

The Hybrid Reither Scrubber is an innovative air treatment solution designed to achieve high-performance fine dust and aerosol removal from industrial emissions. Developed in collaboration with Bayer, it integrates jet washer and venturi scrubber technologies to optimize dedusting processes. It features a fixed throat cross-section that ensures a consistent pressure drop, providing stable separation efficiency unaffected by flow rate changes. The hybrid compressed air-water nozzles enhance dust pre-agglomeration by atomizing the scrubbing liquid, which increases interaction with particulates. These nozzles also introduce a pulsating spray action, creating turbulence that promotes the capture of sub-micron dust via the venturi throat. Furthermore, the scrubber's versatility extends to functioning as a gas absorber, effectively managing both particulate and gaseous emissions. Its design facilitates maximum dust removal efficiency with minimal pressure loss, making it a proficient solution for environmental emission control.

The WATSPRAY scrubber is a high-performance, low-energy wet scrubber designed for efficient particulate control, combining de-dusting and demisting functionalities within a single system. It operates as a cross-flow spray scrubber, utilizing a large quantity of recirculated liquid sprayed perpendicular to the gas flow to effectively clean gases. As the gas ascends through a vertical column, the system sprays the liquid in flat circular layers over multiple stages. This design optimizes the scrubbing process, making it ideal for applications like dust removal from pulp dryers in the sugar industry and alfalfa dryers. The WATSPRAY® scrubber represents a cutting-edge solution with a minimal water and energy footprint, ensuring compliance with emission regulations while maintaining operational efficacy.

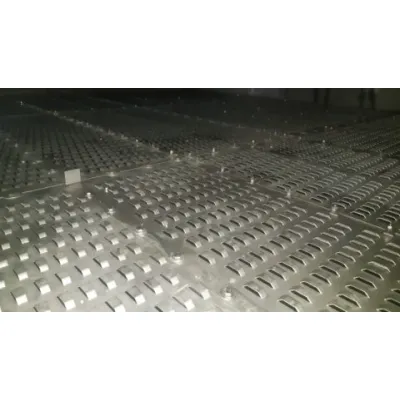

The WATTRAY tray scrubber, developed by SOCREMATIC, is an advanced air treatment solution specifically designed for dust removal applications in the fertilizer industry. This scrubber employs fixed valve trays that combine attributes of traditional trays with movable valves and sieve trays, ensuring robust resistance to soiling and superior separation efficiency. The WATTRAY scrubber is equipped with multiple layer WATMESH bone crimp demisters that enhance its demisting functionality. Particularly effective at removing urea dust particles, it operates as a vertical crosscurrent gas-liquid contactor. The device facilitates intimate contact between gas phases containing urea dust and an aqueous urea solution within the scrubber's multiple tray system. Gas enters from the bottom and moves upwards, while the UAS (Urea + Ammonium Sulphate) solution flows downward, enabling efficient dust removal from off-gas emissions, such as those from fluidized bed granulators.
