SoilStructure LIQUEFACTIONSPT, version 3 removes the pain of using calculators in analyzing potentially liquefiable sites. Spreadsheets are hard to preserve and it is time consuming to do all the columns and rows of calculations using in house tools. This liquefaction analysis software gives you pleasure and ease when factor of safety against liquefaction and seismic settlement. Liquefaction SPT 3.0 can perform the analysis in both the SI & English Units. We have users in all of the seismically active regions of the world. This geotechnical engineering software complies with requirements of Special Publication 117A, California Geological Survey, 2008.

SoilStructure LATERAL FOUNDATION, version 2 analyses laterally loaded piles. Spreadsheets are hard to preserve and it is time consuming to do all the stability and design checks using in house tools. This Lateral Foundation software calculates the capacity of a single driven pile or a single drilled pier/auger cast pile subjected to: Lateral (Shear) load and, bending moment, free head or fixed head.

SoilStructure SETTLEMENT ANALYSIS software is for the purpose of trying to quickly assess effects of soil consolidation on structures. After more than 3 months of research, review of more than 21 books and months of programming subroutines, SoilStructure Software is pleased to announce the release of SETTLEMENT ANALYSIS Software, New version 2.

Drilled Pier is the most complete caisson design software currently on the market. It takes an hour to be at a productive rate and has both the SI & English unit systems. It is the only software that gives you lateral pressure and lateral resistance profile with drilled pier depth. Up until now, you needed one program for axial capacity, another for lateral load analysis and yet a third program for reinforcement design. SoilStructure Drilled Pier Software performs all of the above three calculations. In addition, it computes torsional moment capacity, vertical settlement and lateral deflection. Others may also refer this to drilled shaft, bored pile or caisson. It also does negative skin friction and uplift analysis.

SoilStructure RAPID RETAIN, version 3 is a tool for designing Abutment Wall, Wing Wall, Cantilever Retaining Wall & Basement Wall.  It is time consuming to do all the stability and reinforcement design using in house tools. The program can also analyze Fence Property Line Walls.  It currently only uses the English unit system. Rapid Retan also complies with the requirements of ACI 318-14 and 2015 IBC.  NOTE: There is no yearly maintenance fee.

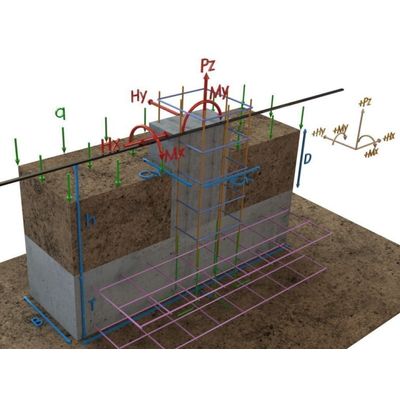

Complete Analysis & Design Of Shallow Foundations: Bearing Capacity, Stability Analysis & Reinforcement Design.SoilStructure SHALLOW FOUNDATION, version 3 removes the pain of using calculators in the analysis and design of footings. Spreadsheets are hard to preserve and it is time consuming to do all the stability and reinforcement design using in house tools. This spread footing software gives you pleasure and ease when analyzing shallow foundations.

RAPID RETAIN – GEOTECHNICAL & STRUCTURAL EFFECTS ON CANTILEVER/RESTRAINED RETAINING WALLS – V4. (2018 IBC/ACI 318-19) – Accurate & Saves you time. SoilStructure RAPID RETAIN, version 4 is a tool for designing Abutment Wall, Wing Wall, Cantilever Retaining Wall & Basement Wall.  It is time consuming to do all the stability and reinforcement design using in house tools. The program can also analyze Fence Property Line Walls.  Rapid Retain has plenty of Rebar from several Countries. We have no maintenance fee.  The software supports both the SI Units & the English Units.

GRADE BEAM ANALYSIS – Analyses Grade Beams that are not soil supported which are subjected to Lateral Shear, Vertical Moment, Lateral Moment, Torsion and Axial Forces. V1. (ACI 318-14). SoilStructure GRADE BEAM, version 1 simplifies the calculations of grade beams spanning drilled pier supports. Spreadsheets are hard to preserve and it is time consuming to do the shear, moment, axial and torsion design on prismatic beams using in house tools. This program currently supports the SI Units + English Units. This Grade Beam software can also do analysis of Spandrel beams.

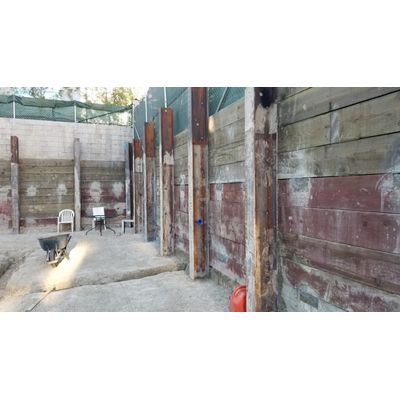

SoilStructure CANTILEVER SHORING, is a tool that analyses and designs cantilever shoring piles. We have added Australian Beams, British Beams and European Beams to the current North American (AISC) Beam Sections.  This embedded retaining wall software only requires basic geometry and soils data. SoilStructure Software is pleased to announce the release of  Cantilever Shoring Software.  Others may refer to these retaining walls as Embedded Retaining Walls, King Piles, Berliner Wall, Soldier Beam Wall or Soldier Pile Wall. This is a current software that was programmed in Winter 2016/2017, so it is has State of the Art user interface and is very intuitive.

COMPLETE DESIGN OF MULTILEVEL ANCHORED OR BRACED SHORING WALLS (SI Units & English Units) – Up to 105 ft (32 m) deep. SoilStructure ABS, is for analyzing and designing multilevel tied back, tie rod, raker or strut shoring wall design. Spreadsheets are hard to preserve and it is time consuming to do all the stability and design checks using in house tools. This anchored or braced shoring wall software gives you pleasure and ease when analyzing temporary retaining structures.  When excavation cuts exceed 17 feet, the required section modulus of the soldier beam becomes increasingly large.  It is therefore more economical to use an anchored or braced soldier beam system instead of Cantilever Shoring Design.
