Solid Applied Technologies Ltd. (SOLIDAT) products

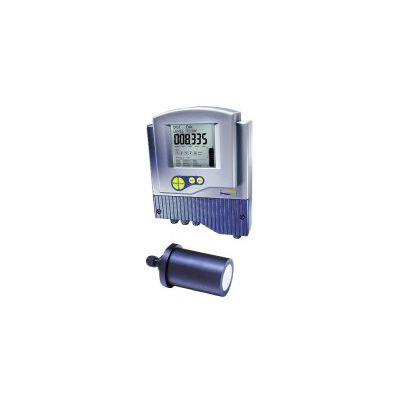

SmartScan25 is a two-part ultrasonic level sensor for long range applications. The standard model measures up to 25 meters (80`) for liquid targets and an extended range model is capable of reaching 40 meters (130`) range. SmartScan25 is also capable of measuring solids such as grains, poultry foods and some industrial primaries.

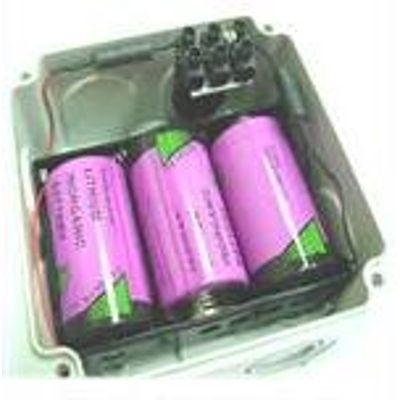

GaugerBAT and PTS are accessories for: Low-power mode operation of GaugerGSM. ATEX/IECEx Intrinisc Safe operation of GaugerGSM in hazardous explosive areas

SmartScan50 is a two-part, 4-wire ultrasonic level sensor for continuous level measurement in challenging applications. The sensor measures up to 12 meters (39`) with liquid targets. SmartScan50 is a perfect solution for pump control application, supporting five independent relays.

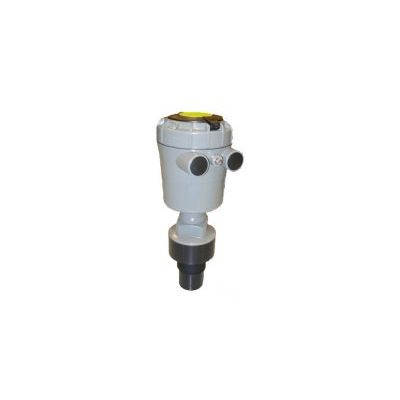

Gauger420 is a rich featured ultrasonic level sensor and level transmitter for liquid and bulk applications. A 2-wire, loop-power sensor featuring 4-20mA, HART and RS485. Gauger420 can track liquid targets rising as rapid as 10 meters per minute (33`/min)and exhibits an extremely short dead zone of 15cm (6`).  Gauger420 can be applied to Level, Distance, Volume and Open Channel Flow (OCF) applications (flow and totalization). An EX Intrinsic Safe (IS) model is available (certified ATEX and IECEX). Gauger420 features a simple USB interface for PC configuration, monitoring, debugging and firmware upgrades.

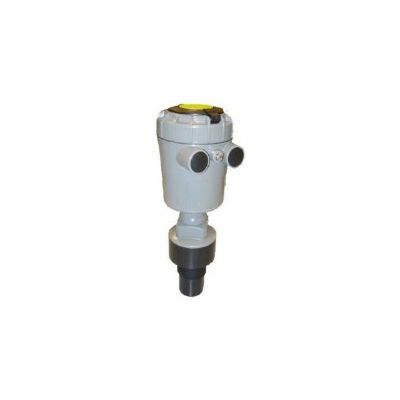

Gauger485 is a level sensor solution for applications interfacing external devices such as a radio modem, GPS receiver, multiple relay controller, WiFi converter, computing devices and many more. Gauger485 level sensors can also communicate with each other or with GaugerGSM for applications such as differential level measurement or adjacent multiple tank level measurements.  The use of serial character-based output is simple, reliable and more accurate than 4-20 analog interface. When viewed directly on a PC or laptop, no custom software is required. Data may be viewed by standard hyper-terminal applications.

GaugerGPS is a solution for sensing-in-motion. A typical application is the monitoring of diesel tanks on vehicular tankers. In this application GaugerGPS transmits periodic reports including LEVEL / VOLUME of Diesel (in liters or Gallons), LOCATION of tanker, and in addition: temperature, power supply status and cellular signal strength. GaugerGPS also transmits immediate alerts for specific predefined events.

GaugerGSM is a sensor solution for remote level monitoring applications such as underground city sewers, unattended diesel tanks at remote sites, rivers, waterways / water reservoirs, irrigation channels and grain silo farms. The sensor measures and communicates periodic data from each site for long term and on-line monitoring. The sensor also transmits immediate alerts for events such as river flood alert, sewer overflow conditions, empty or full diesel tank. Alerts are also available for low power supply in sewer applications, excessive temperature at silo tanks and more.

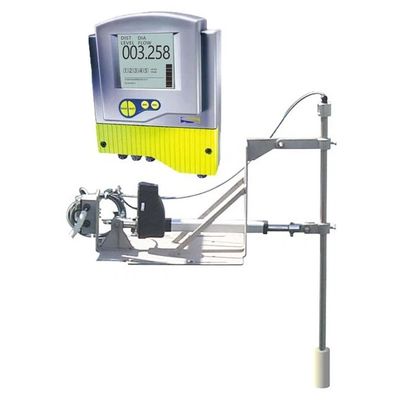

The SonarSilt sludge interface instrument emits acoustic pulses through a sensor to the interface at the bottom of the clarifier, or to the flocculent medium layer at the bottom of the tank. The sonar signal is reflected to the sonar sensor through the interface. The SonarSilt sludge interface instrument emits acoustic pulses through a sensor to the interface at the bottom of the clarifier, or to the flocculent medium layer at the bottom of the tank. The sonar signal is reflected to the sonar sensor through the interface. After the return signal is processed and temperature compensated by the transmitter, a distance reading is obtained, and a corresponding interface or floc medium layer height output is given.

If you're looking for a reliable and efficient device to measure the density of sludge, then a sludge density meter is the perfect solution. A sludge density meter is a high-precision device designed to measure the density of sludge accurately, making it an essential tool for Sewage treatment plant, Food production, Water treatment, Mining, power plant, and other industrial applications. SonarSilt sludge density meter emits a sonic pulse through the sensor to the interface at the bottom of the clarifier, or a flocculating medium layer at the bottom of the tank. The sonar signal is reflected from the interface to the sonar sensor. After the transmitter processes the return signal and compensates for the temperature, a distance reading is obtained, and a corresponding boundary layer or flocculating medium height output is given.

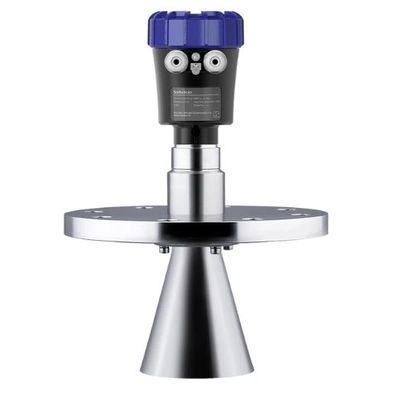

SLDL5216 low-frequency horn type radar level meter is an advanced radar-type liquid level/material level/material level measuring instrument with a measuring distance of up to 70 meters. The pulse radar level meter can be used for level measurement of storage tanks, intermediate buffer tanks or process containers and various silos, and outputs 4...20mA analog signals.
