Solid State Devices, Inc. (SSDI) products

Hyper Fast Recovery: 35nsec Maximum. Low Forward Voltage Drop. Low Reverse Leakage Current. Single Chip Construction. Hermetically Sealed Package. Metalurgically Bonded Construction. TX, TXV, and S-Level Screening Available.

Extremely Low Forward Voltage Drop. High Surge Capability. Hermetically Sealed. Low Profile Surface Mount Package Available. TX, TXV, and Space Level Screening Available. Extra Inspection per MIL-STD-750, Method 2076 Available.

Average Output Current 50 Amps. PIV 50 Volts. Maximum Thermal Resistance 0.5°C/Watt. 500 Amp Surge Capability. Hermetically Sealed. Choice of Three Terminal Configurations. For Ordering Information, Price, and Availability Contact Factory. SSDI introduces a complete series of Doublers and Center Tap Rectifier Circuits. Designed in cast aluminum cases to provide maximum thermal conductivity and simple installation.

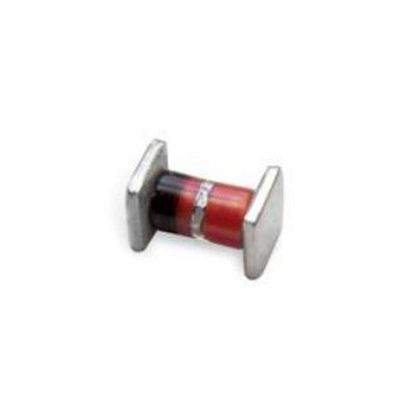

Hermetically Sealed in Glass. Rated at 0.5 W. Category III Metallurgical Bond. Available in Axial and Square Tab Surface Mount (SMS) version. Available to TX, TXV, and Space Levels. Zener Voltage 5%, 2% or 1% Tolerance. Replacement for 1N6309 thru 1N6333.
