SSDI - Model 2R3S -8 A, 20 V Hyperfast Recovery Rectifier
Hyper Fast Recovery: 35nsec Maximum. Low Forward Voltage Drop. Low Reverse Leakage Current. Single Chip Construction. Hermetically Sealed Package. Metalurgically Bonded Construction. TX, TXV, and S-Level Screening Available.
- Vr [V] : 20
- Io [A] : 8.00
- trr [nsec] : 35
- Ifsm [A] : 200
- Vf max [V] : 0.90
- Ir max [µA] : 100.00

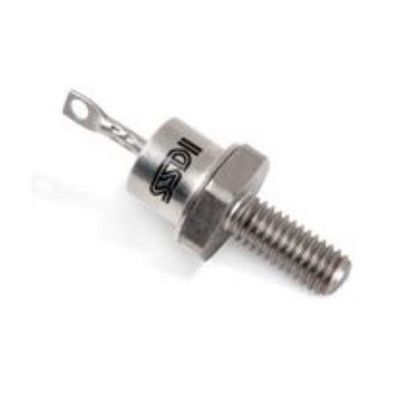

- Package : DO-4
- Data Sheet : RC0029D.PDF
