Spectronik Pte. Ltd. products

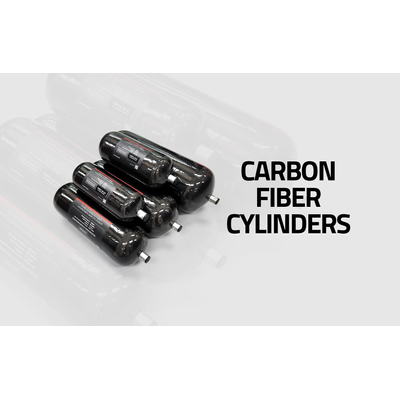

Type III (Aluminum alloy liner with carbon fiber composite overwrap) Hydrogen gas cylinders designed for UAV applications. These cylinders are rated for 350bar nominal working pressure with a burst safety factor of at least 2x. Their compact and lightweight design allows for Hydrogen storage efficiency up to 7% wt. Available in a range of water volume from 3.5L to 20L.

The Miniature Gas Pressure Regulator is a compact and lightweight device capable of taking in 350bar gas inlet and delivering 0.5bar outlet suitable for use in typical Hydrogen fuel cell applications. An integrated gas pressure sensor allows user to accurately monitor the remaining fuel pressure in the gas cylinder in real time. Refueling kit (2m stainless steel hose and adapter) is also included in the package for ease of refilling from industrial gas tank source.
