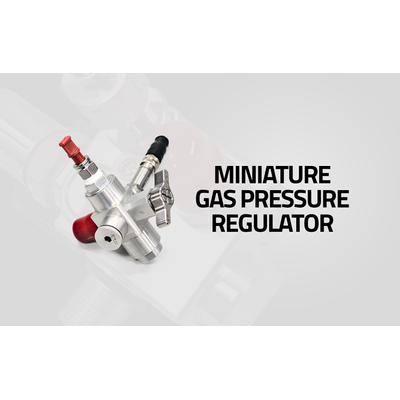

Spectronik - Miniature Gas Pressure Regulator
The Miniature Gas Pressure Regulator is a compact and lightweight device capable of taking in 350bar gas inlet and delivering 0.5bar outlet suitable for use in typical Hydrogen fuel cell applications. An integrated gas pressure sensor allows user to accurately monitor the remaining fuel pressure in the gas cylinder in real time. Refueling kit (2m stainless steel hose and adapter) is also included in the package for ease of refilling from industrial gas tank source.
Most popular related searches
gas pressure regulator
pressure regulator
pressure sensor
gas cylinder storage
pressure transducer
gas sensor
industrial gas
integrity monitoring
zero gas
gasket sealing
- Gas media: Hydrogen
- Max inlet pressure: 350bar
- Min inlet pressure: 10bar
- Gas outlet pressure (@ rated flow): 0.45-0.75bar (factory set during order)
- Max outlet pressure (@ zero flow): Gas outlet pressure + 0.3bar
- Rated flow-rate: 40 SLPM
- Operating temperature: [-20,85]°C
- Operating lifetime: >10,000 cycles
- Outer body material: Al 2A14-T6
- Core internal material: SS 316/H62/TC4
- Core sealing material: PTFE
- Sealing gasket material: NBR
- Dimension: 75 x 58 x 85 mm
- Weight: <270g
- Connection to gas cylinder: M18 x 1.5
- Integrated gas pressure sensor: Thin Film Pressure Transducer CS-PT831C
- Connection to pressure sensor: NPT 1/8
- Connection to refueling hose: M12 x 1.25
- Gas outlet connector: NPT 1/4 to PU 8mm
Note: For detailed Specifications, download the full datasheet below.
- Miniature gas pressure regulator
- Gas pressure transducer
- Refueling kit
- Spare o-rings
